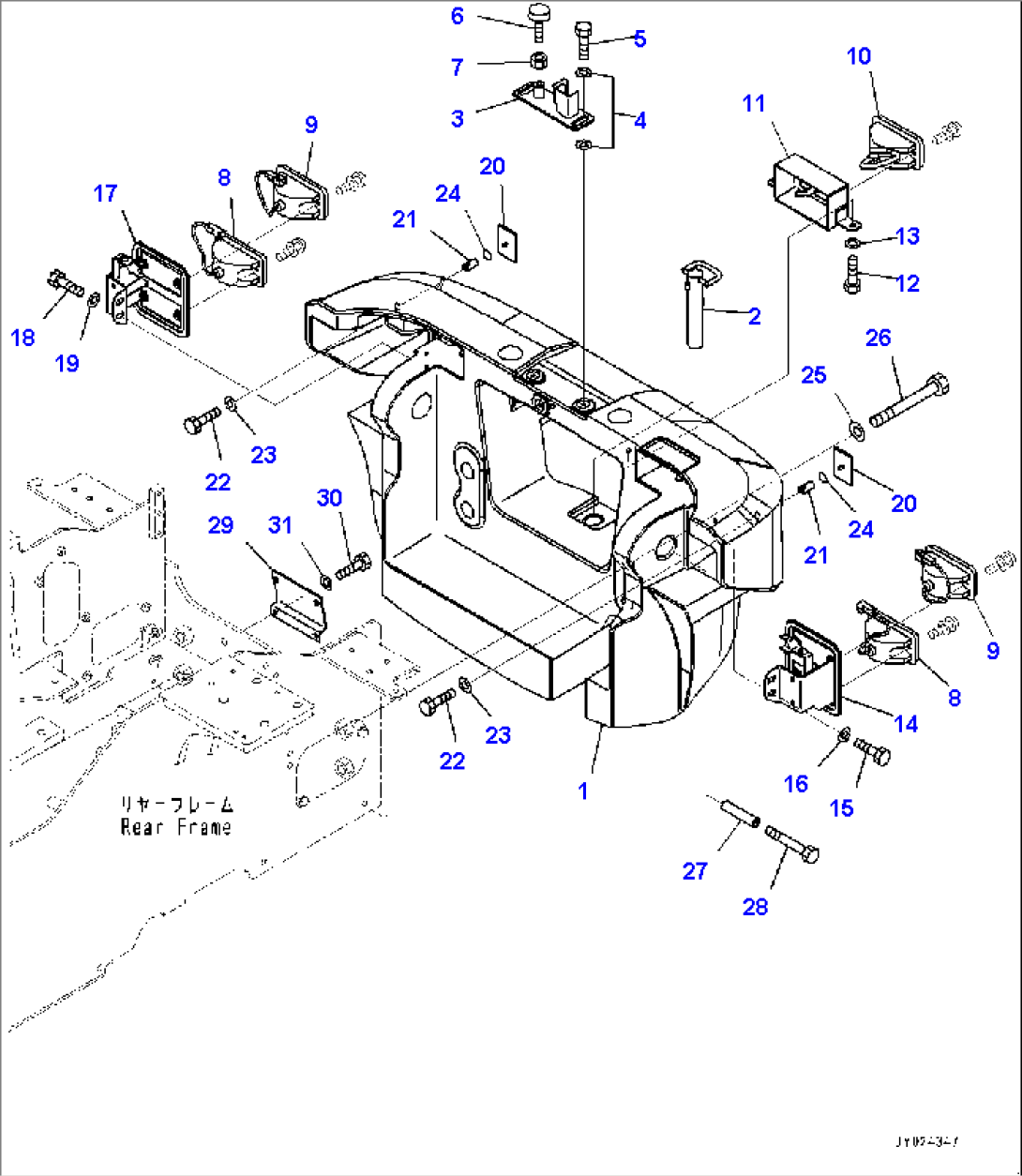

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-46-56112 | Weight | 63201- | |
| 2 | 362-46-56141 | Pin | 60001- | |
| 3 | 42A-54-51234 | Bracket | 63201- | |
| 4 | 203-54-56970 | Washer | 63201- | |
| 5 | 01010-81020 | Bolt | 63201- | |
| 6 | 20Y-54-11611 | Stopper | 63201- | |
| 7 | 01580-11008 | Nut | 63201- | |
| 8 | 42A-06-56131 | Lamp Assembly, Stop | 63201- | |
| 42A-06-56310 | Lens, Red | 63201- | ||
| 42A-06-56340 | Bulb, 21/5watt | 63201- | ||
| 9 | 42A-06-56140 | Lamp Assembly, Turn Signal | 63201- | |
| 42A-06-56320 | Lens, Amber | 63201- | ||
| 42A-06-56350 | Bulb, 27watt | 63201- | ||
| 10 | 42A-06-56150 | Lamp Assembly, Back-up | 63201- | |
| 10 | Connector | 63201- | ||
| 42A-06-56330 | Lens, Clear | 63201- | ||
| 42A-06-56360 | Bulb, 21watt | 63201- | ||
| 11 | 42A-06-56222 | Bracket | 63201- | |
| 12 | 01010-81020 | Bolt | 63201- | |
| 13 | 01643-31032 | Washer | 63201- | |
| 14 | 42A-06-56271 | Bracket | 63201- | |
| 15 | 01010-81020 | Bolt | 63201- | |
| 16 | 01643-31032 | Washer | 63201- | |
| 17 | 42A-06-56281 | Bracket | 63201- | |
| 18 | 01010-81020 | Bolt | 63201- | |
| 19 | 01643-31032 | Washer | 63201- | |
| 20 | 424-06-43271 | Reflector | 63201- | |
| 21 | 42A-06-56230 | Spacer | 63201- | |
| 22 | 01010-80620 | Bolt | 63201- | |
| 23 | 21W-54-32410 | Washer | 63201- | |
| 24 | 07000-12011 | O-ring | 63201- | |
| 25 | 01643-32460 | Washer | 60001- | |
| 26 | 234-977-1750 | Bolt | 60001- | |
| 27 | 42A-46-56140 | Collar | 60001- | |
| 28 | 01011-81215 | Bolt | 60001- | |
| 29 | 363-54-31370 | Plate | 60001- | |
| 30 | 01010-80616 | Bolt | 60001- | |
| 31 | 01643-30623 | Washer | 60001- |
