| Item | Part No. | Part Name | Qty | Serial No. |
| (154-15-00017) | TRANSMISSION ASS'Y | 2530- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2251 TO 2263A. | ||||

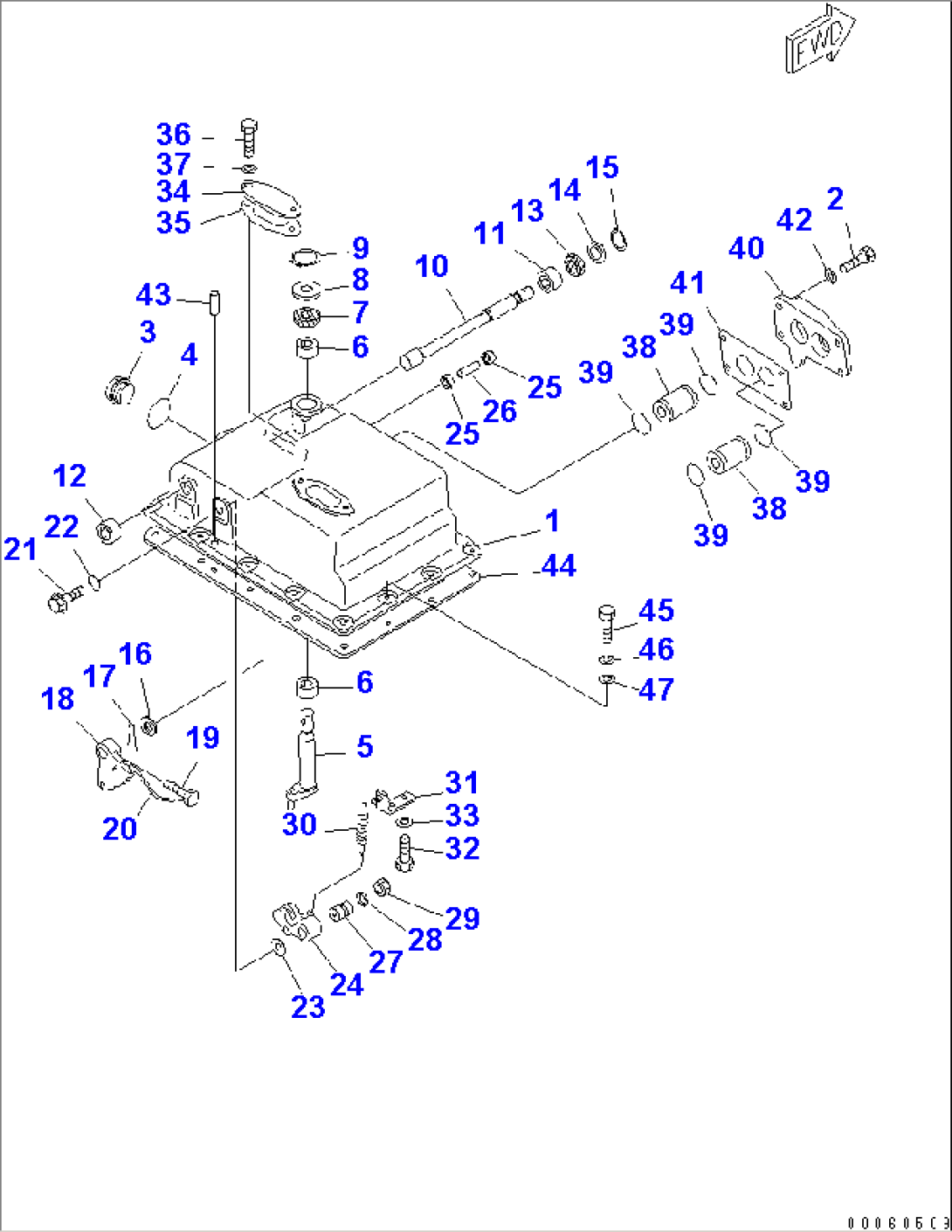

| (155-15-00392) | COVER ASS'Y | 2347- | ||
| 1 | 175-15-45512 | COVER | 2530- | |
| 2 | 01010-81030 | BOLT | 2530- | |
| 3 | 07040-15223 | PLUG | 2001- | |
| 4 | 07002-05234 | O-RING (KIT) | 2001- | |
| 5 | 175-15-45560 | LEVER | 2001- | |
| 6 | 06120-02016 | BEARING | 2001- | |
| 7 | 144-15-29110 | SEAL,OIL (KIT) | 2001- | |
| 8 | 175-15-45570 | WASHER | 2001- | |
| 9 | 04064-01812 | RING,SNAP | .- | |
| 10 | 175-15-45610 | SHAFT | 2001- | |
| 11 | 06120-02016 | BEARING | 2001- | |
| 12 | 06121-02016 | BEARING | 2001- | |
| 13 | 144-15-29110 | SEAL,OIL (KIT) | 2001- | |
| 14 | 175-15-45570 | WASHER | 2001- | |
| 15 | 04064-01812 | RING,SNAP | .- | |
| 16 | 175-15-45620 | STOPPER | 2001- | |
| 17 | 04050-13040 | PIN,COTTER (KIT) | 2001- | |
| 18 | 175-15-45630 | LEVER | 2001- | |
| 19 | 125-15-11530 | BOLT | 2001- | |
| 20 | 04059-01010 | WIRE (KIT) | 2001- | |
| 21 | 175-15-45650 | BOLT | 2001- | |
| 22 | 07002-01223 | O-RING (KIT) | 2001- | |
| 23 | 175-15-45660 | WASHER | 2001- | |
| 24 | 175-15-45690 | LEVER | 2001- | |
| 25 | 144-15-29121 | BEARING | 2530- | |
| 26 | 144-15-25690 | PIN | 2001- | |
| 27 | 175-15-45670 | SLEEVE | 2001- | |
| 28 | 01643-31032 | WASHER | .- | |
| 29 | 01580-11008 | NUT | 2001- | |
| 30 | 175-15-45710 | SPRING | 2001- | |
| 31 | 175-15-45780 | BRACKET | 2001- | |
| 32 | 01010-81020 | BOLT | 2001- | |
| 33 | 01643-31032 | WASHER | .- | |
| 34 | 175-15-45750 | PLATE | 2001- | |
| 35 | 175-15-45761 | GASKET (KIT) | 2001- | |
| 36 | 01010-81020 | BOLT | 2001- | |
| 37 | 01643-31032 | WASHER | .- | |
| 38 | 175-15-45550 | SLEEVE | 2001- | |
| 39 | 07000-73028 | O-RING (KIT) | 2001- | |
| 40 | 175-15-45530 | COVER | 2001- | |
| 41 | 154-15-45540 | GASKET (KIT) | 2530- | |
| 42 | 01643-31032 | WASHER,SPRING | .- | |
| 43 | 04020-01024 | PIN,DOWEL | 2347- | |
| 44 | 175-15-45522 | GASKET (KIT) | 2530- | |
| 45 | 01010-81025 | BOLT | 2001- | |
| 46 | 01602-21030 | WASHER,SPRING | 2001- | |
| 47 | 01640-21016 | WASHER | 2001- |
