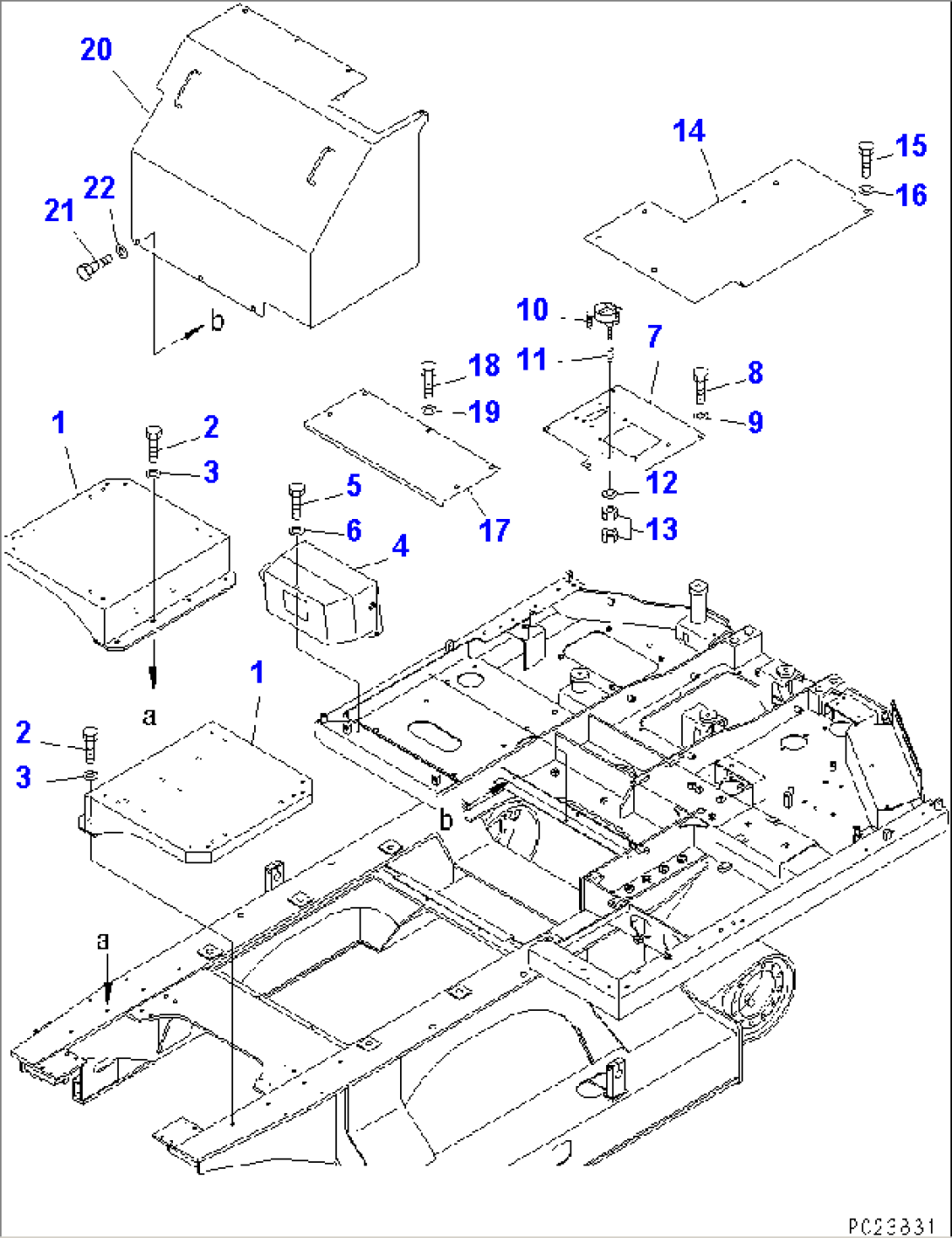

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8206-54-3171 | FLOOR | 1002-1100 | |
| 2 | 01010-51030 | BOLT | 1002-@ | |
| 3 | 01643-31032 | WASHER | 1002-@ | |
| 4 | 8206-54-3281 | COVER | 1002-@ | |
| 5 | 01010-51025 | BOLT | 1002-@ | |
| 6 | 01643-31032 | WASHER | 1002-@ | |
| 7 | 8206-54-3231 | COVER | 1002-@ | |
| 8 | 01010-51025 | BOLT | 1002-@ | |
| 9 | 203-54-56970 | WASHER | 1002-@ | |
| 10 | 23S-05-35841 | LEVEL ASS'Y | 1002-@ | |
| 11 | 23S-05-25880 | SPRING | 1002-@ | |
| 12 | 01643-30623 | WASHER | 1002-@ | |
| 13 | 01580-10605 | NUT | 1002-@ | |
| 14 | 8206-54-3241 | COVER | 1002-1100 | |
| 15 | 01010-51025 | BOLT | 1002-@ | |
| 16 | 203-54-56970 | WASHER | 1002-@ | |
| 17 | 8206-54-3221 | COVER | 1002-@ | |
| 18 | 01010-51025 | BOLT | 1002-@ | |
| 19 | 203-54-56970 | WASHER | 1002-@ | |
| 20 | 8206-54-3211 | COVER | 1002-1100 | |
| 21 | 01010-51025 | BOLT | 1002-1100 | |
| 22 | 203-54-56970 | WASHER | 1002-1100 |
