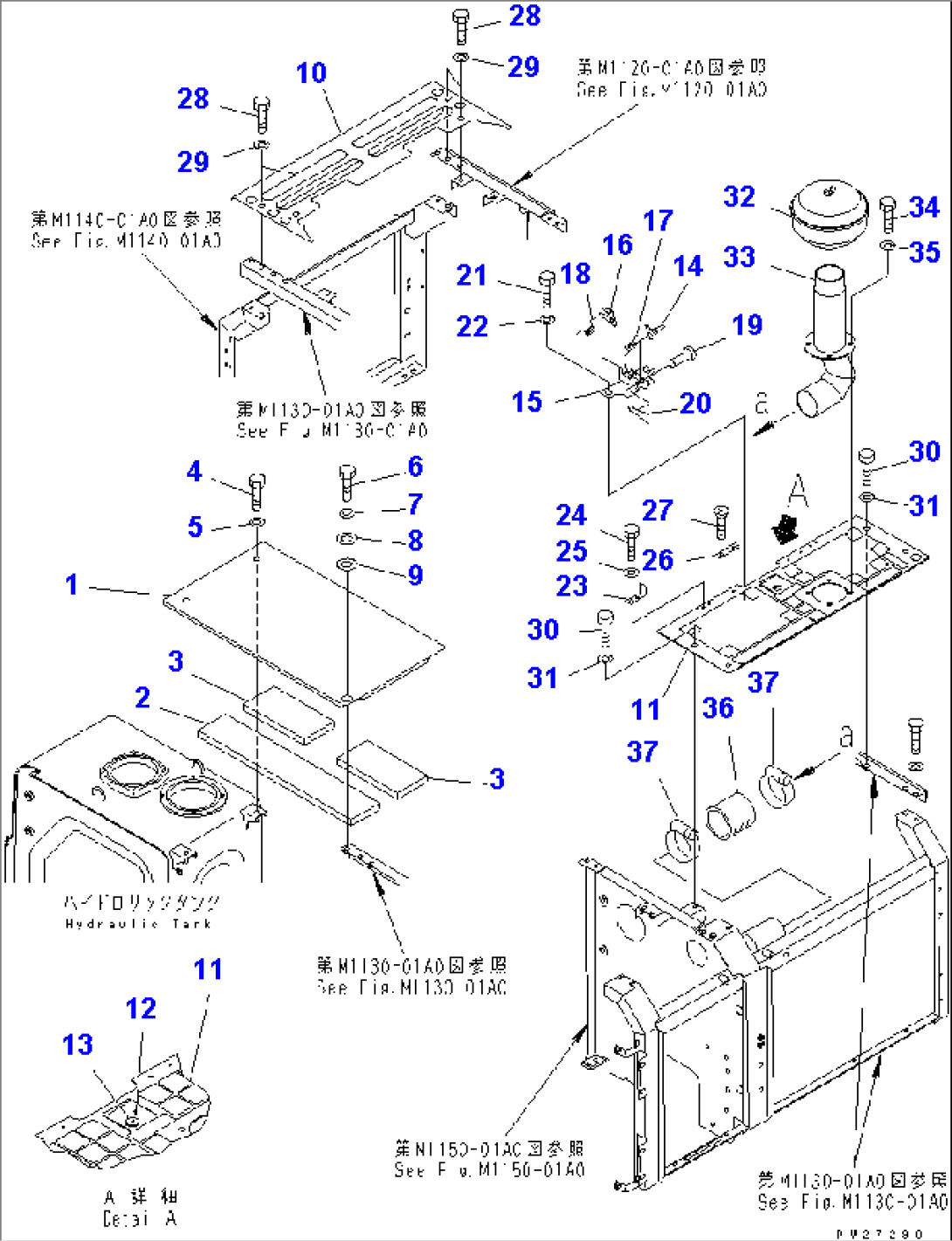

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-54-25481 | COVER | 1006- | |
| 2 | 20Y-54-25720 | SHEET | 1006- | |
| 3 | 20Y-54-25730 | SHEET | 1006- | |
| 4 | 01010-81230 | BOLT | 1006- | |
| 5 | 175-54-34170 | WASHER | 1006- | |
| 6 | 01010-81230 | BOLT | 1006- | |
| 7 | 01643-31232 | WASHER | 1006- | |
| 8 | 20Y-54-19930 | COLLAR | 1006- | |
| 9 | 20Y-54-19920 | PLATE | 1006- | |
| 10 | 20Y-54-25451 | COVER | 1006- | |
| 8255-54-1460 | COVER ASS'Y | 1006- | ||
| 11 | 8255-54-1470 | COVER ASS'Y | 1006- | |
| 12 | 20Y-54-25850 | LOCK | 1006- | |
| 13 | 20Y-54-27540 | LOCK ASS'Y | 1006- | |
| 20Y-54-27502 | LOCK ASS'Y | 1006- | ||
| 14 | 20Y-54-27511 | PLATE | 1006- | |
| 15 | 20Y-54-27522 | BRACKET | 1006- | |
| 16 | 21K-54-26340 | LEVER | 1006- | |
| 17 | 21K-54-26351 | SPRING | 1006- | |
| 18 | 21K-54-26360 | SPRING | 1006- | |
| 19 | 04205-11038 | PIN | 1006- | |
| 20 | 04050-13020 | PIN | 1006- | |
| 21 | 01010-81025 | BOLT | 1006- | |
| 22 | 01643-31032 | WASHER | 1006- | |
| 23 | 20Y-54-27182 | BRACKET | 1006- | |
| 24 | 01010-81025 | BOLT | 1006- | |
| 25 | 01643-31032 | WASHER | 1006- | |
| 26 | 205-54-68440 | PLATE | 1006- | |
| 27 | 01224-40616 | SCREW | 1006- | |
| 28 | 01010-81230 | BOLT | 1006- | |
| 29 | 175-54-34170 | WASHER | 1006- | |
| 30 | 01010-81230 | BOLT | 1006- | |
| 31 | 01643-31232 | WASHER | 1006- | |
| 32 | 600-181-2630 | PRE-CLEANER ASS'Y | 1006- | |
| 33 | 8255-01-1110 | AIR DUCT | 1006- | |
| 34 | 01010-81020 | BOLT | 1006- | |
| 35 | 01643-31032 | WASHER | 1006- | |
| 36 | 07260-29925 | HOSE | 1006- | |
| 37 | 07281-01279 | CLAMP | 1006- |
