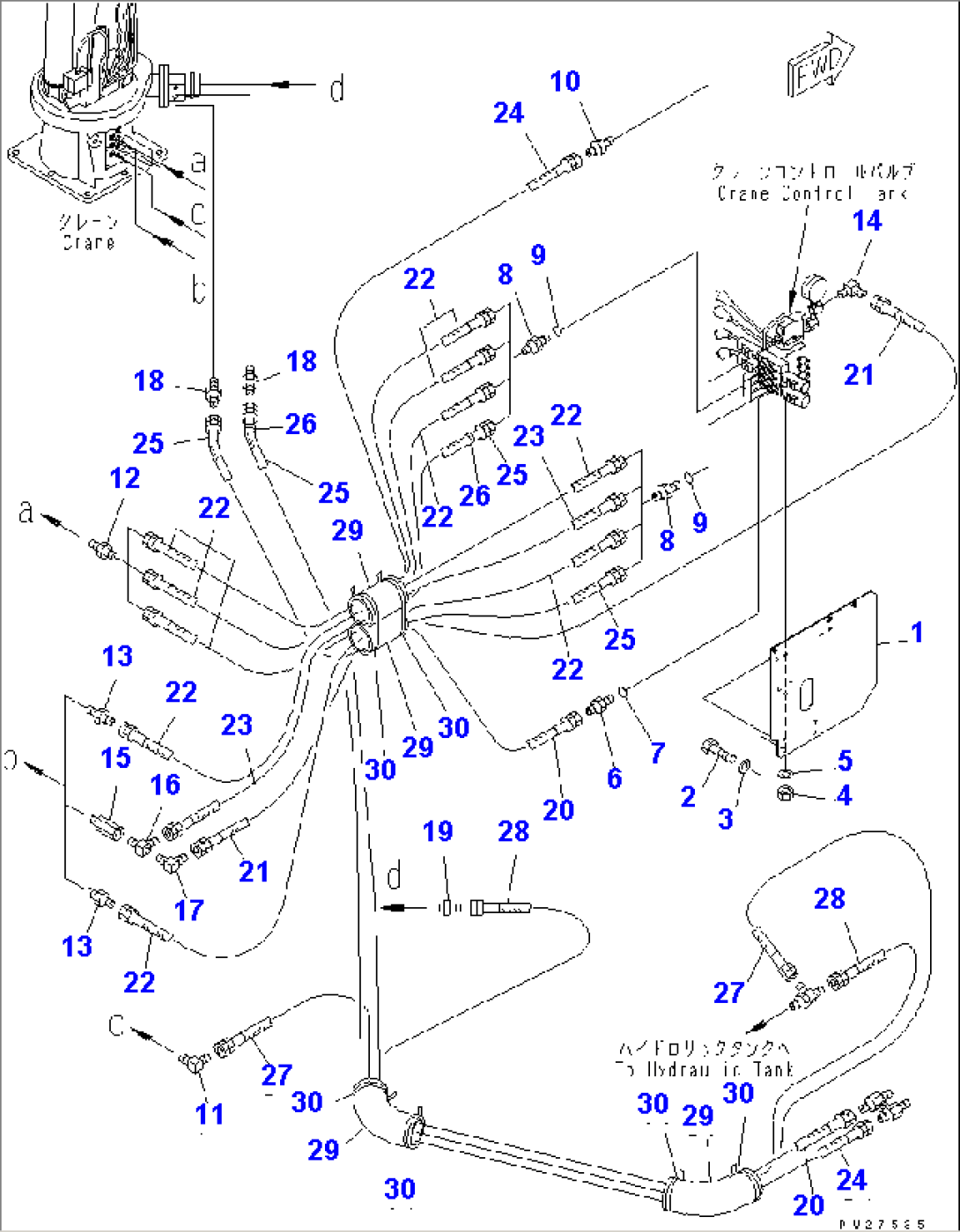

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8255-75-1122 | BRACKET | 1006- | |
| 2 | 01010-81225 | BOLT | 1006- | |
| 3 | 01643-31232 | WASHER | 1006- | |
| 4 | 01582-11008 | NUT | 1006- | |
| 5 | 01643-31032 | WASHER | 1006- | |
| 6 | 419-15-14710 | NIPPLE | 1006- | |
| 7 | 07000-12018 | O-RING | 1006- | |
| 8 | 23S-61-24110 | UNION | 1006- | |
| 9 | 07000-12014 | O-RING | 1006- | |
| 10 | 23S-44-11831 | NIPPLE | 1006- | |
| 11 | 175-79-82550 | ELBOW | 1006- | |
| 12 | 07238-10315 | CONNECTOR | 1006- | |
| 13 | 21T-62-77410 | CONNECTOR | 1006- | |
| 14 | 175-79-82550 | ELBOW | 1006- | |
| 15 | 8255-62-1630 | NIPPLE | 1006- | |
| 16 | 8255-62-1360 | ELBOW | 1006- | |
| 17 | 175-79-82550 | ELBOW | 1006- | |
| 18 | 07238-10315 | CONNECTOR | 1006- | |
| 19 | 07238-10210 | CONNECTOR | 1006- | |
| 20 | 07123-00322 | HOSE | 1006- | |
| 21 | 8255-62-1340 | HOSE | 1006- | |
| 22 | 8255-62-1372 | HOSE | 1006- | |
| 23 | 07123-00312 | HOSE | 1006- | |
| 24 | 8255-62-1391 | HOSE | 1006- | |
| 25 | 07123-00314 | HOSE | 1006- | |
| 26 | 20Y-62-22790 | BAND¤ RED | 1006- | |
| 27 | 07102-20233 | HOSE | 1006- | |
| 28 | 07102-20232 | HOSE | 1006- | |
| 29 | 203-62-52210 | RUBBER | 1006- | |
| 30 | 08034-00536 | BAND | 1006- |
