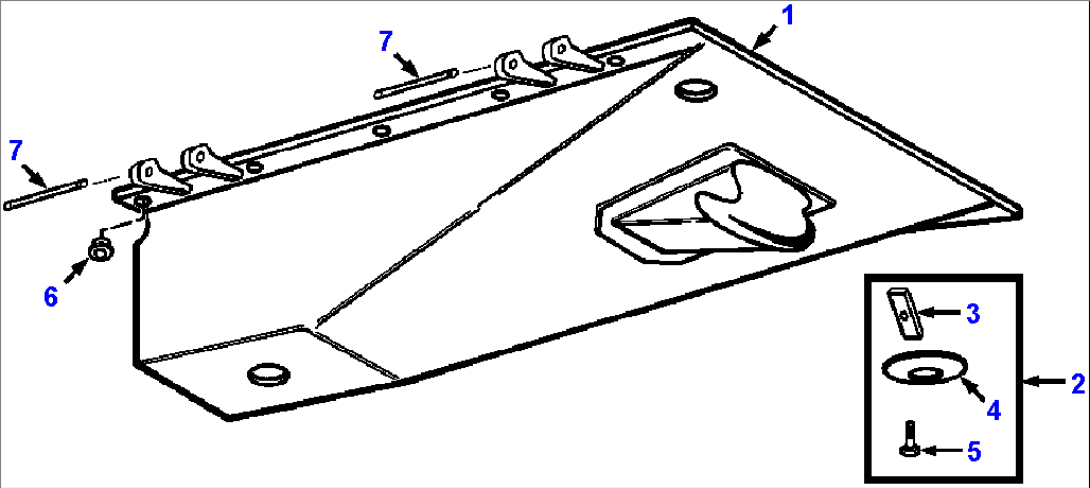

| Item | Part No. | Part Name | Qty | Serial No. |
| (1305 127 H91) | CRANKCASE GUARD | |||
| 1 | 1286 187 H91 | GUARD, CRANKCASE | ||
| 27 968 R1 | BOLT, MOUNTING - 1NCx2-1/4 | |||
| 2 | 67 574 DC | COVER ASSY, ACCESS | ||
| 3 | 650 374 C1 | BAR, ACCESS COVER | ||
| 4 | (NSS) | COVER, ACCESS | ||
| 5 | 24 862 R1 | BOLT, MOUNTING - 1/2NCx1-1/2 | ||
| 25 536 R1 | WASHER, FLAT - 1/2 | |||
| 6 | 617 931 C2 | SPACER | ||
| 7 | 1286 191 H1 | PIN, HINGE | ||
| 103 397 | PIN, COTTER - 5/32x1-1/4 | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
