| Item | Part No. | Part Name | Qty | Serial No. |

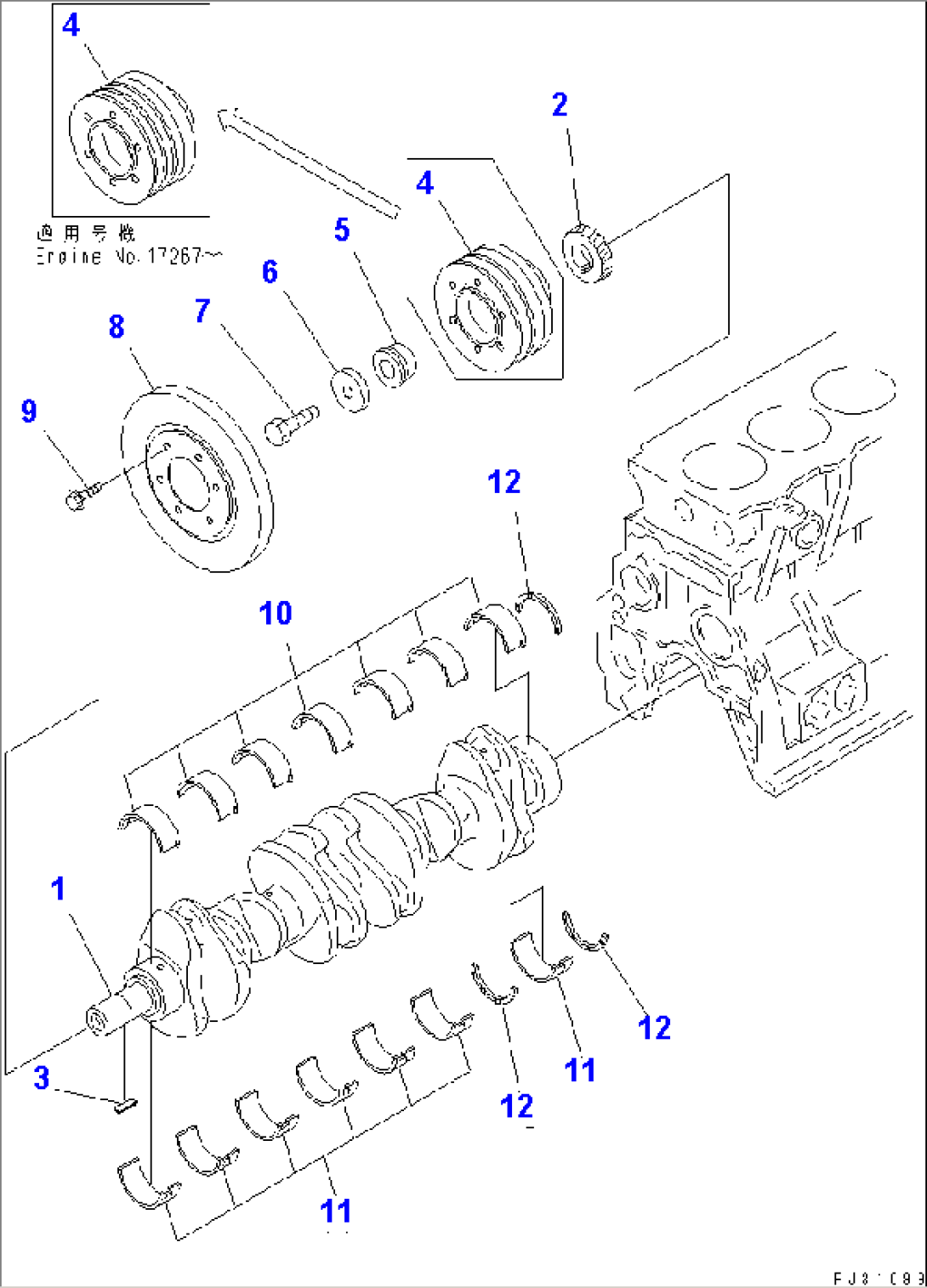

| 6206-31-1100 | CRANKSHAFT ASS'Y | 10001- | ||
| 1 | \6\ | CRANKSHAFT | 10001- | |
| 2 | 6204-31-1220 | GEAR,CRANKSHAFT | 10001- | |
| 3 | 6206-31-1530 | KEY | 10001- | |
| 4 | 6206-31-1430 | PULLEY¤NON HARDENING,CRANK | 17267- | |
| \0\6206-31-1420 | PULLEY¤NON HARDENING,CRANK | 10001-17266 | ||
| 5 | 6136-31-1420 | COLLAR,TAPER | 10001- | |
| 6 | 6136-31-1431 | PLATE | 10001- | |
| 7 | 01050-31845 | BOLT | 36476- | |
| \1\6110-33-1411 | BOLT,NYLOCK | 10001-36475 | ||
| 8 | 6206-31-8100 | DAMPER | 10001- | |
| 9 | 01435-21016 | BOLT | 10001- | |
| STANDARD | ||||
| 6204-21-8100 | MAIN METAL ASS'Y | 10001- | ||
| 10 | \6\ | METAL,UPPER | 10001- | |
| 11 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 0.25MM | ||||
| 6204-29-8100 | MAIN METAL ASS'Y | 10001- | ||
| 10 | \6\ | METAL,UPPER | 10001- | |
| 11 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 0.50MM | ||||
| 6204-28-8100 | MAIN METAL ASS'Y | 10001- | ||
| 10 | \6\ | METAL,UPPER | 10001- | |
| 11 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 0.75MM | ||||
| 6204-27-8100 | MAIN METAL ASS'Y | 10001- | ||
| 10 | \6\ | METAL,UPPER | 10001- | |
| 11 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 1.00MM | ||||
| 6204-26-8100 | MAIN METAL ASS'Y | 10001- | ||
| 10 | \6\ | METAL,UPPER | 10001- | |
| 11 | \6\ | METAL,LOWER | 10001- | |
| STANDARD | ||||
| 12 | 6204-21-8500 | THRUST METAL ASS'Y | 10001- | |
| \6\ | METAL | 10001- | ||
| OVERSIZE 0.25MM | ||||
| 12 | 6204-29-8500 | THRUST METAL ASS'Y | 10001- | |
| \6\ | METAL | 10001- | ||
| OVERSIZE 0.50MM | ||||
| 12 | 6204-28-8500 | THRUST METAL ASS'Y | 10001- | |
| \6\ | METAL | 10001- | ||
| OVERSIZE 0.75MM | ||||
| 12 | 6204-27-8500 | THRUST METAL ASS'Y | 10001- | |
| \6\ | METAL | 10001- | ||
| OVERSIZE 1.00MM | ||||
| 12 | 6204-26-8500 | THRUST METAL ASS'Y | 10001- | |
| \6\ | METAL | 10001- |
