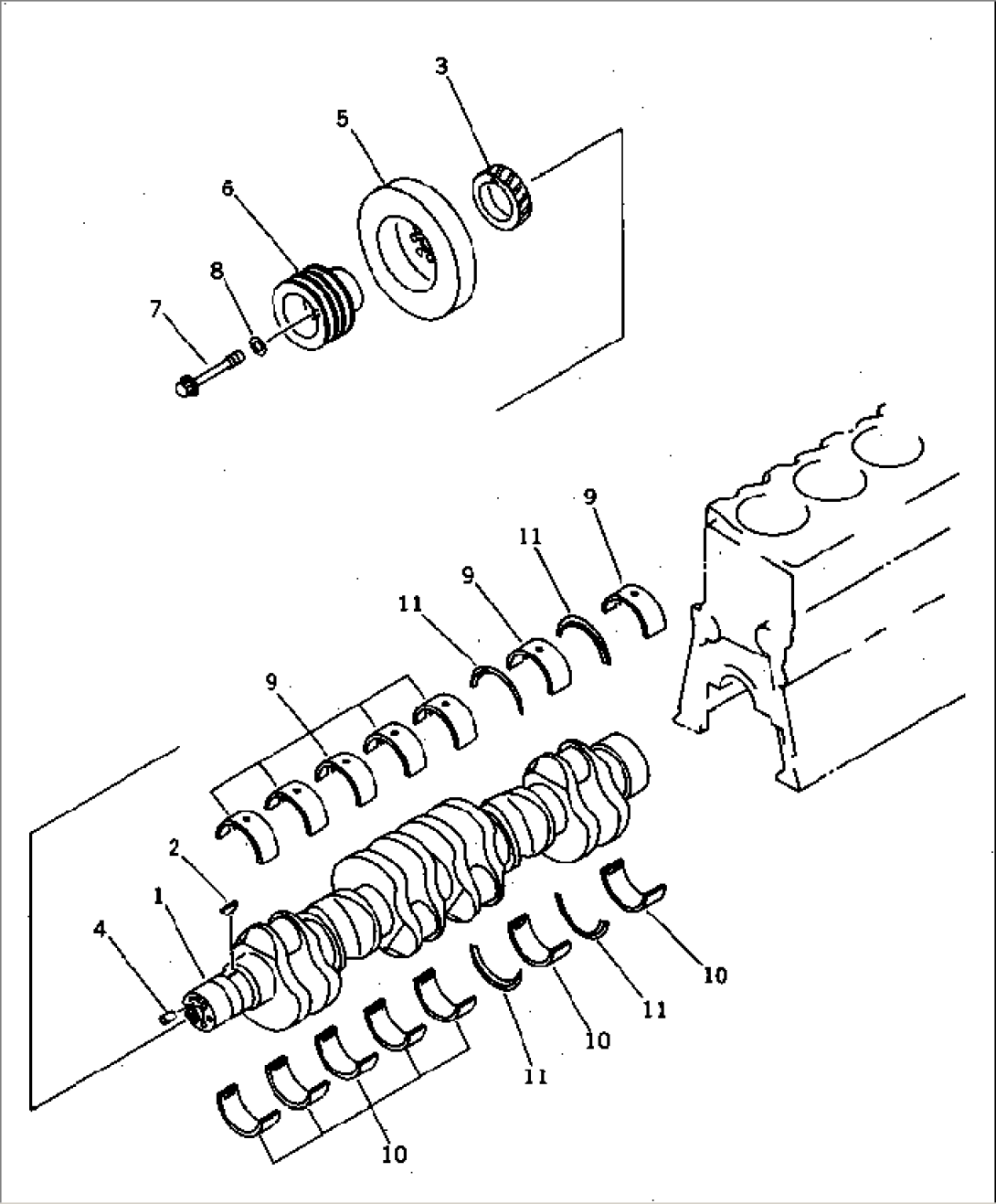

| Item | Part No. | Part Name | Qty | Serial No. |
| 6162-33-1401 | CRANKSHAFT ASS'Y | 11422- | ||
| \0\6162-33-1400 | CRANKSHAFT ASS'Y | 10277-11421 | ||
| 1 | \6\ | CRANKSHAFT | 11422- | |
| 1 | \6\ | CRANKSHAFT | 10277-11421 | |
| 2 | 04010-00728 | KEY | 10277- | |
| 3 | 6162-33-1411 | GEAR,CRANKSHAFT | 10277- | |
| 4 | 04020-01024 | PIN,DOWEL | 10277- | |
| 5 | 6162-33-8100 | DAMPER | 10277- | |
| 6 | 6162-33-5510 | PULLEY | 10277- | |
| 7 | 6162-33-5321 | BOLT | 10277- | |
| 8 | 6162-13-1620 | WASHER | 10277- | |
| STANDARD | ||||
| 6162-23-8000 | METAL ASS'Y | 10277- | ||
| 6162-23-8010 | MAIN METAL ASS'Y | 10277- | ||
| 9 | \6\ | METAL,UPPER | 10277- | |
| 10 | \6\ | METAL,LOWER | 10277- | |
| 11 | 6162-23-8050 | THRUST METAL ASS'Y | 10277- | |
| 11 | \6\ | METAL,THRUST | 10277- | |
| UNDERSIZE 0.25MM | ||||
| 9 | 6162-29-8010 | MAIN METAL ASS'Y | 10277- | |
| 9 | \6\ | METAL,UPPER | 10277- | |
| 10 | \6\ | METAL,LOWER | 10277- | |
| UNDERSIZE 0.50MM | ||||
| 9 | 6162-28-8010 | MAIN METAL ASS'Y | 10277- | |
| 9 | \6\ | METAL,UPPER | 10277- | |
| 10 | \6\ | METAL,LOWER | 10277- | |
| UNDERSIZE 0.75MM | ||||
| 9 | 6162-27-8010 | MAIN METAL ASS'Y | 10277- | |
| 9 | \6\ | METAL,UPPER | 10277- | |
| 10 | \6\ | METAL,LOWER | 10277- | |
| UNDERSIZE 1.00MM | ||||
| 9 | 6162-26-8010 | MAIN METAL ASS'Y | 10277- | |
| 9 | \6\ | METAL,UPPER | 10277- | |
| 10 | \6\ | METAL,LOWER | 10277- | |
| OVERSIZE 0.25MM | ||||
| 11 | 6162-29-8050 | THRUST METAL ASS'Y | 10277- | |
| 11 | \6\ | METAL,THRUST | 10277- | |
| OVERSIZE 0.50MM | ||||
| 11 | 6162-28-8050 | THRUST METAL ASS'Y | 10277- | |
| 11 | \6\ | METAL,THRUST | 10277- | |
| OVERSIZE 0.75MM | ||||
| 11 | 6162-27-8050 | THRUST METAL ASS'Y | 10277- | |
| 11 | \6\ | METAL,THRUST | 10277- | |
| OVERSIZE 1.00MM | ||||
| 11 | 6162-26-8050 | THRUST METAL ASS'Y | 10277- | |
| 11 | \6\ | METAL,THRUST | 10277- |
