| Item | Part No. | Part Name | Qty | Serial No. |
| 8206-70-3503 | CRUSHER ASS'Y | 1101- | ||
| 8206-70-3502 | CRUSHER ASS'Y | 1002-1100 | ||

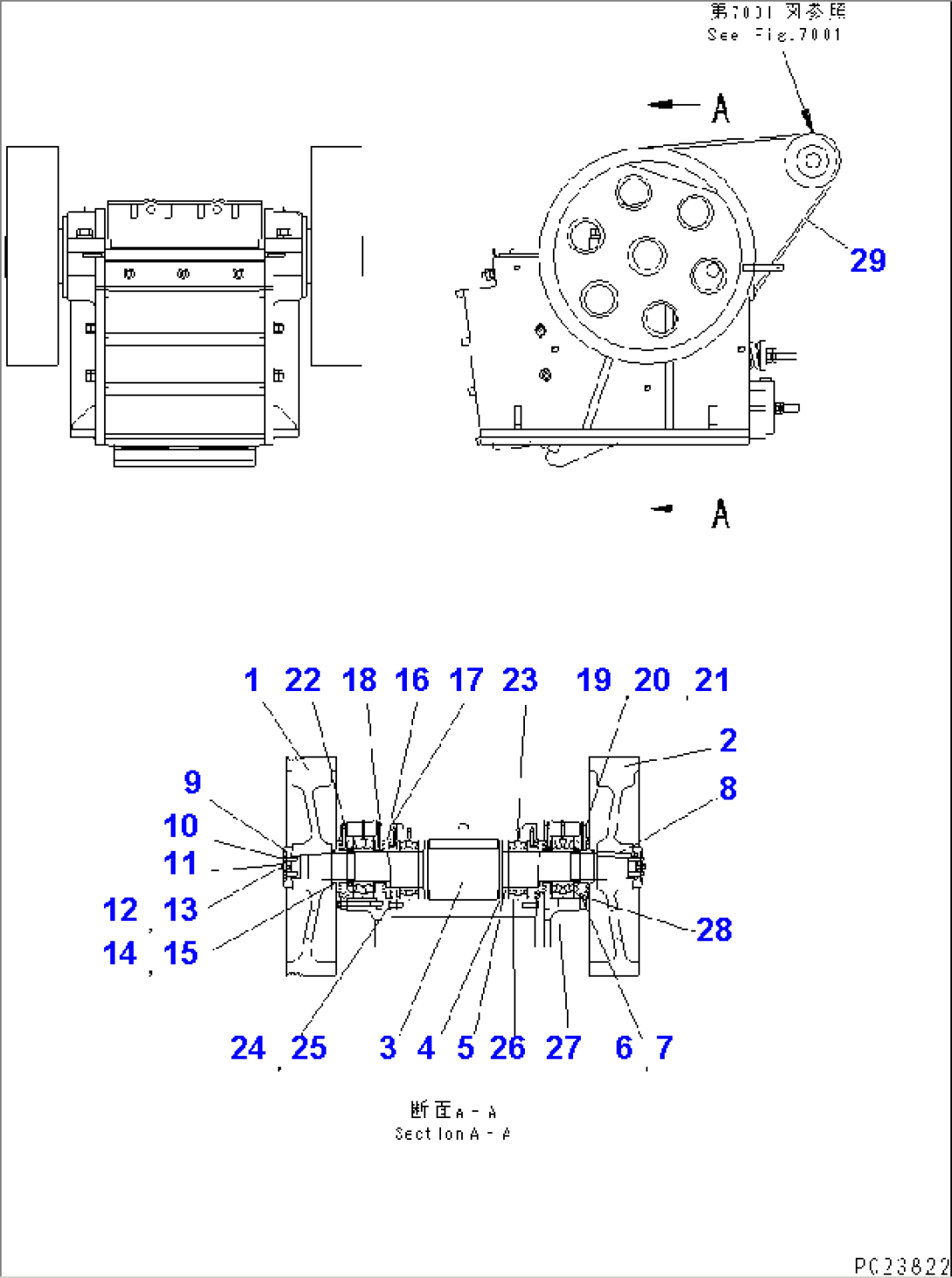

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7011 AND 7012. | ||||
| 8206-70-3700 | DRIVING PART ASS'Y | 1002- | ||
| 1 | 8206-70-3710 | PULLEY | 1002- | |
| 2 | 8206-70-3720 | FLYWHEEL | 1002- | |
| 3 | 8206-70-3730 | SHAFT | 1002- | |
| 4 | 8206-70-3740 | RETAINER | 1002- | |
| 5 | 8206-70-3750 | COLLAR | 1002- | |
| 6 | 8206-70-3760 | NUT | 1002- | |
| 7 | 8206-70-3770 | WASHER | 1002- | |
| 8 | 8206-70-3780 | KEY | 1002- | |
| 9 | 8206-70-3790 | PLATE | 1002- | |
| 10 | 01010-81650 | BOLT | 1002- | |
| 11 | 8206-70-3C10 | PLATE | 1002- | |
| 12 | 01010-51225 | BOLT | 1002- | |
| 13 | 01643-31232 | WASHER | 1002- | |
| 14 | 8206-70-3C20 | COLLAR | 1002- | |
| 15 | 8206-70-3C30 | SCREW | 1002- | |
| 16 | 8206-70-3C40 | COLLAR | 1002- | |
| 17 | 8206-70-3C50 | COVER | 1002- | |
| 18 | 8206-70-3C60 | COVER | 1002- | |
| 19 | 8206-70-3C70 | COVER | 1002- | |
| 20 | 01011-81680 | BOLT | 1002- | |
| 21 | 01643-51645 | WASHER | 1002- | |
| 22 | 07020-00675 | FITTING | 1002- | |
| 23 | 07020-00000 | FITTING,GREASE | 1002- | |
| 24 | 01010-81655 | BOLT | 1002- | |
| 25 | 01643-51645 | WASHER | 1002- | |
| 26 | 06300-23130 | BEARING | 1002- | |
| 27 | 06300-22324 | BEARING | 1002- | |
| 28 | 8206-70-3C80 | PLUG | 1002- | |
| 29 | 8206-70-3170 | V-BELT | 1002- |
