| Item | Part No. | Part Name | Qty | Serial No. |
| 8242-70-1500 | CRUSHER ASS'Y | 1002- | ||

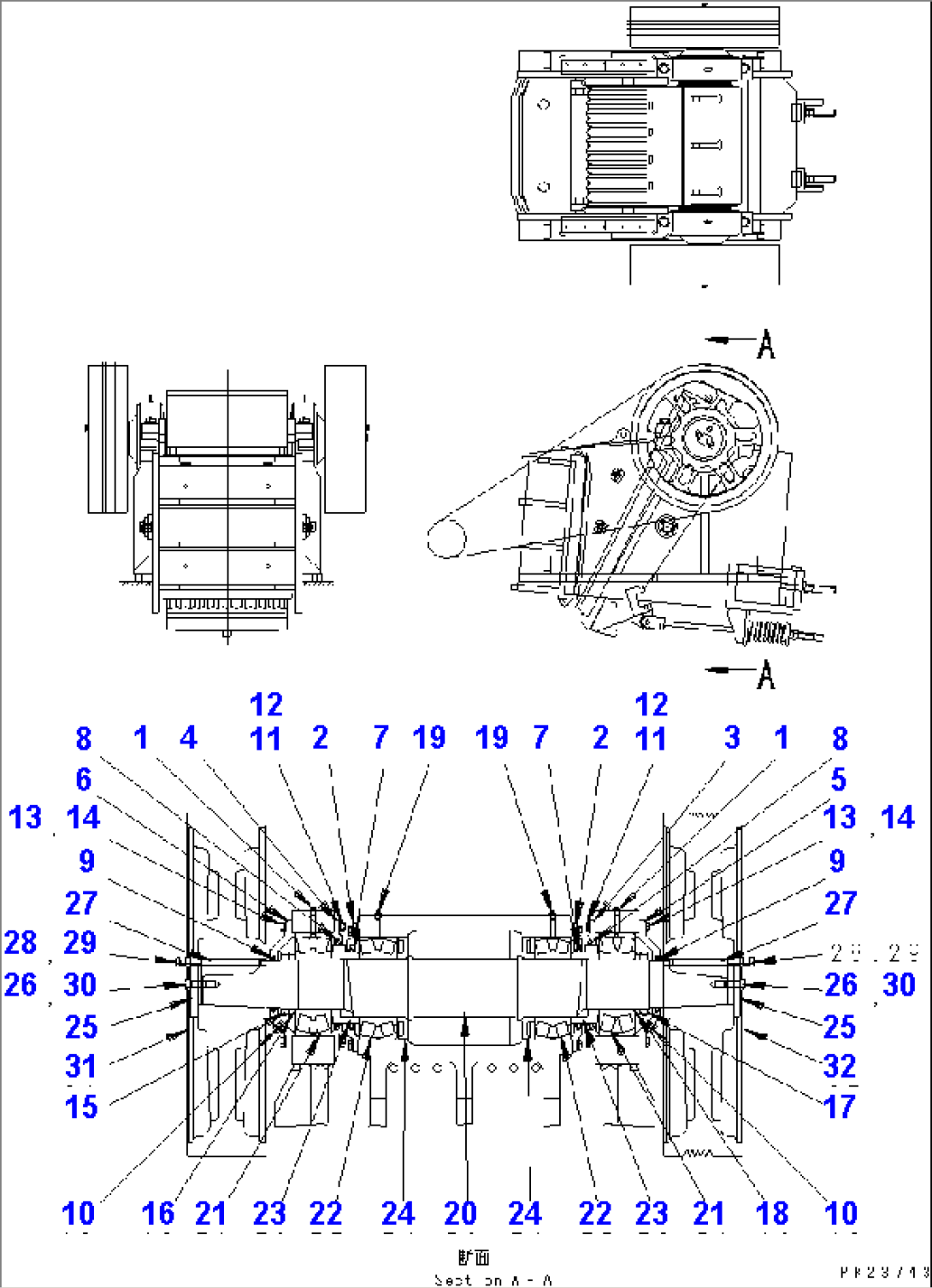

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7011 TO 7013. | ||||
| 1 | KHJC-62101-3 | FITTING | 1002- | |
| 2 | KHJC-62105-1 | COVER | 1002- | |
| 3 | KHJC-62106-1 | COVER | 1002- | |
| 4 | KHJC-62107-1 | COVER | 1002- | |
| 5 | KHJC-62108-1 | COVER | 1002- | |
| 6 | KHJC-62109-1 | COVER | 1002- | |
| 7 | KHJC-62105-2 | SEAL | 1002- | |
| 8 | KHJC-62106-2 | SEAL | 1002- | |
| 9 | KHJC-62108-3 | SEAL | 1002- | |
| 10 | KHJC-62108-2 | PLUG | 1002- | |
| 11 | 01010-51635 | BOLT | 1002- | |
| 12 | 01602-21648 | WASHER | 1002- | |
| 13 | 01010-52050 | BOLT | 1002- | |
| 14 | 01602-22060 | WASHER | 1002- | |
| 15 | KHJC-62110-1 | NUT | 1002- | |
| 16 | KHJC-62110-2 | NUT | 1002- | |
| 17 | KHJC-62110-3 | NUT | 1002- | |
| 18 | KHJC-62110-4 | NUT | 1002- | |
| 19 | KHJC-62201-4 | FITTING | 1002- | |
| 20 | KHJC-62301-1 | SHAFT | 1002- | |
| 21 | KHJC-62301-2 | BEARING | 1002- | |
| 22 | KHJC-62301-3 | BEARING | 1002- | |
| 23 | KHJC-62302-1 | COLLAR | 1002- | |
| 24 | KHJC-62303-1 | COLLAR | 1002- | |
| 25 | KHJC-62304-1 | COVER | 1002- | |
| 26 | KHJC-62801-30 | BOLT | 1002- | |
| 27 | KHJC-62305-1 | KEY | 1002- | |
| 28 | 01010-52065 | BOLT | 1002- | |
| 29 | 01580-12016 | NUT | 1002- | |
| 30 | KHJC-62306-1 | WASHER | 1002- | |
| 31 | KHJC-62701-1 | WHEEL | 1002- | |
| 32 | KHJC-62701-2 | SLEEVE | 1002- | |
| 33 | KHJC-62801-1 | STUD | 1002- | |
| 34 | KHJC-62801-2 | NUT | 1002- | |
| 35 | 01640-23650 | WASHER | 1002- |
