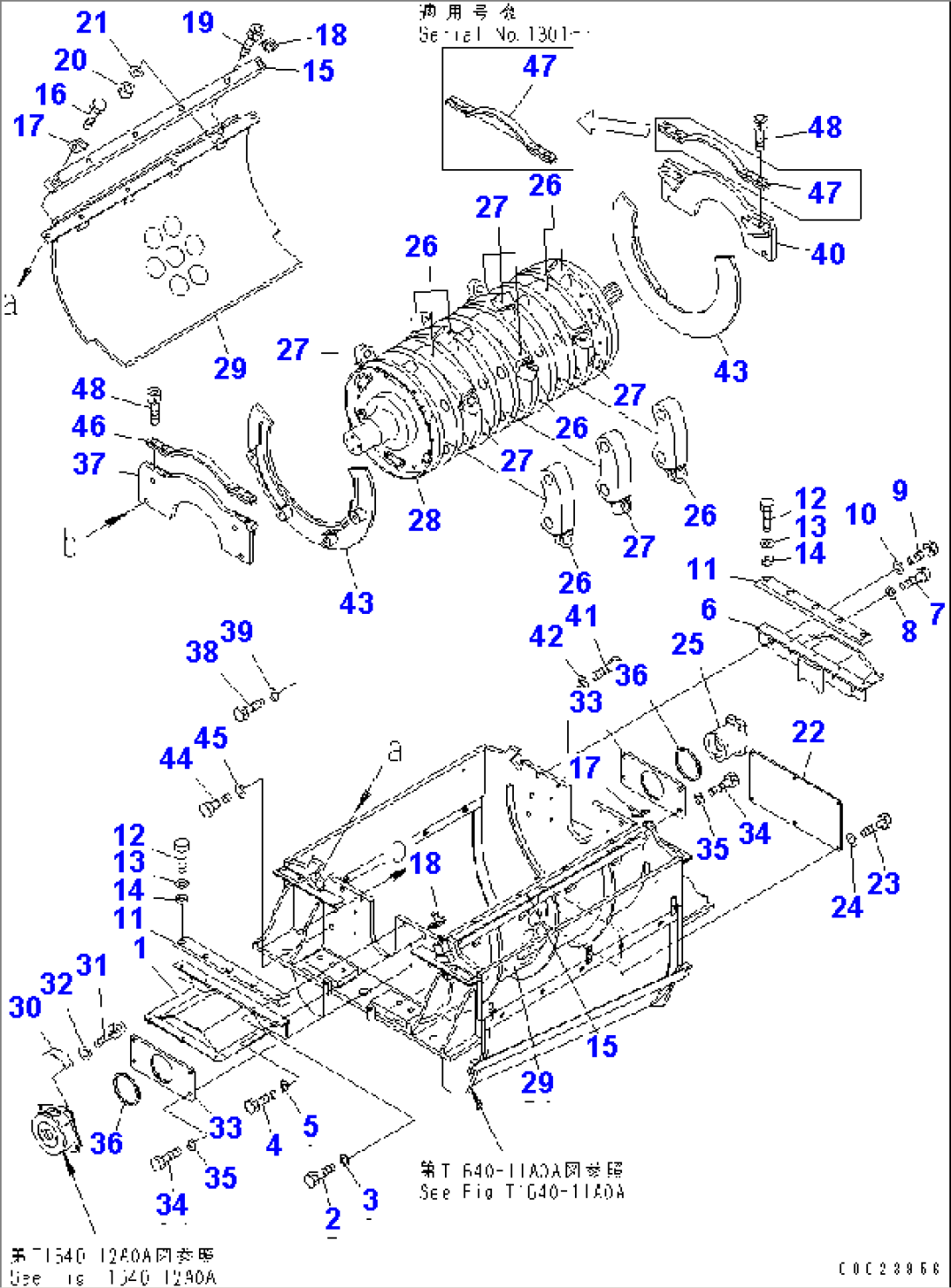

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8287-70-4152 | BRACKET | 1271- | |
| 2 | 01010-81230 | BOLT | 1271- | |
| 3 | 01643-31232 | WASHER | 1271- | |
| 4 | 01010-82060 | BOLT | 1271- | |
| 5 | 01643-32060 | WASHER | 1271- | |
| 6 | 8287-70-4172 | BRACKET | 1271- | |
| 7 | 01010-81230 | BOLT | 1271- | |
| 8 | 01643-31232 | WASHER | 1271- | |
| 9 | 01010-82060 | BOLT | 1271- | |
| 10 | 01643-32060 | WASHER | 1271- | |
| 11 | 8287-70-4162 | RUBBER | 1271- | |
| 12 | 01010-81025 | BOLT | 1271- | |
| 13 | 201-54-72910 | WASHER | 1271- | |
| 14 | 8242-72-2140 | COLLAR | 1271- | |
| 15 | 8287-70-2453 | BAR | 1271- | |
| 16 | 01010-82090 | BOLT | 1188- | |
| 17 | 8287-70-1850 | BRACKET | 1271- | |
| 18 | 8287-70-1860 | BRACKET | 1271- | |
| 19 | 01252-71670 | BOLT | 1271- | |
| 20 | 01580-11613 | NUT | 1271- | |
| 21 | 01643-31645 | WASHER | 1271- | |
| 22 | 8287-70-2520 | COVER | 1101- | |
| 23 | 01010-81230 | BOLT | 1101- | |
| 24 | 01643-31232 | WASHER | 1101- | |
| 25 | 8287-70-2333 | COUPLING | 1101- | |
| 26 | 8287-70-2473 | HAMMER | 1101- | |
| 27 | 8287-70-2483 | HAMMER | 1101- | |
| 28 | 8287-70-2272 | SHAFT | 1271- | |
| 29 | 8287-70-2414 | SCREEN | 1271- | |
| 30 | 8287-70-4120 | COVER | 1101- | |
| 31 | 01252-70616 | BOLT | 1101- | |
| 32 | 01643-30623 | WASHER | 1101- | |
| 33 | 8287-70-4140 | RETAINER | 1101- | |
| 34 | 01010-81230 | BOLT | 1101- | |
| 35 | 01643-31232 | WASHER | 1101- | |
| 36 | 8287-70-4190 | PACKING | 1198- | |
| 37 | 8287-70-1820 | BRACKET | 1271- | |
| 38 | 01010-82050 | BOLT | 1271- | |
| 39 | 01643-32060 | WASHER | 1271- | |
| 40 | 8287-70-1830 | BRACKET | 1271- | |
| 41 | 01010-82050 | BOLT | 1271- | |
| 42 | 01643-32060 | WASHER | 1271- | |
| 43 | 8287-70-1840 | BRACKET | 1271- | |
| 44 | 01010-82065 | BOLT | 1271- | |
| 45 | 01643-32060 | WASHER | 1271- | |
| 46 | 8287-70-1870 | BRACKET | 1271- | |
| 47 | 8287-70-1920 | BRACKET | 1301- | |
| 8287-70-1870 | BRACKET | 1271-1300 | ||
| 48 | 01252-71635 | BOLT | 1271- |
