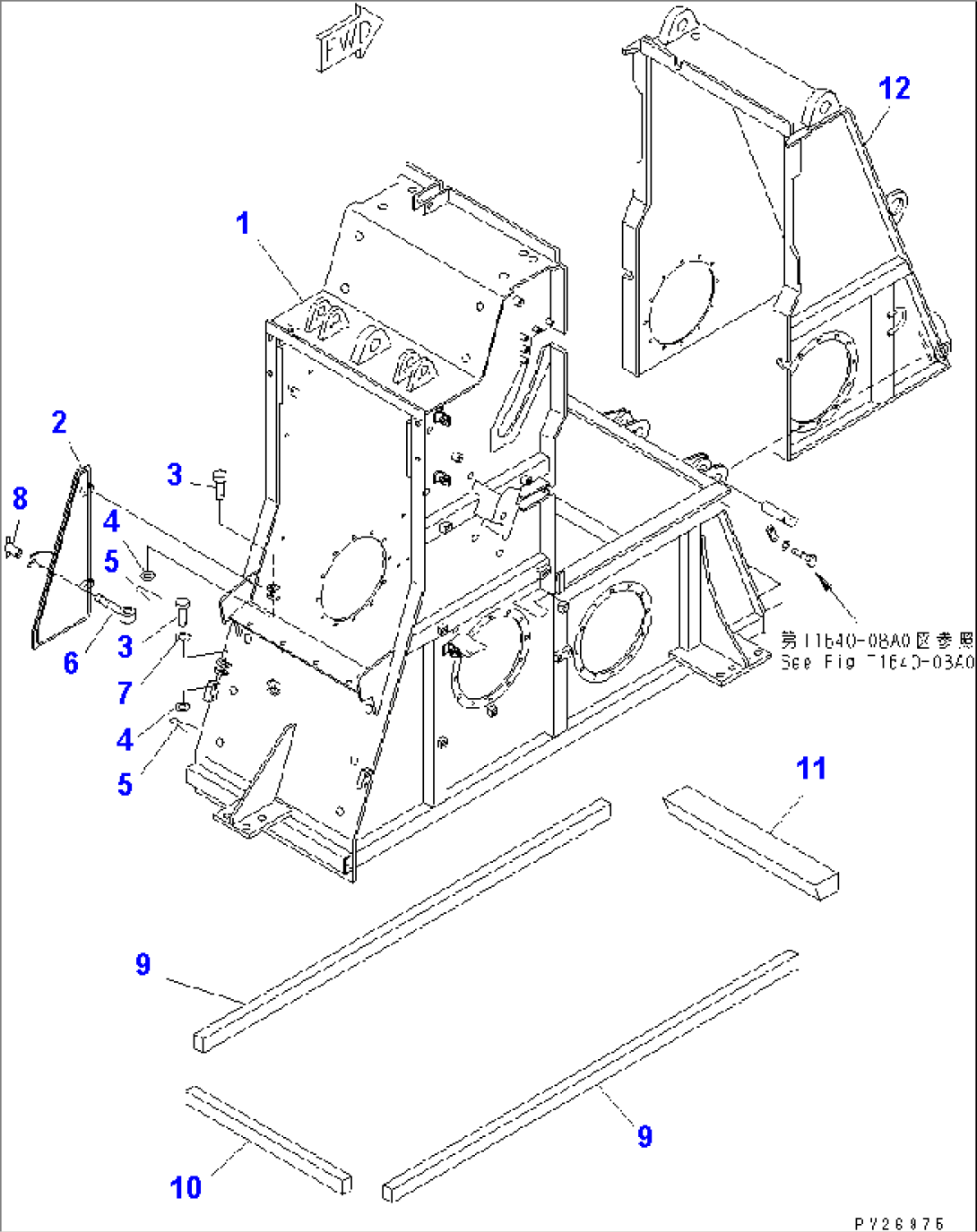

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8288-70-1113 | CASE | 1001- | |
| 2 | 8288-70-1210 | COVER | 1001- | |
| 3 | 04205-11250 | PIN | 1001- | |
| 4 | 01640-21223 | WASHER | 1001- | |
| 5 | 04050-12022 | PIN | 1001- | |
| 6 | 8255-70-1670 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 8255-72-1971 | NUT | 1001- | |
| 9 | 8288-70-1320 | SHEET | 1001- | |
| 10 | 8288-70-1330 | SHEET | 1001- | |
| 11 | 8288-70-1350 | SHEET | 1001- | |
| 12 | 8288-70-1123 | CASE | 1001- |
