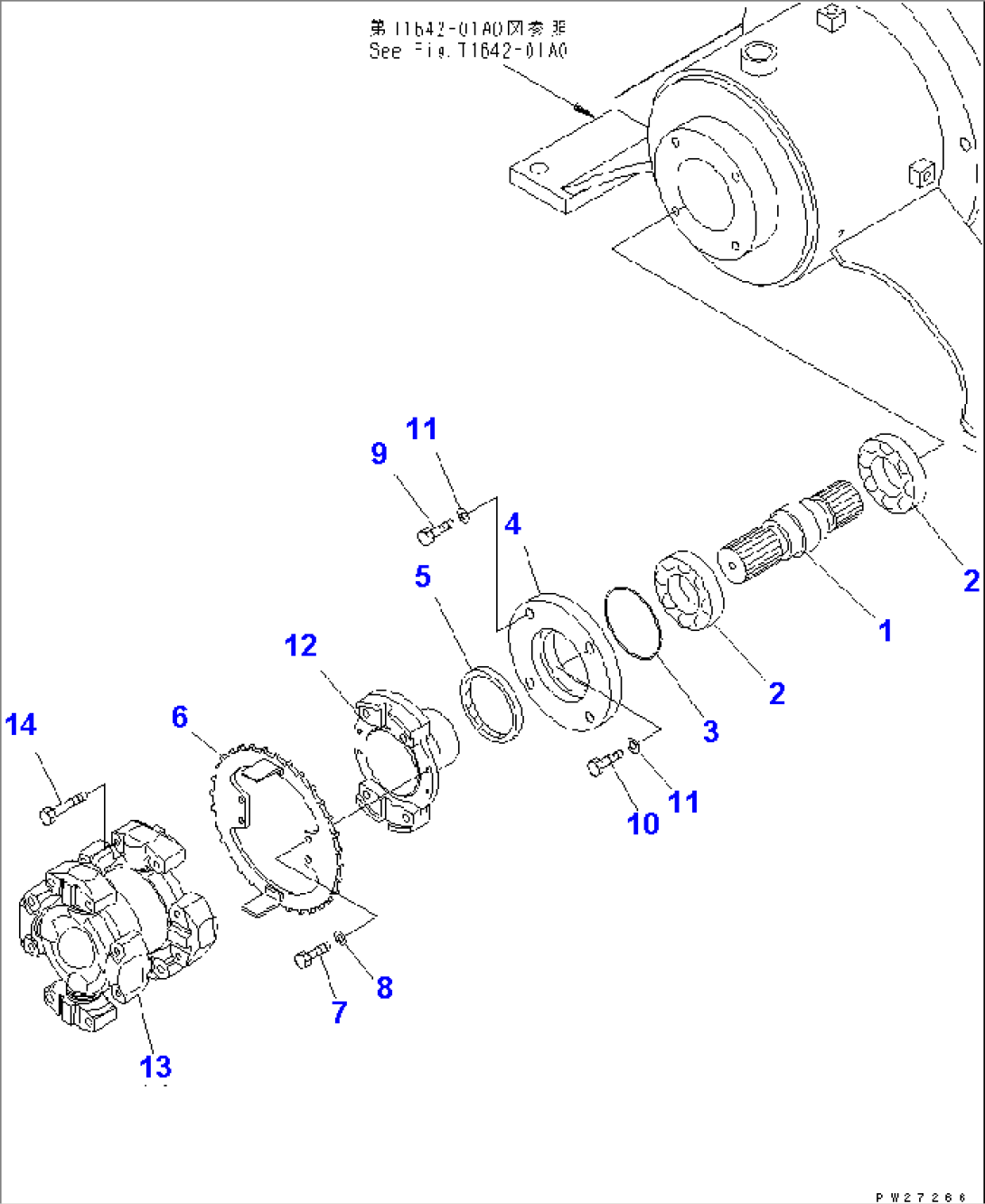

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8287-70-1132 | SHAFT | 1243- | |
| 8287-70-1131 | SHAFT | 1101-1242 | ||
| 2 | 06300-06211 | BEARING | 1101- | |
| 3 | 07000-12095 | O-RING | 1101- | |
| 4 | 8287-70-1141 | PLATE | 1243- | |
| 8287-70-1140 | PLATE | 1101-1242 | ||
| 5 | 07012-00075 | SEAL | 1101- | |
| 6 | 8287-70-1330 | PLATE | 1101- | |
| 7 | 01010-80616 | BOLT | 1101- | |
| 8 | 01643-30623 | WASHER | 1101- | |
| 9 | 01010-81240 | BOLT | 1101- | |
| 10 | 01010-81245 | BOLT | 1101- | |
| 11 | 01643-31232 | WASHER | 1101- | |
| 12 | 8287-70-1122 | COUPLING | 1101- | |
| 13 | 8287-70-1150 | JOINT | 1101- | |
| 14 | 01010-81260 | BOLT | 1101- |
