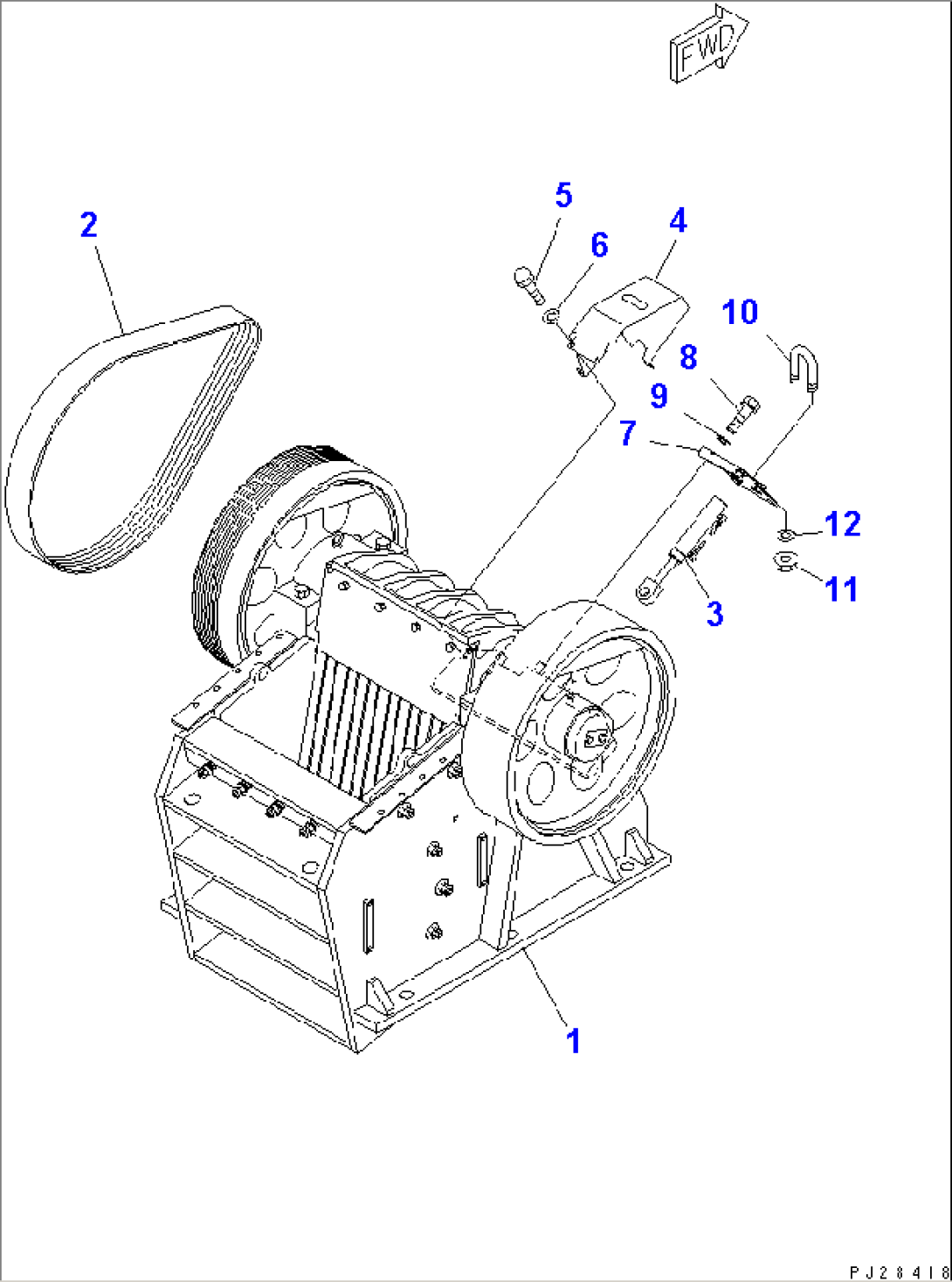

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8242-70-2109 | CRUSHER ASS'Y | 1523- | |
| 1 | 8242-70-2108 | CRUSHER ASS'Y | 1501-1522 | |
| 2 | 8242-70-2140 | BELT | 1005- | |
| 3 | (8242-70-5D92) | CYLINDER ASS'Y | 1550- | |
| 3 | (8242-70-5D91) | CYLINDER ASS'Y | 1113-1549 | |
| 4 | 8242-70-2561 | COVER | .- | |
| 5 | 01010-81220 | BOLT | 1005- | |
| 6 | 01643-31232 | WASHER | 1005- | |
| 7 | 8242-70-2571 | COVER | 1102- | |
| 8 | 01010-81230 | BOLT | 1102- | |
| 9 | 01643-31232 | WASHER | 1005- | |
| 10 | 07283-33442 | CLIP | 1102- | |
| 11 | 01597-01009 | NUT | 1102- | |
| 12 | 01643-31032 | WASHER | 1102- |
