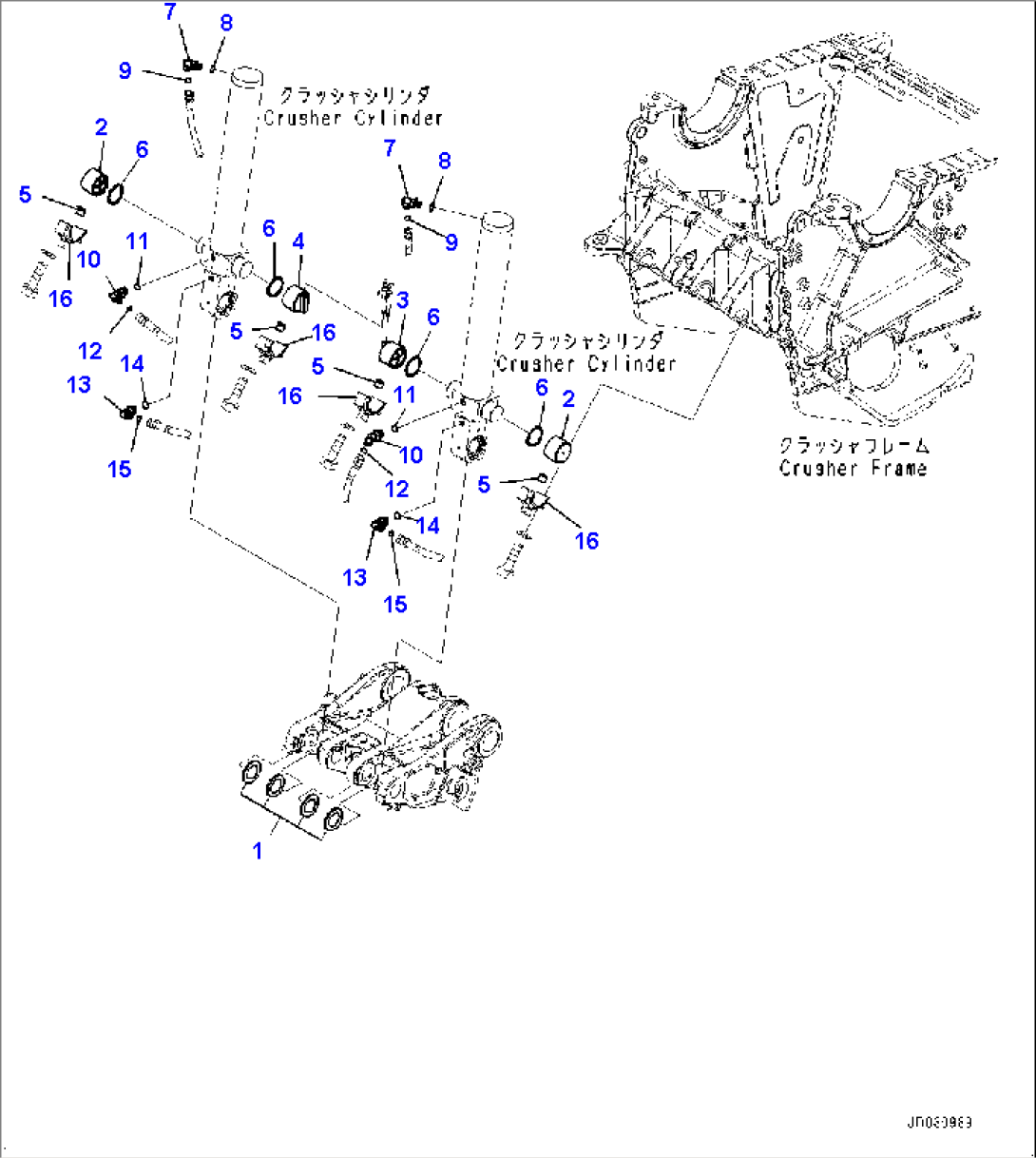

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-50-12291 | Seal | 2616- | |
| 2 | 17M-61-21140 | Bushing | 2616- | |
| 3 | 8240-70-7123 | Bushing | 2616- | |
| 4 | 8240-70-7133 | Bushing | 2616- | |
| 5 | 8240-70-5061 | Pin | 2629- | |
| 5 | 8240-70-5060 | Pin | 2616-2628 | |
| 6 | 07145-00095 | Seal, Dust | 2616- | |
| 7 | 02782-10311 | Elbow | 2616- | |
| 8 | 07002-11423 | O-ring | 2616- | |
| 9 | 02896-11009 | O-ring | 2616- | |
| 10 | 02782-10311 | Elbow | 2616- | |
| 11 | 07002-11423 | O-ring | 2616- | |
| 12 | 02896-11009 | O-ring | 2616- | |
| 13 | 02782-10210 | Elbow | 2616- | |
| 14 | 07002-11423 | O-ring | 2616- | |
| 15 | 02896-61008 | O-ring | 2616- | |
| 16 | (8240-70-5030) | Cap | - |
