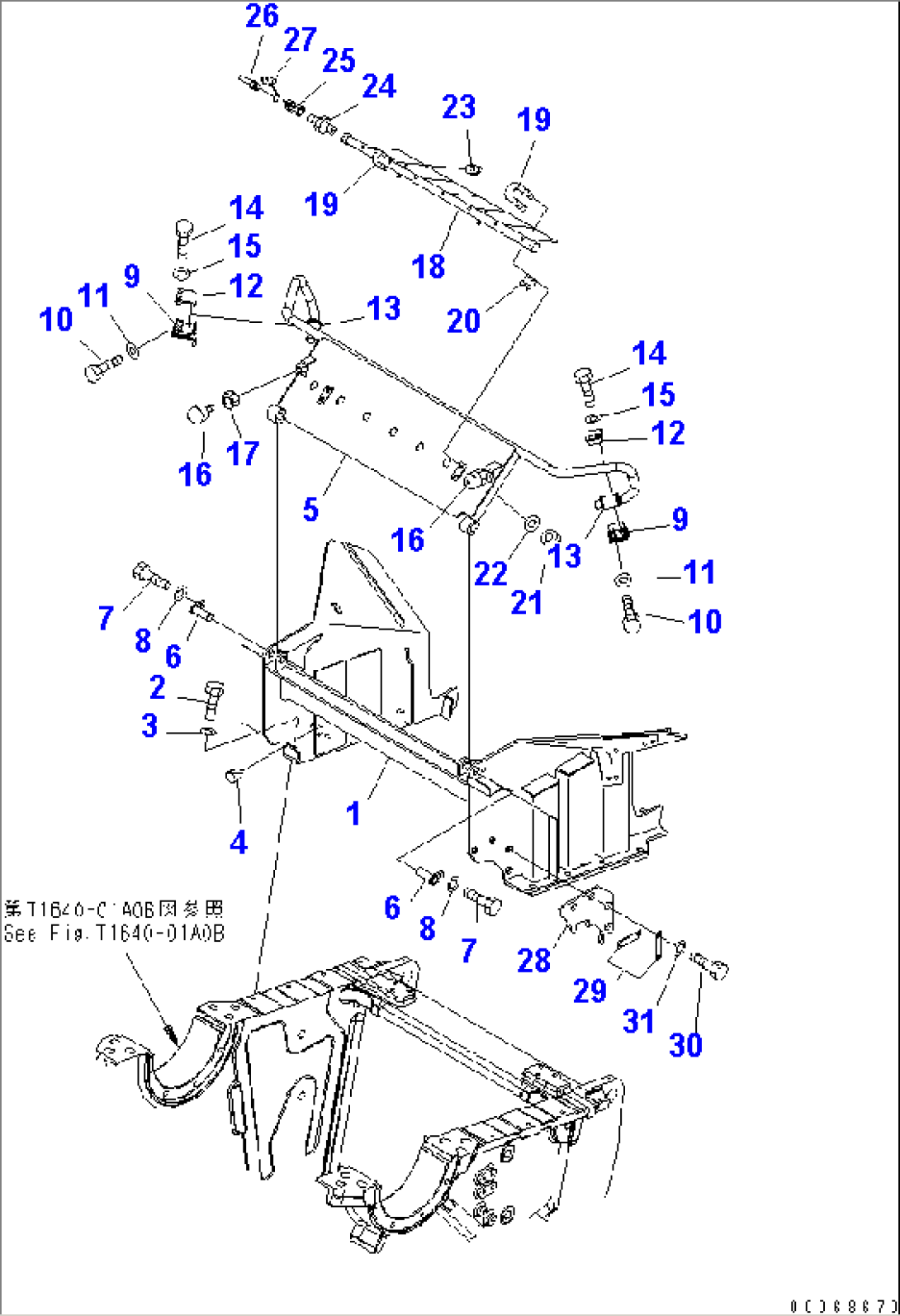

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-70-1516 | GUARD | 1337- | |
| 2 | 01010-82070 | BOLT | 1201- | |
| 3 | 15R-70-16370 | WASHER | 1201- | |
| 4 | 07049-01215 | PLUG | 1010- | |
| 5 | 8240-70-4162 | GUARD | 1392- | |
| 6 | 8240-70-1581 | PIN | 1006- | |
| 7 | 01010-81235 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 8240-70-1561 | BRACKET | 1092- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 8240-70-1620 | CLAMP | 1092- | |
| 13 | 07095-01034 | CUSHION | 1001- | |
| 14 | 01010-81285 | BOLT | 1092- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 09453-00002 | STOPPER | 1001- | |
| 17 | 01580-11210 | NUT | 1001- | |
| 18 | 8240-79-4111 | TUBE | 1392- | |
| 19 | 07283-33450 | CLIP | 1392- | |
| 20 | 07283-53444 | SEAT | 1392- | |
| 21 | 01597-01009 | NUT | 1392- | |
| 22 | 01643-31032 | WASHER | 1392- | |
| 23 | 8206-70-1211 | NOZZLE | 1001- | |
| 24 | 07325-10400 | NIPPLE | 1077- | |
| 25 | 07700-50455 | VALVE | 1001- | |
| 26 | 8206-70-1321 | JOINT | 1001- | |
| 27 | 8208-35-1160 | CAP | 1001- | |
| 28 | 8240-70-1541 | PLATE | 1201- | |
| 29 | 283-62-39220 | PLATE, 3.2MM | 1001- | |
| 30 | 01010-81225 | BOLT | 1001- | |
| 31 | 01643-31232 | WASHER | 1001- |
