| Item | Part No. | Part Name | Qty | Serial No. |
| (8230-70-1501) | CRUSHER ASS'Y | 1301- | ||

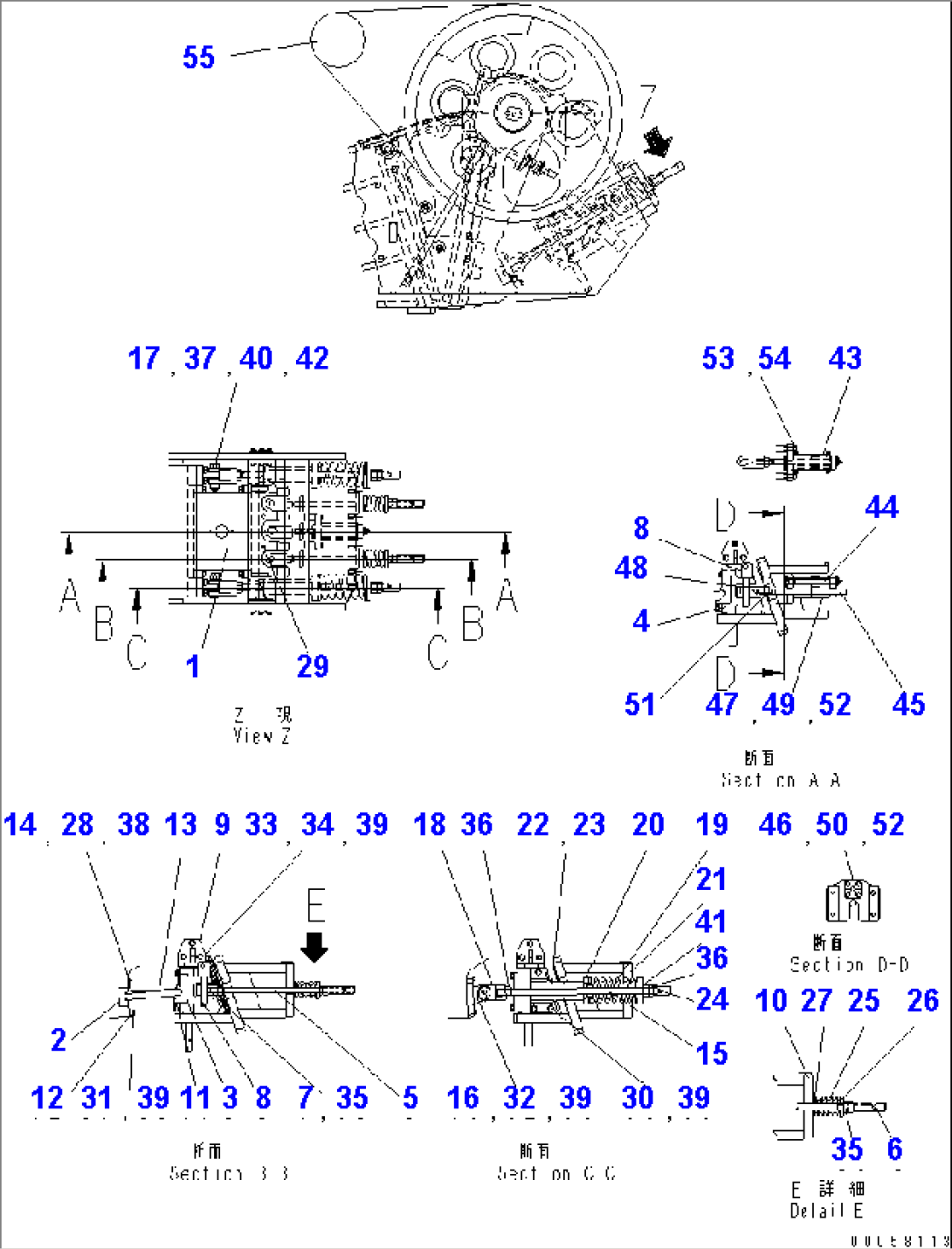

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.T1640-02A0 TO T1640-05A0. | ||||
| 1 | 8230-70-5120 | PLATE,TOGGLE | 1301- | |
| 2 | 8230-70-5130 | SEAT,TOGGLE | 1301- | |
| 3 | 8230-70-5140 | SEAT,TOGGLE | 1301- | |
| 4 | 8230-70-5450 | BLOCK,TOGGLE | 1301- | |
| 5 | 8230-70-5470 | BOLT | 1301- | |
| 6 | 8230-70-5480 | COVER | 1301- | |
| 7 | 8230-70-5490 | JOINT | 1301- | |
| 8 | 8230-70-5510 | PIN | 1301- | |
| 9 | 8230-70-5520 | BRACKET | 1301- | |
| 10 | 8230-70-5530 | SEAT | 1301- | |
| 11 | 8230-70-5540 | PLATE | 1301- | |
| 12 | 8230-70-5550 | PLATE | 1301- | |
| 13 | 8230-70-5560 | COVER | 1301- | |
| 14 | 8230-70-5570 | COVER | 1301- | |
| 15 | 8230-70-5580 | ROD | 1301- | |
| 16 | 8230-70-5590 | BRACKET | 1301- | |
| 17 | 8230-70-5610 | BOLT | 1301- | |
| 18 | 8230-70-5620 | YOKE | 1301- | |
| 19 | 8230-70-5630 | SPRING | 1301- | |
| 20 | 8230-70-5640 | GUIDE | 1301- | |
| 21 | 8230-70-5650 | GUIDE | 1301- | |
| 22 | 8230-70-5660 | HOLDER,R.H. | 1301- | |
| 23 | 8230-70-5670 | HOLDER,L.H. | 1301- | |
| 24 | 8230-70-5680 | COVER | 1301- | |
| 25 | 8248-70-6030 | SPRING | 1301- | |
| 26 | 8295-70-5180 | GUIDE | 1301- | |
| 27 | 8295-70-5330 | GUIDE | 1301- | |
| 28 | 01010-81030 | BOLT | 1301- | |
| 29 | 01010-81625 | BOLT | 1301- | |
| 30 | 01010-81645 | BOLT | 1301- | |
| 31 | 01010-81655 | BOLT | 1301- | |
| 32 | 01010-81660 | BOLT | 1301- | |
| 33 | 01010-81685 | BOLT | 1301- | |
| 34 | 01580-11613 | NUT | 1301- | |
| 35 | 01580-12419 | NUT | 1301- | |
| 36 | 01580-13024 | NUT | 1301- | |
| 37 | 01590-32427 | NUT | 1301- | |
| 38 | 01643-31032 | WASHER | 1301- | |
| 39 | 01643-31645 | WASHER | 1301- | |
| 40 | 01643-32460 | WASHER | 1301- | |
| 41 | 01643-33080 | WASHER | 1301- | |
| 42 | 04050-15045 | PIN | 1349- | |
| 42 | 04050-15060 | PIN,COTTER | 1301-1348 | |
| 43 | 8230-70-5910 | BRACKET | 1301- | |
| 8230-70-0510 | BOLT KIT | 1301- | ||
| 44 | \6\ | BOLT | 1301- | |
| 45 | \6\ | ROD | 1301- | |
| 46 | 8230-70-5930 | PLATE | 1301- | |
| 47 | 8230-70-5940 | COVER | 1301- | |
| 48 | 8230-70-5960 | JOINT | 1301- | |
| 49 | 01010-80816 | BOLT | 1301- | |
| 50 | 01010-80825 | BOLT | 1301- | |
| 51 | 01580-02419 | NUT | 1301- | |
| 52 | 01643-30823 | WASHER | 1301- | |
| 53 | 01010-81650 | BOLT | 1301- | |
| 54 | 01643-31645 | WASHER | 1301- | |
| 55 | 8230-70-5860 | SHEAVE | 1301- |
