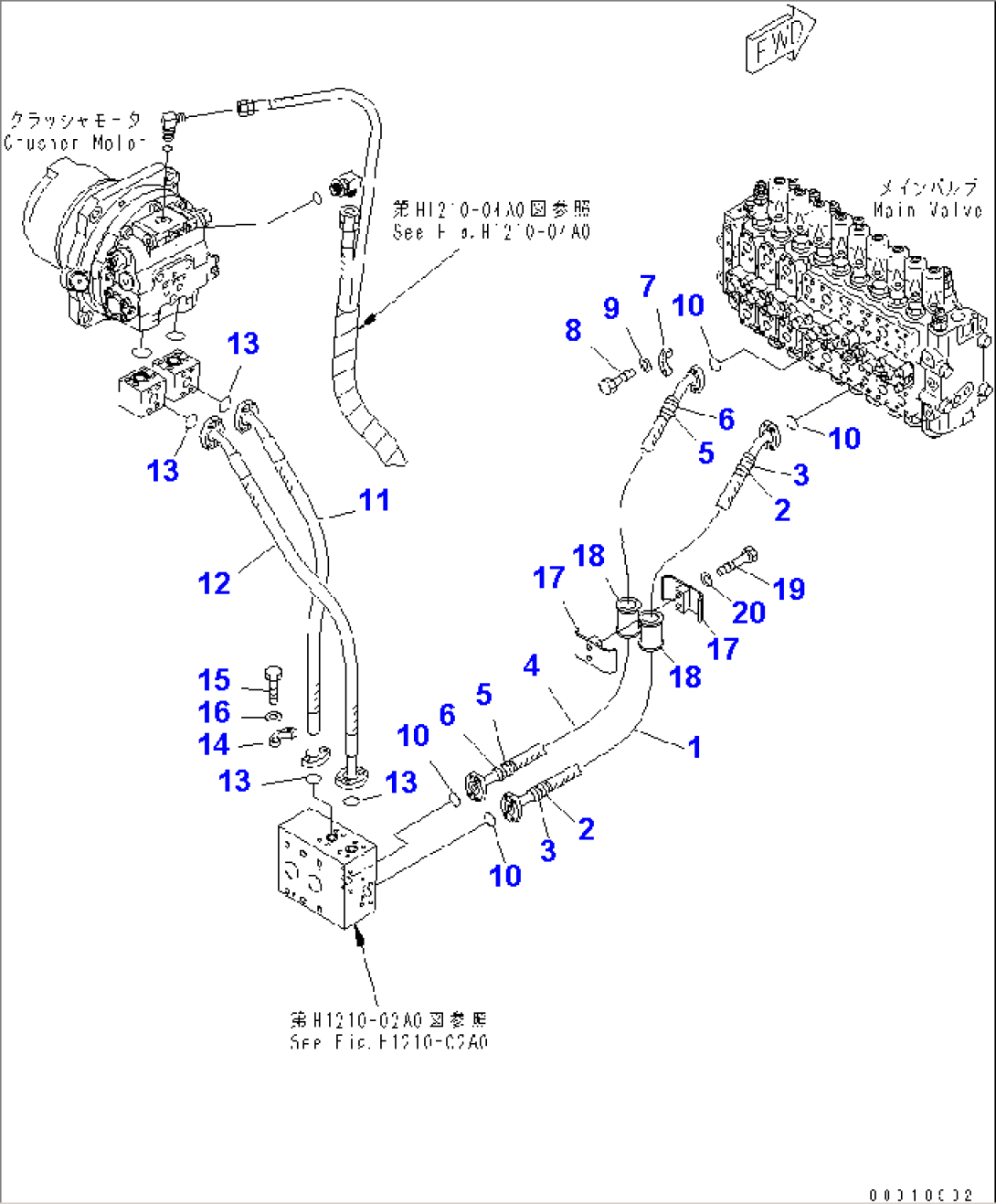

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8295-62-3140 | HOSE ASS'Y | 1001-@ | |
| 1 | 07083-01014 | HOSE | 1001-@ | |
| 2 | 20Y-62-22820 | BAND, BLUE | 1001-@ | |
| 3 | 20Y-62-22830 | BAND, WHITE,WHITE | 1001-@ | |
| 4 | 8295-62-3150 | HOSE ASS'Y | 1001-@ | |
| 4 | 07083-01016 | HOSE | 1001-@ | |
| 5 | 20Y-62-22790 | BAND, RED | 1001-@ | |
| 6 | 20Y-62-22840 | BAND, BLACK,BLACK | 1001-@ | |
| 7 | 07371-31049 | FLANGE | 1001-@ | |
| 8 | 07372-21035 | BOLT | 1001-@ | |
| 9 | 01643-51032 | WASHER | 1001-@ | |
| 10 | 07000-13032 | O-RING | 1001-@ | |
| 11 | 07083-010A9 | HOSE | 1007-1067 | |
| 11 | 07083-01012 | HOSE | 1001-1006 | |
| 12 | 07083-01010 | HOSE | 1007-1067 | |
| 12 | 07083-01012 | HOSE | 1001-1006 | |
| 13 | 07000-13032 | O-RING | 1001-@ | |
| 14 | 07371-31049 | FLANGE | 1001-@ | |
| 15 | 07372-21035 | BOLT | 1001-@ | |
| 16 | 01643-51032 | WASHER | 1001-@ | |
| 17 | 07094-31024 | CLAMP | 1001-@ | |
| 18 | 07095-01035 | CUSHION | 1001-@ | |
| 19 | 01010-81275 | BOLT | 1001-@ | |
| 20 | 01643-31232 | WASHER | 1001-@ |
