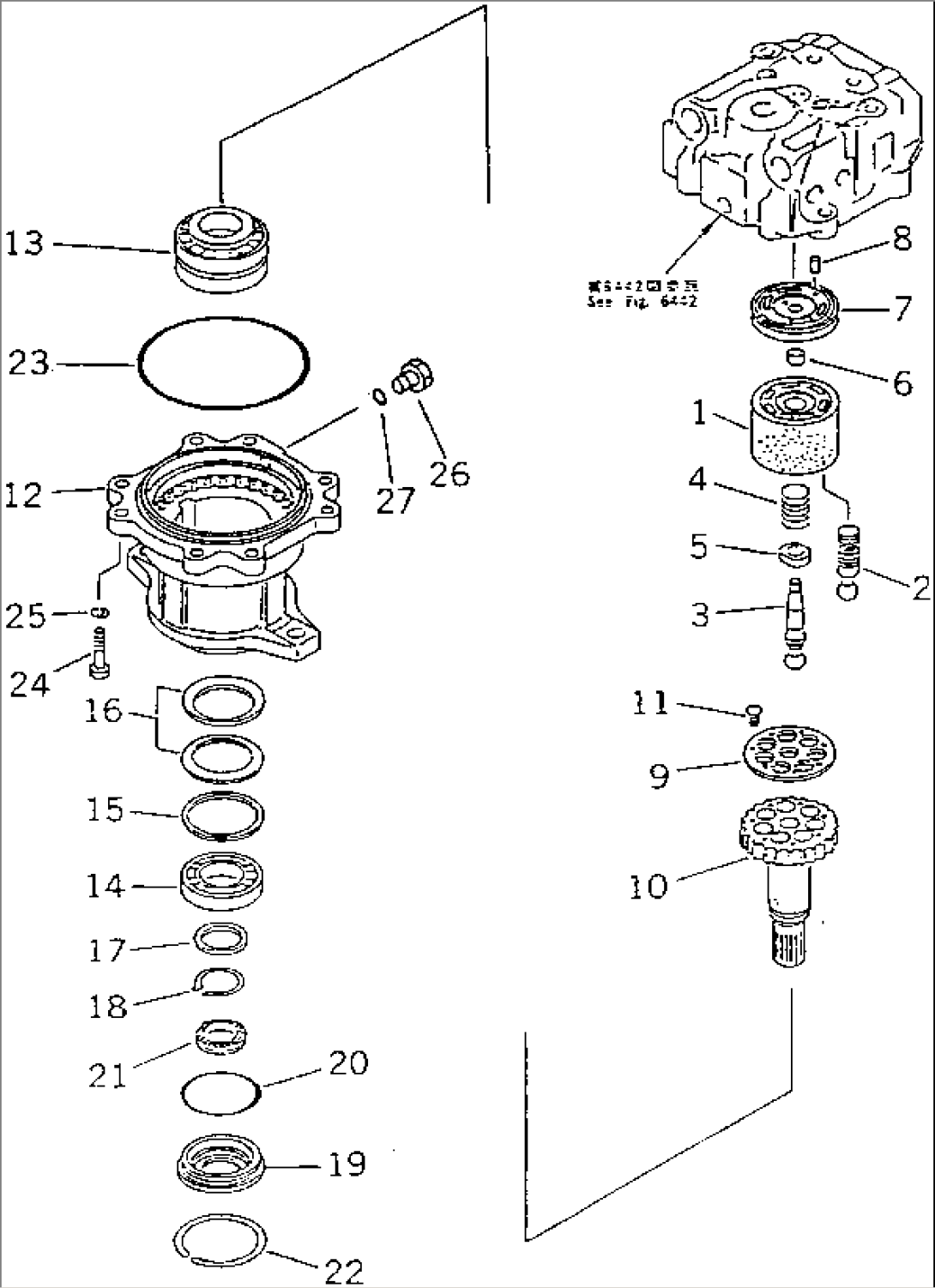

| Item | Part No. | Part Name | Qty | Serial No. |
| 706-77-01210 | MOTOR ASS'Y,CRUSHER | 1002- | ||
| 1 | (\7\706-77-43191) | BLOCK,CYLINDER | 1002- | |
| 2 | (\7\706-77-42160) | PISTON SUB ASS'Y | 1002- | |
| 3 | (\7\706-77-42081) | SHAFT,CENTER | 1002- | |
| 4 | (\7\706-77-42110) | SPRING | 1002- | |
| 5 | (\7\706-77-43130) | RING,CENTER | 1002- | |
| 6 | (\7\706-77-42071) | BUSHING | 1002- | |
| 7 | (\7\706-77-43850) | PLATE,VALVE | 1002- | |
| 8 | (\7\04020-01024) | PIN,DOWEL | 1002- | |
| 9 | (\7\706-77-42260) | RETAINER | 1002- | |
| 10 | (\7\706-77-42861) | SHAFT | 1002- | |
| 11 | (\7\706-75-41271) | SCREW | 1002- | |
| 12 | (\7\706-77-42022) | CASE | 1002- | |
| 13 | (\7\706-77-42881) | BEARING | 1002- | |
| 14 | (\7\706-77-42890) | BEARING | 1002- | |
| 15 | (\7\706-77-42041) | SEAT | 1002- | |
| 16 | (\7\706-77-42051) | SPRING | 1002- | |
| 17 | (\7\706-77-42440) | SPACER¤ 2.3MM | 1002- | |
| (\7\706-77-42450) | SPACER¤ 2.5MM | 1002- | ||
| (\7\706-77-42460) | SPACER¤ 2.7MM | 1002- | ||
| 18 | (\7\04064-06525) | RING,SNAP | 1002- | |
| 19 | 706-77-42060 | COVER | 1002- | |
| 20 | 07000-02115 | O-RING | 1002- | |
| 21 | 706-77-43950 | SEAL,OIL | 1002- | |
| 22 | 04071-00130 | RING,SNAP | 1002- | |
| 23 | (\7\07000-05250) | O-RING | 1002- | |
| 24 | (\7\01010-51860) | BOLT | 1002- | |
| 25 | (\7\01602-21854) | WASHER,SPRING | 1002- | |
| 26 | 07040-11409 | PLUG | 1002- | |
| 27 | 07002-01423 | O-RING | 1002- |
