| Item | Part No. | Part Name | Qty | Serial No. |
| (8229-70-1300) | FINAL DRIVE ASS'Y | 1001-1011 | ||
| (708-8J-00034) | MOTOR ASS'Y | 1001-1011 | ||

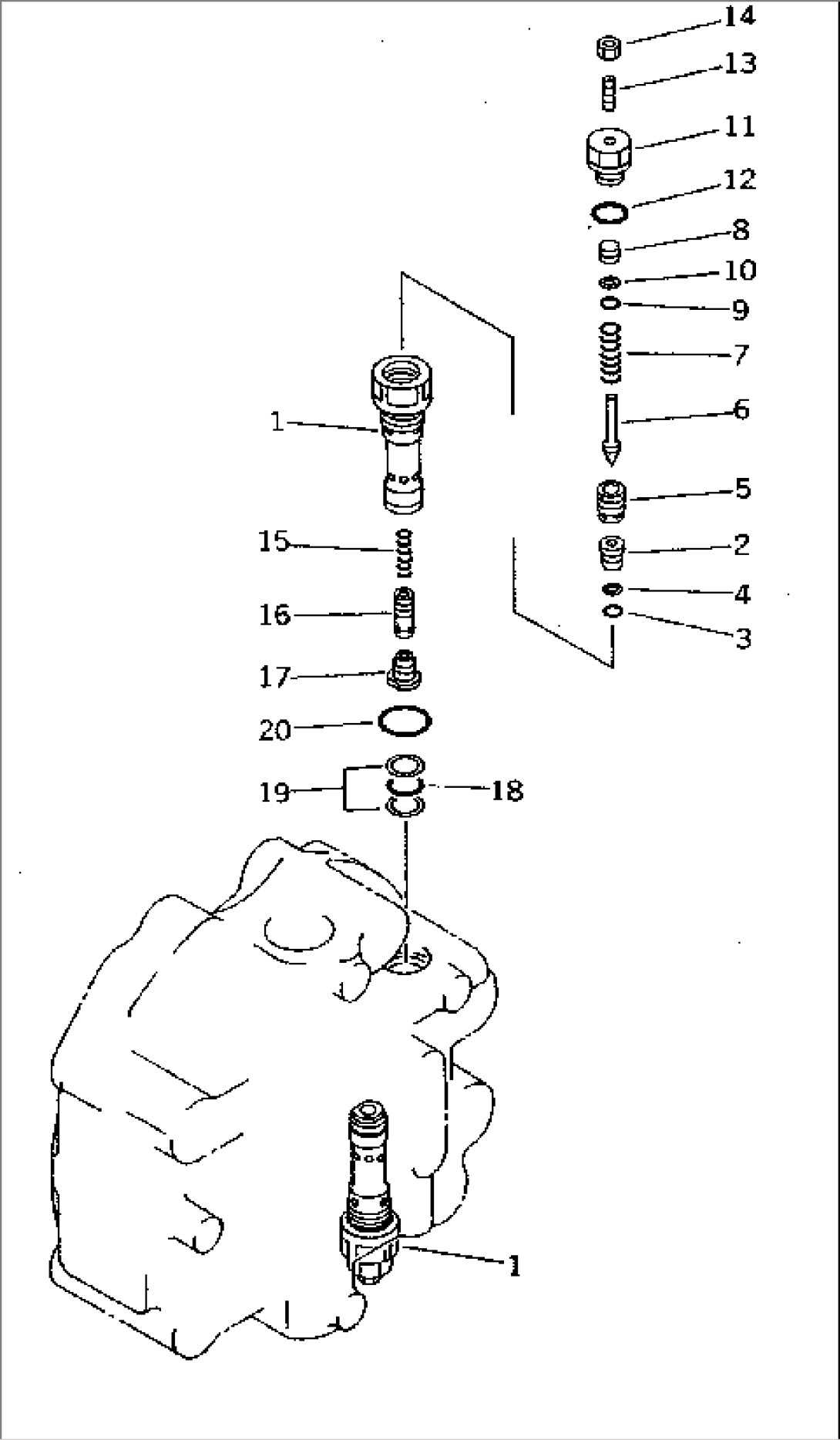

| 702-76-01401 | VALVE ASS'Y | 1001-1011 | ||
| 1 | \6\ | SLEEVE | 1001-1011 | |
| 2 | \6\ | SEAT,VALVE | 1001-1011 | |
| 3 | \6\ | O-RING | 1001-1011 | |
| 4 | \6\ | RING | 1001-1011 | |
| 5 | \6\ | SLEEVE | 1001-1011 | |
| 6 | \6\ | POPPET | 1001-1011 | |
| 7 | \6\ | SPRING | 1001-1011 | |
| 8 | \6\ | SEAT | 1001-1011 | |
| 9 | \6\ | O-RING | 1001-1011 | |
| 10 | \6\ | RING | 1001-1011 | |
| 11 | \6\ | CAP | 1001-1011 | |
| 12 | \6\ | O-RING | 1001-1011 | |
| 13 | \6\ | SCREW | 1001-1011 | |
| 14 | \6\ | NUT | 1001-1011 | |
| 15 | \6\ | SPRING | 1001-1011 | |
| 16 | \6\ | VALVE | 1001-1011 | |
| 17 | \6\ | SEAT,VALVE | 1001-1011 | |
| 18 | 07000-22020 | O-RING | 1001-1011 | |
| 19 | 07001-02020 | RING | 1001-1011 | |
| 20 | 07002-13034 | O-RING | 1001-1011 |
