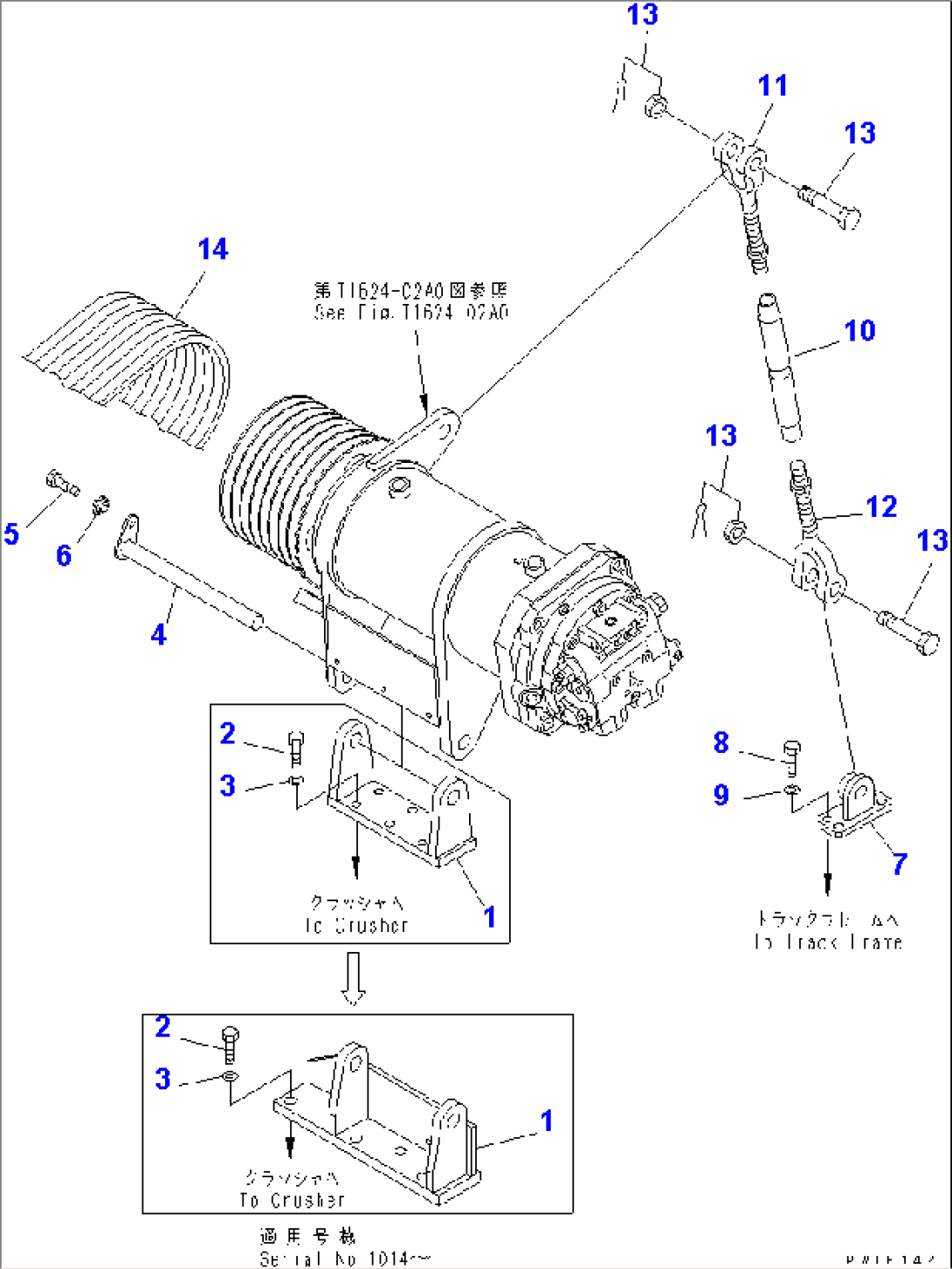

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8296-70-1111 | BRACKET | 1014- | |
| 1 | 8296-70-1110 | BRACKET | 1001-1013 | |
| 2 | 01010-82075 | BOLT | 1014- | |
| 2 | 01010-81660 | BOLT | 1006-1013 | |
| 2 | 01010-81650 | BOLT | 1001-1005 | |
| 3 | 01643-32060 | WASHER | 1014- | |
| 3 | 01643-31645 | WASHER | 1001-1013 | |
| 4 | 8294-70-1130 | PIN | 1001- | |
| 5 | 20S-70-31180 | SPACER | 1001- | |
| 6 | 01010-81240 | BOLT | 1001- | |
| 7 | 8296-70-1120 | BRACKET | 1001- | |
| 8 | 01010-81650 | BOLT | 1001- | |
| 9 | 01643-31645 | WASHER | 1001- | |
| 10 | 8285-70-1220 | JOINT | 1001- | |
| 11 | 8285-70-1230 | ROD | 1001- | |
| 12 | 8285-70-1240 | ROD | 1001- | |
| 13 | 8285-70-1250 | BOLT ASS'Y | 1001- | |
| 14 | 8296-70-1130 | BELT SET | 1001- |
