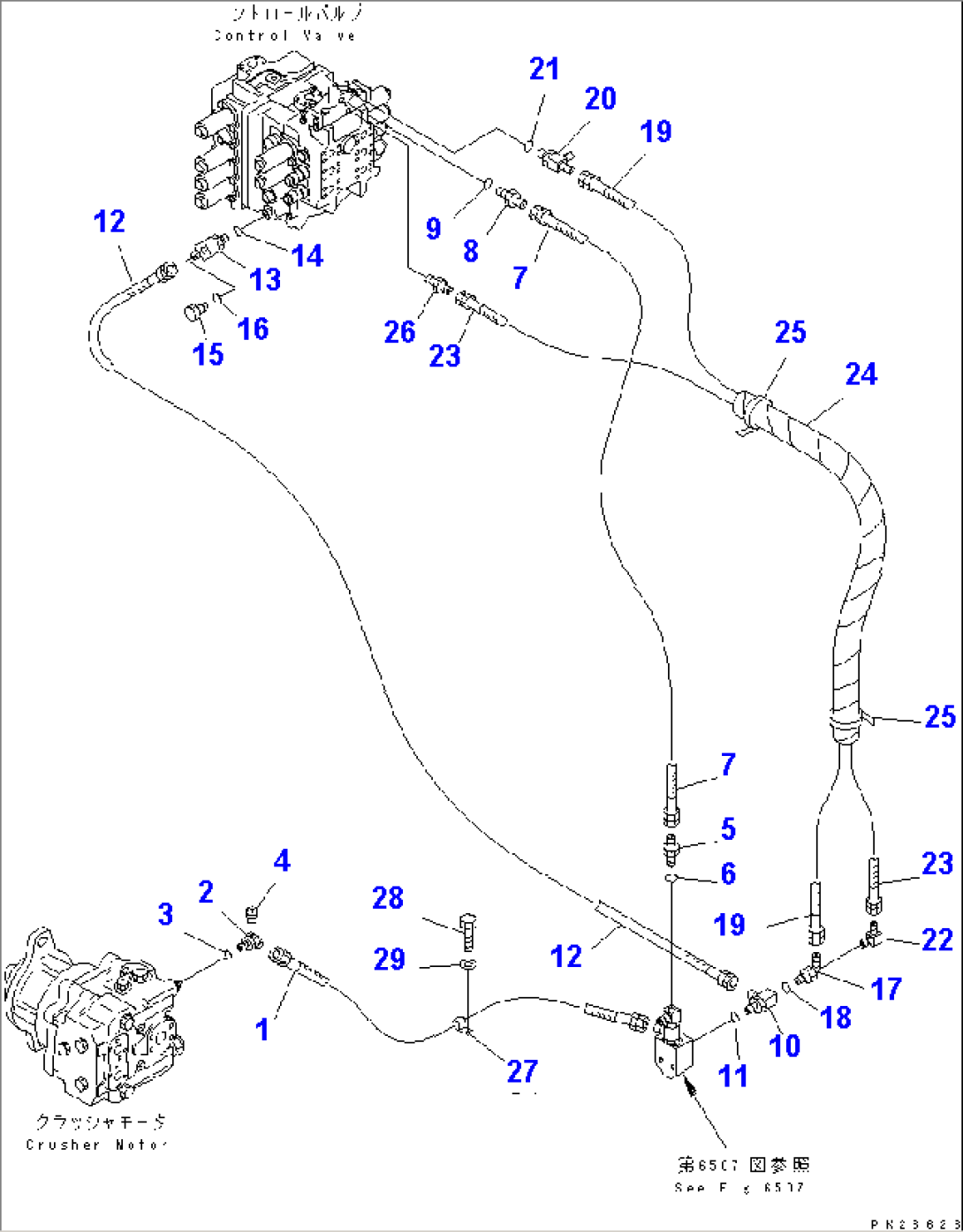

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20511 | HOSE | 1002- | |
| 2 | 07236-50522 | ELBOW | 1002- | |
| 3 | 07002-02034 | O-RING | 1002- | |
| 4 | 07042-70108 | PLUG | 1002- | |
| 5 | 07230-10315 | UNION | 1002- | |
| 6 | 07002-02034 | O-RING | 1002- | |
| 7 | 07102-20308 | HOSE | 1002- | |
| 8 | 205-62-55270 | NIPPLE | 1002- | |
| 9 | 07002-01423 | O-RING | 1002- | |
| 10 | 20Y-62-15530 | ELBOW | 1002- | |
| 11 | 07002-02434 | O-RING | 1002- | |
| 12 | 07102-20504 | HOSE | 1002- | |
| 13 | 20Y-62-15530 | ELBOW | 1002- | |
| 14 | 07002-02434 | O-RING | 1002- | |
| 15 | 07040-12012 | PLUG | 1002- | |
| 16 | 07002-02034 | O-RING | 1002- | |
| 17 | 07235-10315 | ELBOW | 1002- | |
| 18 | 07002-02034 | O-RING | 1002- | |
| 19 | 07102-20309 | HOSE | 1002- | |
| 20 | 21T-62-29960 | TEE | 1002- | |
| 21 | 07002-01423 | O-RING | 1002- | |
| 22 | 569-35-41470 | ELBOW | 1002- | |
| 23 | 07102-20210 | HOSE | 1002- | |
| 24 | 281-04-15540 | TUBE | 1002- | |
| 25 | 08034-00519 | BAND | 1002- | |
| 26 | 208-06-11220 | NIPPLE | 1002- | |
| 27 | 04434-52712 | CLIP | 1002- | |
| 28 | 01010-51020 | BOLT | 1002- | |
| 29 | 01643-31032 | WASHER | 1002- |
