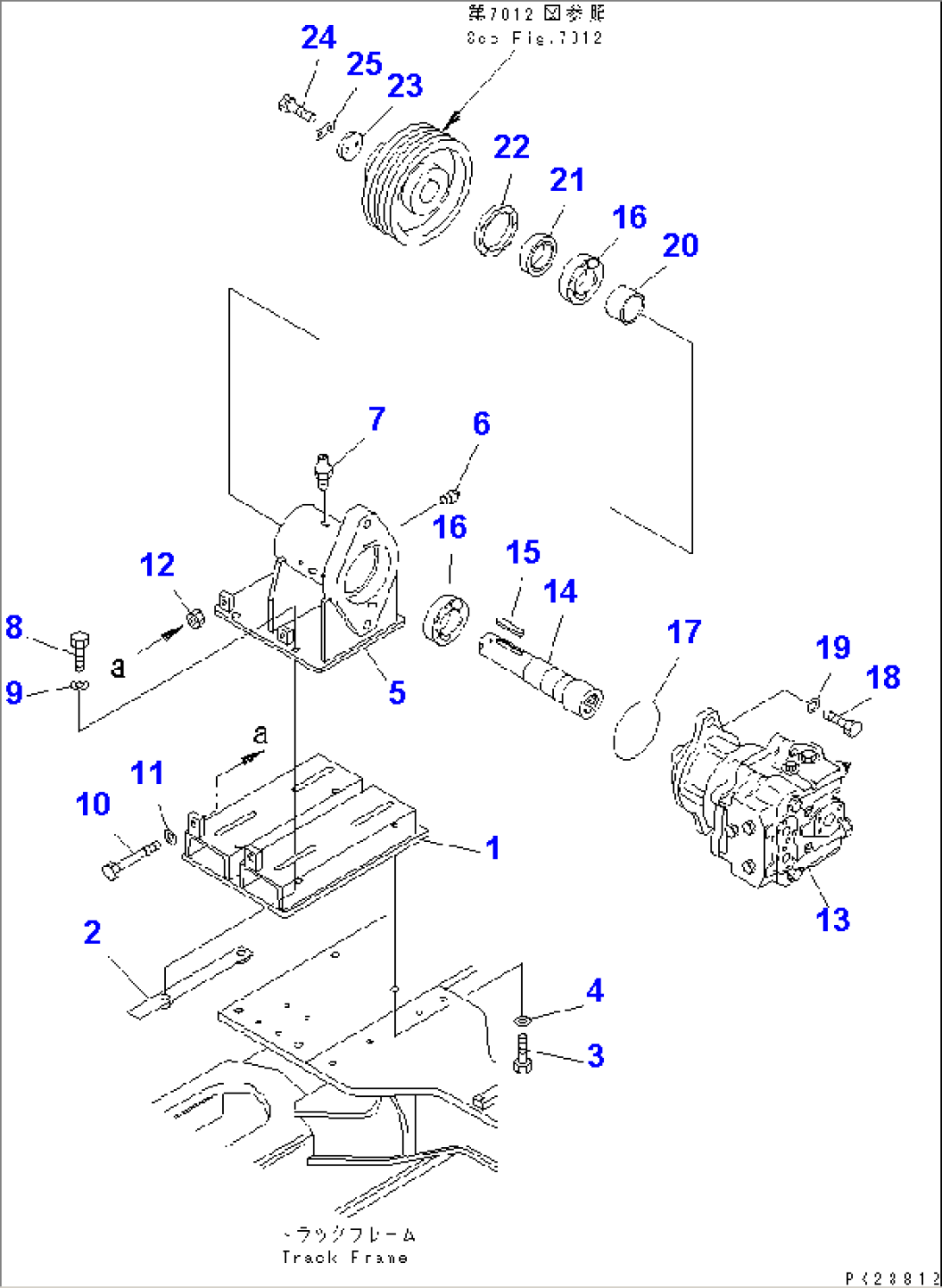

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8221-70-1141 | BRACKET | 1020- | |
| 8221-70-1140 | BRACKET | 1001-1019 | ||
| 2 | 8221-70-1150 | PLATE | 1001- | |
| 3 | 01010-51655 | BOLT | 1001- | |
| 4 | 01643-31645 | WASHER | 1001- | |
| 5 | 8221-70-1111 | BRACKET | 1020- | |
| 8221-70-1110 | BRACKET | 1001-1019 | ||
| 6 | 07042-00108 | PLUG | 1001- | |
| 7 | 07020-00000 | FITTING | 1001- | |
| 8 | 01010-51655 | BOLT | 1001- | |
| 9 | 01643-31645 | WASHER | 1001- | |
| 10 | 566-43-41330 | BOLT | 1001- | |
| 11 | 01643-31445 | WASHER | 1001- | |
| 12 | 01580-01411 | NUT | 1001- | |
| 13 | (706-77-01210) | MOTOR ASS'Y | 1020- | |
| 8221-60-1210 | MOTOR | 1001-1019 | ||
| 14 | 8221-70-1121 | SHAFT | 1020- | |
| 8221-70-1120 | SHAFT | 1001-1019 | ||
| 15 | 04000-01585 | KEY | 1001- | |
| 16 | 06003-02214 | BEARING | 1001- | |
| 17 | 07000-05150 | O-RING | 1001- | |
| 18 | 01010-52475 | BOLT | 1020- | |
| 01010-52060 | BOLT | 1001-1019 | ||
| 19 | 01643-32460 | WASHER | 1020- | |
| 01643-32060 | WASHER | 1001-1019 | ||
| 20 | 8221-70-1160 | COLLAR | 1001- | |
| 21 | 8221-70-1170 | COLLAR | 1001- | |
| 22 | 07012-00105 | SEAL | 1001- | |
| 23 | 04080-06012 | HOLDER | 1001- | |
| 24 | 01010-51230 | BOLT | 1001- | |
| 25 | 04081-06012 | LOCK | 1001- |
