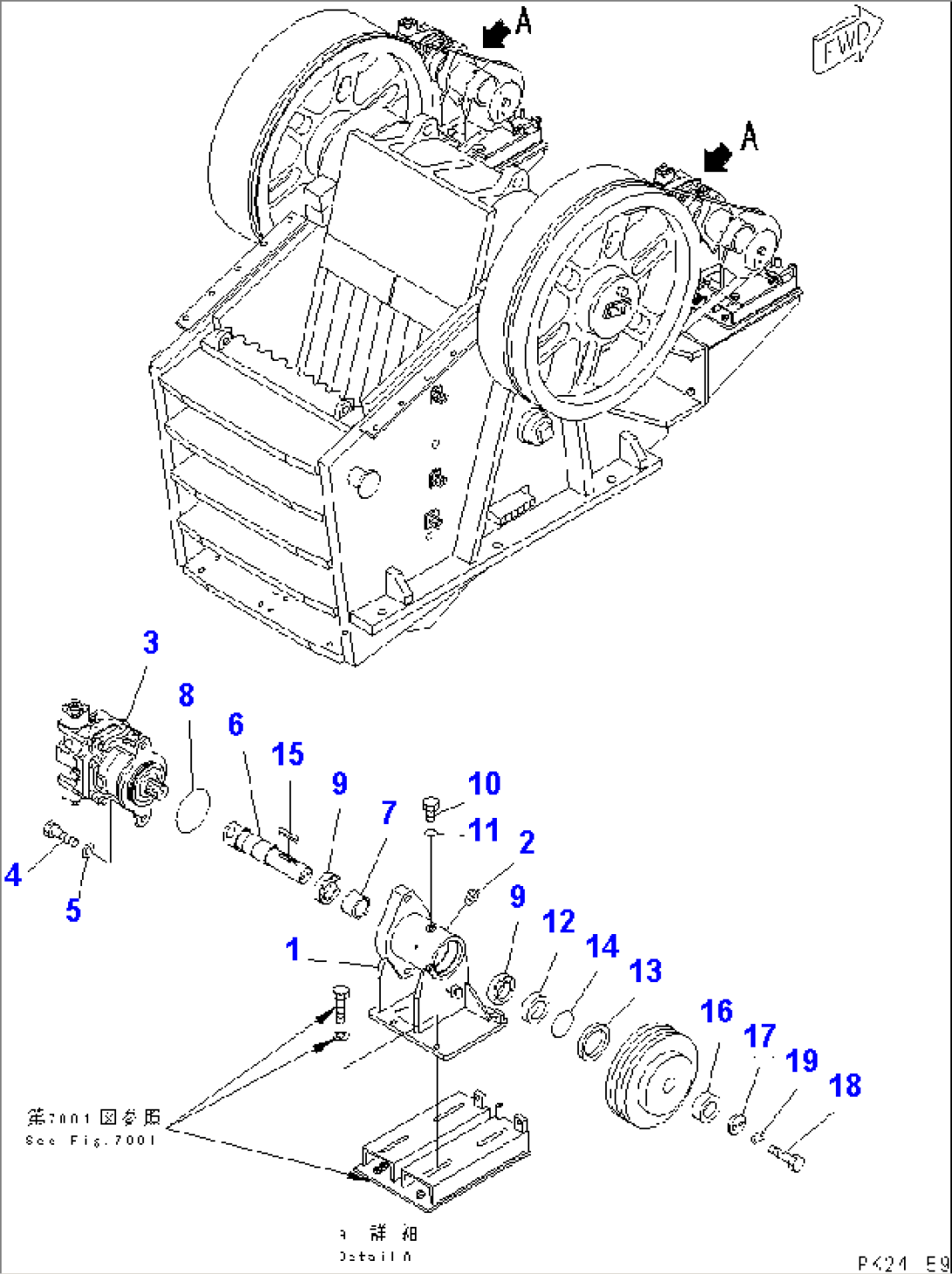

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-70-1120 | BRACKET | 1002-1200 | |
| 2 | 07042-00108 | PLUG | 1002-1200 | |
| 3 | (706-77-01220) | MOTOR ASS'Y | 1002-@ | |
| 4 | 01010-52475 | BOLT | 1002-@ | |
| 5 | 01643-32460 | WASHER | 1002-@ | |
| 6 | 8221-70-1121 | SHAFT | 1002-1200 | |
| 7 | 8221-70-1160 | COLLAR | 1002-1200 | |
| 8 | 07000-05150 | O-RING | 1002-1200 | |
| 9 | 06003-02214 | BEARING | 1002-1200 | |
| 10 | 07040-11612 | PLUG | 1002-@ | |
| 11 | 07002-01623 | O-RING | 1002-@ | |
| 12 | 8233-70-1170 | COLLAR | 1002-1200 | |
| 13 | 07012-00105 | SEAL | 1002-1200 | |
| 14 | 07000-02070 | O-RING | 1002-1200 | |
| 15 | 04000-01585 | KEY | 1002-1200 | |
| 16 | 8233-70-1180 | SPACER | 1002-1200 | |
| 17 | 04080-06012 | HOLDER | 1002-1200 | |
| 18 | 01010-51230 | BOLT | 1002-1200 | |
| 19 | 04081-06012 | LOCK | 1002-1200 |
