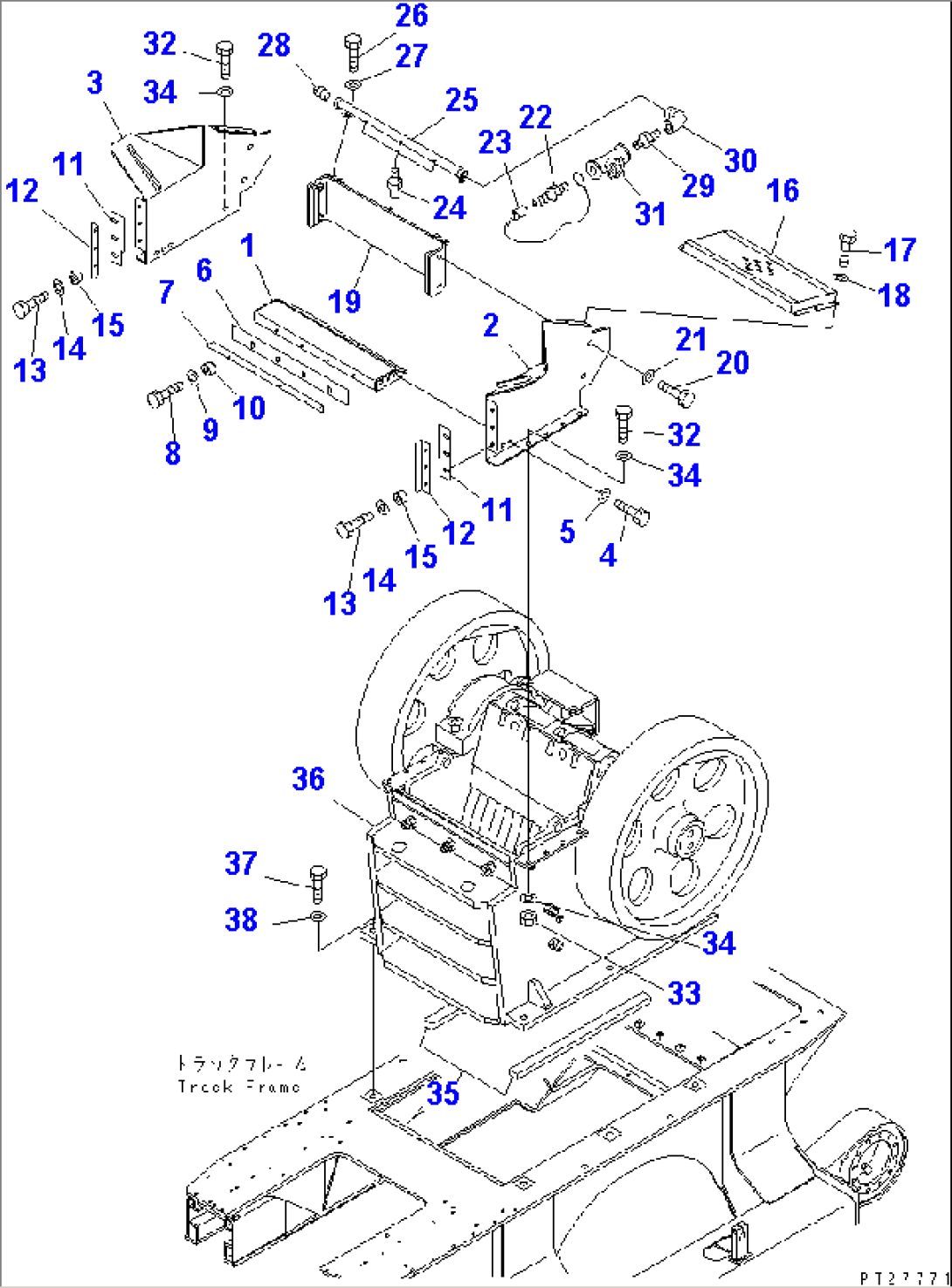

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8206-70-6160 | CHUTE | 1101- | |
| 2 | 8206-70-6140 | CHUTE | 1101- | |
| 3 | 8206-70-6150 | CHUTE | 1101- | |
| 4 | 01010-81230 | BOLT | 1101- | |
| 5 | 01643-31645 | WASHER | 1101- | |
| 6 | 8206-70-3410 | PLATE | 1101- | |
| 7 | 8206-70-3420 | ANGLE | 1101- | |
| 8 | 01010-81035 | BOLT | 1002- | |
| 9 | 01643-31032 | WASHER | 1002- | |
| 10 | 567-54-11610 | SPACER | 1002- | |
| 11 | 8206-70-4210 | PLATE | 1002- | |
| 12 | 8206-70-3390 | PLATE | 1002- | |
| 13 | 01010-81035 | BOLT | 1002- | |
| 14 | 01643-31032 | WASHER | 1002- | |
| 15 | 567-54-11610 | SPACER | 1002- | |
| 16 | 8206-70-3341 | COVER | 1002- | |
| 17 | 01010-81025 | BOLT | 1002- | |
| 18 | 01643-31032 | WASHER | 1002- | |
| 19 | 8206-70-3290 | GUARD | 1002- | |
| 20 | 01010-81640 | BOLT | 1002- | |
| 21 | 421-70-11280 | WASHER | 1002- | |
| 22 | 8206-70-1321 | JOINT | 1101- | |
| 23 | 8208-35-1160 | CAP | 1101- | |
| 24 | 8206-70-1211 | NOZZLE | 1101- | |
| 25 | 8206-75-3160 | TUBE | 1101- | |
| 26 | 01010-81020 | BOLT | 1101- | |
| 27 | 01643-31232 | WASHER | 1101- | |
| 28 | 07042-00415 | PLUG | 1101- | |
| 29 | 131-04-54120 | NIPPLE | 1101- | |
| 30 | 07323-30400 | ELBOW | 1101- | |
| 31 | 07700-50455 | VALVE | 1101- | |
| 32 | 01010-81640 | BOLT | 1101- | |
| 33 | 01580-01613 | NUT | 1101- | |
| 34 | 01643-31645 | WASHER | 1101- | |
| 35 | 8206-70-3370 | SHEET | 1002- | |
| 36 | (8206-70-3503) | CRUSHER ASS'Y | 1101- | |
| 37 | 01010-82080 | BOLT | 1002- | |
| 38 | 01643-32060 | WASHER | 1002- |
