| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-T65-1121 | EDGE,(MODIFIED PART) (WELDED) | 10001- | |
| 2 | 419-838-1110 | EDGE,CENTER | 10001- | |
| 3 | 421-838-1110 | EDGE,SIDE | 10001- | |
| 4 | 02090-11690 | BOLT | 10001- | |
| 5 | 01643-22460 | WASHER | 10001- | |
| 6 | 02290-11625 | NUT | 10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250 1 s/n 10001 up
- Work equipment
- Cutting edge (segment type)
Поиск по каталогу

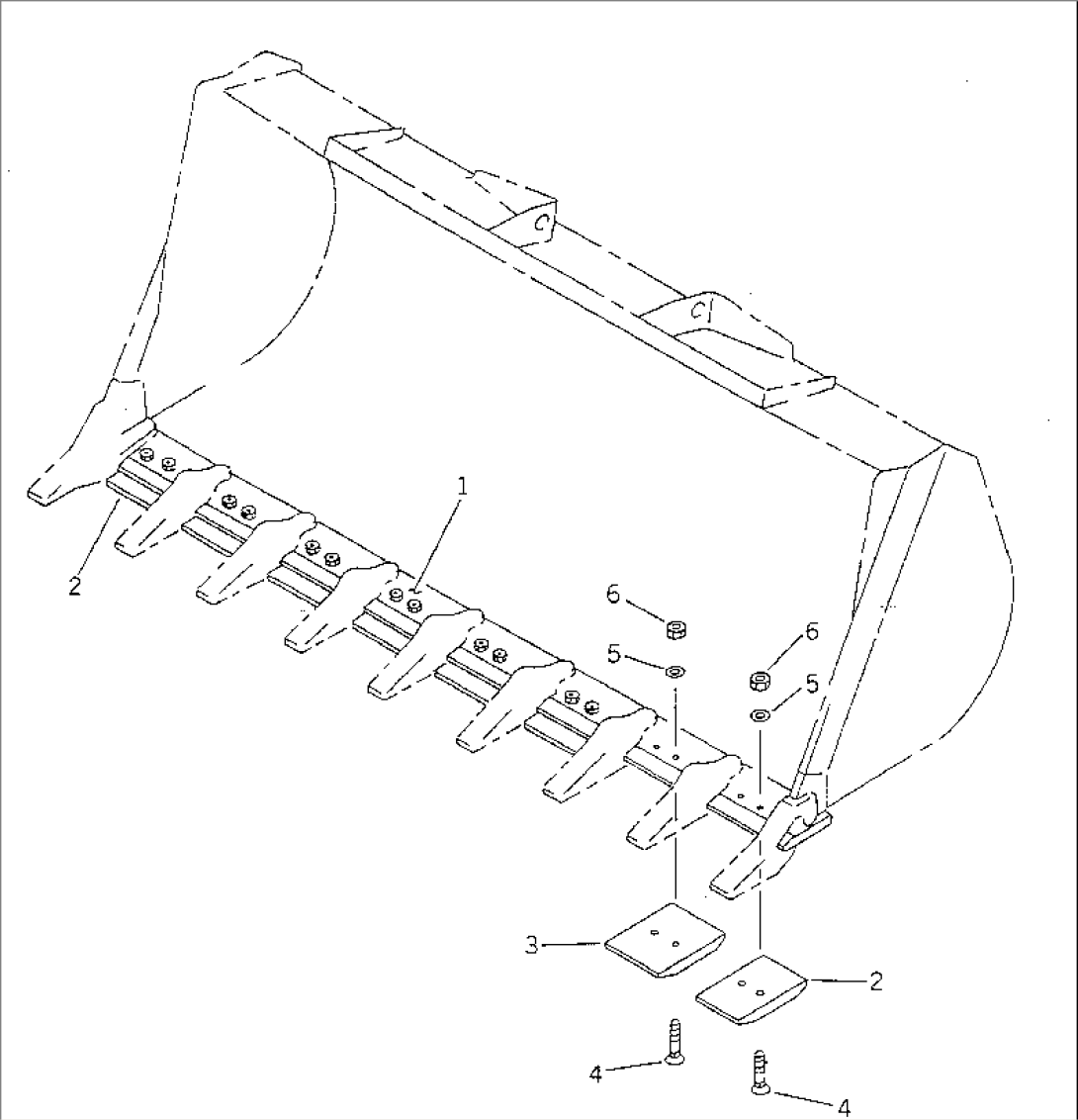

CUTTING EDGE (SEGMENT TYPE)
