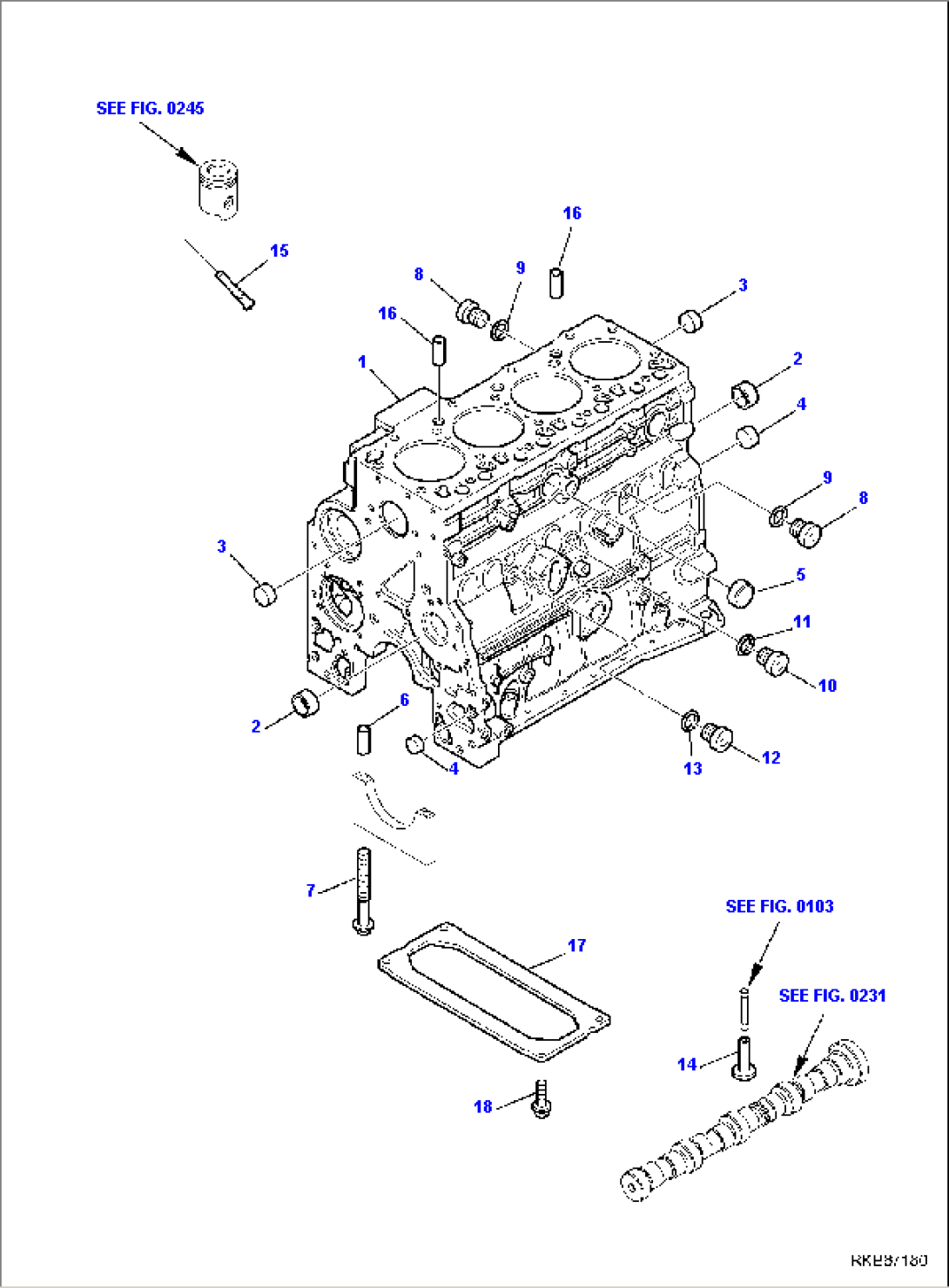

| Item | Part No. | Part Name | Qty | Serial No. |
| \0.99 | EA2830083 | BLOCK ASSEMBLY, CYLINDER | ||
| 1 | \6\ | BLOCK, CYLINDER | ||
| 2 | EA4895040 | BEARING | ||
| 3 | EA4895038 | PLUG | ||
| 4 | EA4895039 | PLUG | ||
| 5 | EA4895228 | PLUG | ||
| 6 | EA4899026 | DOWEL | ||
| 7 | EA4891353 | BOLT | ||
| 8 | EA4895392 | PLUG | ||
| 9 | EA4895393 | O-RING | ||
| 10 | EA4895605 | PLUG | ||
| 11 | EA4899115 | O-RING | ||
| 12 | EA4899009 | PLUG | ||
| 13 | EA4899072 | O-RING | ||
| 14 | EA4895180 | TAPPET | ||
| 15 | EA4896865 | ORIFICE DISK | ||
| 16 | EA4895049 | DOWEL | ||
| 17 | EA504076109 | PLATE | ||
| 18 | EA4899032 | BOLT | ||
| SEE FIG. 0103 | ||||
| SEE FIG. 0231 | ||||
| SEE FIG. 0245 |
