| Item | Part No. | Part Name | Qty | Serial No. |

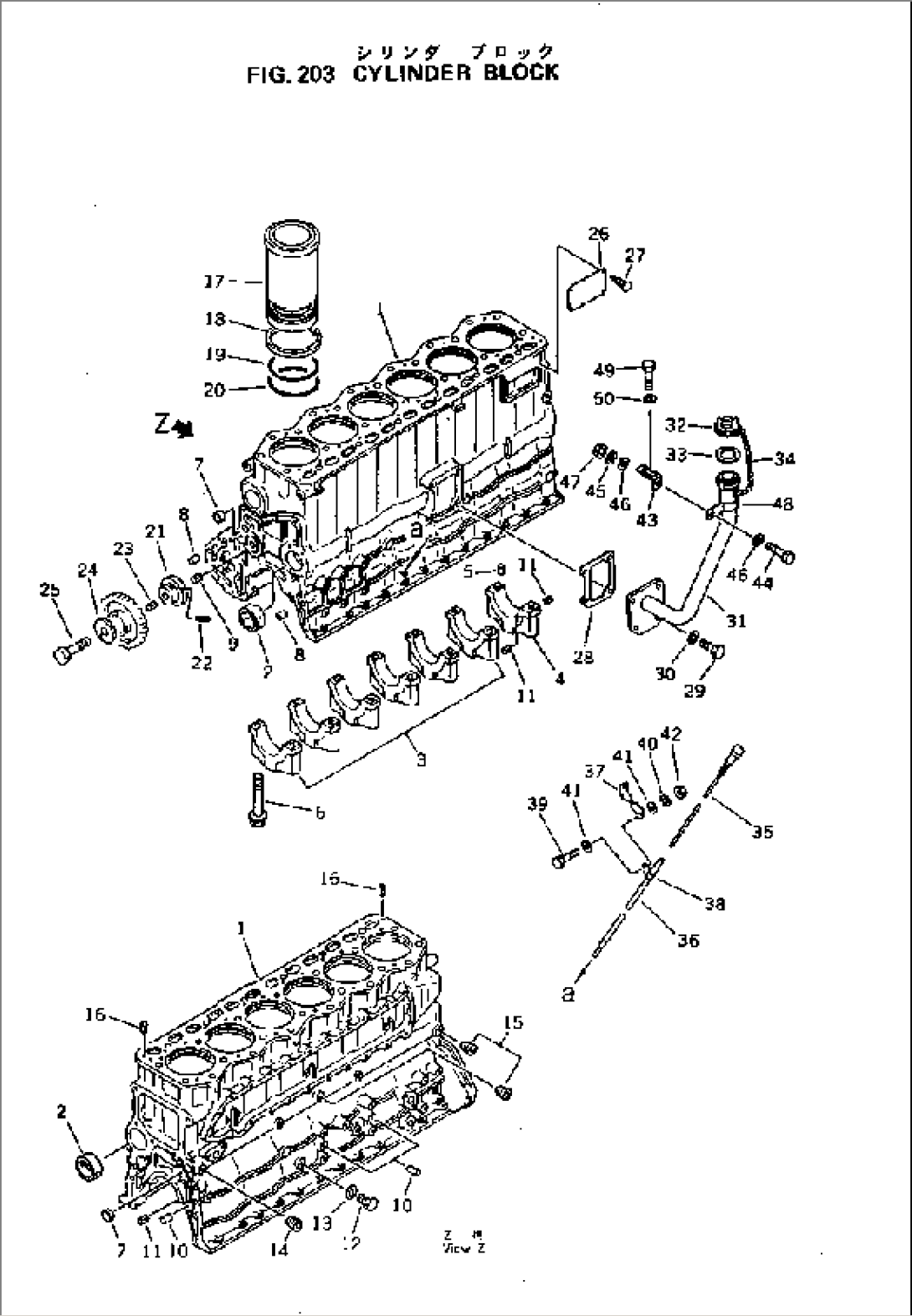

| 6136-22-1020 | CYLINDER BLOCK ASS'Y | 52271- | ||
| 6136-22-1101 | CYLINDER BLOCK A. | 52271- | ||
| 1 | \6\ | BLOCK,CYLINDER | 52271- | |
| 2 | 6136-21-1410 | BUSHING,CAMSHAFT | 52271- | |
| 3 | \5\6136-29-1210 | CAP,MAIN METAL | 52271- | |
| 4 | \5\6136-29-1220 | CAP,MAIN METAL | 52271- | |
| 5 | 04020-00514 | PIN,DOWEL | 52271- | |
| 6 | 6136-22-1710 | BOLT | 52271- | |
| 7 | 6130-11-1420 | PLUG,EXPANSION | 52271- | |
| 8 | 6136-21-1911 | PIN,DOWEL | 52271- | |
| 9 | 04025-00512 | PIN,SPRING | 52271- | |
| 10 | 04020-01228 | PIN,DOWEL | 52271- | |
| 11 | 04025-00408 | PIN,SPRING | 52271- | |
| 12 | 07040-11209 | PLUG | 52271- | |
| 13 | 07005-01212 | SEAL, WASHER (K2) | 52271- | |
| 14 | 07043-50211 | PLUG | 52271- | |
| 15 | 07043-50108 | PLUG | 52271- | |
| 16 | 04025-00820 | PIN,SPRING | 52271- | |
| 17 | 6136-21-2210 | LINER,CYLINDER | 52271- | |
| 18 | 6136-21-2220 | SEAL,CREVICE (K2) | 52271- | |
| 19 | 6136-21-2230 | O-RING,UPPER (K2) | 52271- | |
| 20 | 6136-21-2240 | O-RING,LOWER (K2) | 52271- | |
| 21 | 6136-21-2410 | SHAFT,IDLER | 52271- | |
| 22 | 04025-00316 | PIN,SPRING | 52271- | |
| 23 | 04025-00512 | PIN,SPRING | 52271- | |
| 24 | 6136-21-2420 | PLATE | 52271- | |
| 25 | 01010-31275 | BOLT | 52271- | |
| 26 | 09605-01332 | PLATE, NAME,(ENGLISH) (LIMITED SUPPLY) | 52271- | |
| 27 | 04418-02550 | SCREW | 52271- | |
| 28 | 6136-21-7811 | GASKET (K2) | 52271- | |
| 29 | 01010-31030 | BOLT | 52271- | |
| 30 | 01602-01030 | WASHER,SPRING | 52271- | |
| 6136-21-7300 | OIL FILLER ASS'Y | 52271- | ||
| 31 | 6136-21-7280 | FILLER,OIL | 52271- | |
| 32 | 6136-21-7120 | CAP ASS'Y | 52271- | |
| 33 | 6136-21-7180 | GASKET | 52271- | |
| 34 | 6136-21-7190 | CHAIN | 52271- | |
| 35 | 6135-21-5320 | GAUGE,OIL | 52271- | |
| 36 | 6136-21-5460 | GUIDE,OIL GAUGE | 52271- | |
| 37 | 6136-21-5650 | BRACKET | 52271- | |
| 38 | 6114-21-5170 | CLAMP | 52271- | |
| 39 | 01010-30820 | BOLT | 52271- | |
| 40 | 01602-00825 | WASHER,SPRING | 52271- | |
| 41 | 01641-20812 | WASHER | 52271- | |
| 42 | 01580-00806 | NUT | 52271- | |
| 43 | 6136-71-5730 | BRACKET | 52271- | |
| 44 | 01010-30820 | BOLT | 52271- | |
| 45 | 01602-00825 | WASHER,SPRING | 52271- | |
| 46 | 01641-20812 | WASHER | 52271- | |
| 47 | 01580-00806 | NUT | 52271- | |
| 48 | 6128-11-5872 | CLAMP | 52271- | |
| 49 | 01010-31025 | BOLT | 52271- | |
| 50 | 01641-01016 | WASHER | 52271- |
