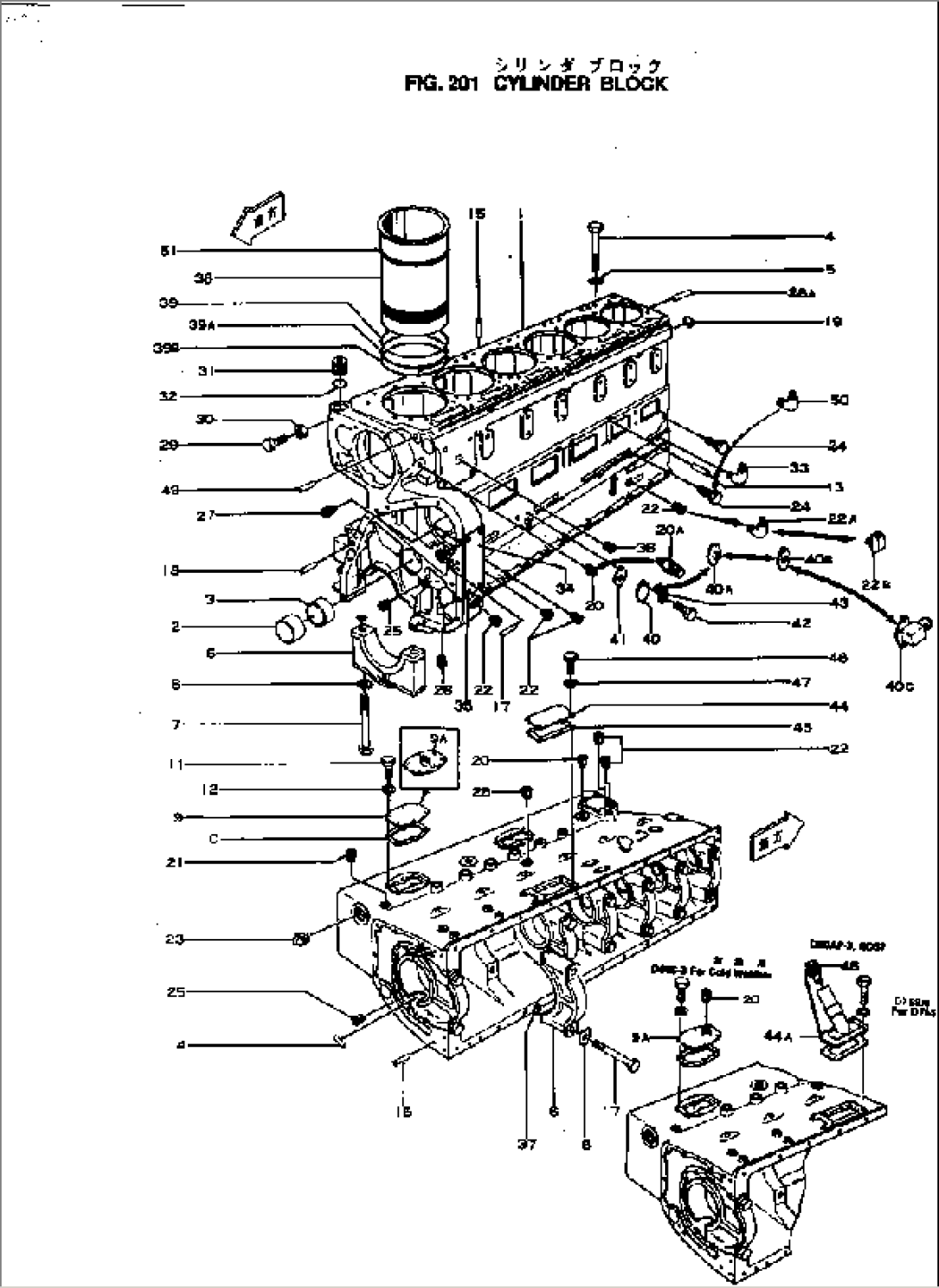

CYLINDER BLOCK

CYLINDER BLOCK
ItemPart No.Part NameQtySerial No.
6691-20-1003CYLINDER BLOCK A.26818-
\0\6691-20-1002CYLINDER BLOCK A.24272-26817
\0\6691-20-1001CYLINDER BLOCK A.22486-24271
6691-20-1000CYLINDER BLOCK A.8013-22485
6691-20-1103CYLINDER BLOCK A.26818-
\0\6691-20-1102CYLINDER BLOCK A.24272-26817
\0\6691-20-1101CYLINDER BLOCK A.22486-24271
6691-20-1100CYLINDER BLOCK A.8013-22485
1\6\BLOCK,CYLINDER24272-
\6\BLOCK,CYLINDER22486-24271
\6\BLOCK,CYLINDER8013-22485
6610-21-1040BUSHING ASS'Y,CAMSHAFT8013-
26610-21-1410BUSHING,FRONT8013-
36610-21-1420BUSHING8013-
46610-11-1611BOLT,CYLINDER HEAD8013-
56610-11-1620WASHER8013-
66610-21-1210CAP,MAIN METAL¤ NO.1¤3¤58013-
\5\6610-29-1210CAP,MAIN METAL¤ NO.1¤3¤58013-
6610-21-1220CAP,MAIN METAL¤ NO.2¤4¤68013-
\5\6610-29-1220CAP,MAIN METAL¤ NO.2¤4¤68013-
6610-21-1231CAP,MAIN METAL¤ REAR26818-
6610-21-1230CAP,MAIN METAL¤ REAR8013-26817
\5\6610-29-1231CAP,MAIN METAL¤ REAR26818-
\5\6610-29-1230CAP,MAIN METAL¤ REAR8013-26817
76610-21-1710BOLT,MAIN METAL CAP8013-
86610-21-1720WASHER,LOCK8013-
96610-21-6710COVER,WATER HEADER8013-
106610-21-6720GASKET (K4)8013-
1102010-20419BOLT8013-
1202310-10916WASHER,SPRING8013-
1302400-20416PIN,DOWEL8013-
146610-21-1270PIN,DOWEL¤ MAIN METAL CAP8013-
6610-29-1270PIN,DOWEL¤ MAIN METAL CAP (OS)8013-
156610-11-1410PIN,DOWEL¤ CYLINDER HEAD8013-
166610-21-4570PIN,DOWEL¤ FLYWHEEL HOUSING8013-
176620-21-3610PIN,DOWEL¤ GEAR CASE COVER8013-
186620-21-3620PIN,DOWEL¤ GEAR CASE COVER8013-
2002720-20608PLUG,WATER HEADER8013-
2102720-20607PLUG,DRAIN¤ WATER24212-
\0\6600-01-2820PLUG,DRAIN¤ WATER8013-24211
2202720-20809PLUG8013-
22B6691-51-9941ELBOW,BYPASS FILTER31949-
6691-51-9940ELBOW,BYPASS FILTER8013-31948
236710-21-1260PLUG,WATER HEADER.-
\0\6600-01-2890PLUG,WATER HEADER8013-.
246610-21-2720PLUG,OIL HEADER8013-
2502720-10607PLUG.-
\0\6600-01-2860PLUG8013-.
2602720-21214PLUG8013-
2702720-21214PLUG8013-
2802720-20204PLUG8013-
28A6610-21-2770PIN,STOPPER8013-
2902010-20416BOLT,WATER BYPASS8013-.
3002206-10404NUT,WATER BYPASS8013-.
316610-21-2730PLUG,WATER BYPASS8013-.
3202892-03031O-RING (K4)8013-.
336610-81-8820ELBOW,PRESSURE GAUGE8013-
346620-81-1117PLATE¤ NAME,(LIMITED SUPPLY).-
\0\6620-81-1116PLATE¤ NAME,(LIMITED SUPPLY)9278-.
\0\6620-81-1115PLATE¤ NAME,(LIMITED SUPPLY)8013-9277
6620-81-1123PLATE¤ NAME,(EXCEPT JAPAN).-
6620-81-1122PLATE¤ NAME,(EXCEPT JAPAN)12001-.
6620-81-1121PLATE¤ NAME,(EXCEPT JAPAN)8013-12000
3504418-02550SCREW8013-
3602720-20809PLUG8013-
376610-21-1730RING,DOWEL8013-
386610-21-2212LINER,CYLINDER8013-
396610-21-2240SEAL,CREVICE¤ CYLINDER LINER (K4)8013-
39A6610-21-2221O-RING (K4)8013-
39B6610-21-2250O-RING (K4)8013-
40B(6691-51-9930)FLANGE,SUCTION8013-
416610-21-5670GASKET (K4)8013-
4202010-30632BOLT8013-
4302310-11224WASHER,SPRING8013-
446643-21-6761COVER,HAND HOLE24212-
\0\6643-21-6760COVER,HAND HOLE8013-24211
456623-21-6770GASKET (K4)8013-
4602010-20625BOLT8013-
4702310-11224WASHER,SPRING8013-
496610-21-2790PIN,DOWEL8013-
516610-29-2230SHIM¤ 0.18MM,CYLINDER LINER8013-
6610-28-2230SHIM¤ 0.20MM,CYLINDER LINER8013-
6610-27-2230SHIM¤ 0.23MM,CYLINDER LINER8013-
6610-26-2230SHIM¤ 0.51MM,CYLINDER LINER8013-
6610-25-2230SHIM¤ 0.79MM,CYLINDER LINER8013-
6610-24-2230SHIM¤ 1.57MM,CYLINDER LINER8013-
