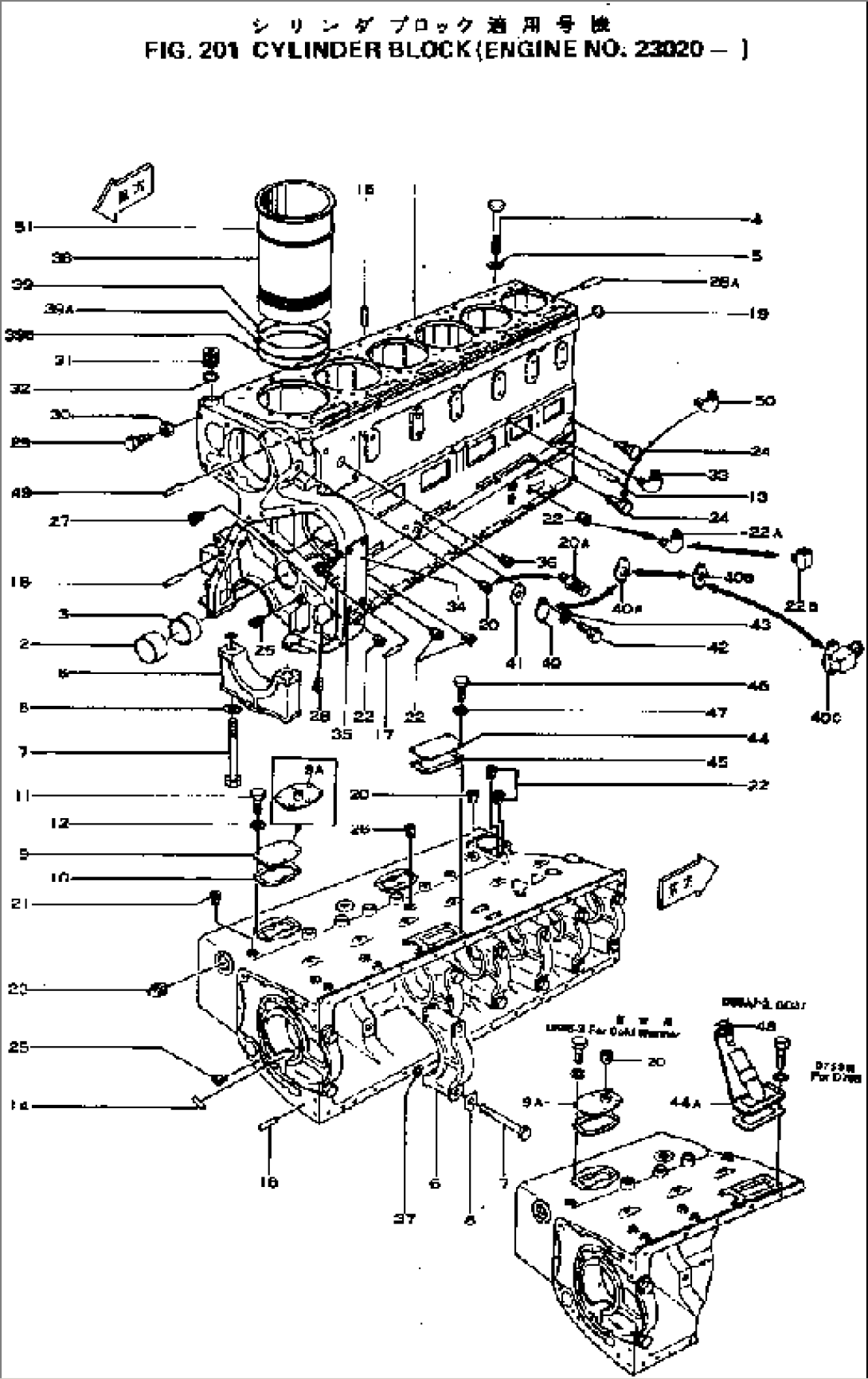

CYLINDER BLOCK

CYLINDER BLOCK
ItemPart No.Part NameQtySerial No.
6678-20-1012CYLINDER BLOCK ASS'Y31628-
\0\6678-20-1011CYLINDER BLOCK ASS'Y31520-31627
6678-20-1010CYLINDER BLOCK ASS'Y23020-31519
6693-20-1023CYLINDER BLOCK A.26818-
\0\6693-20-1022CYLINDER BLOCK A.23020-26817
1\6\BLOCK,CYLINDER23020-
6610-21-1040BUSHING ASS'Y,CAMSHAFT23020-
26610-21-1410BUSHING,FRONT23020-
36610-21-1420BUSHING23020-
46610-11-1611BOLT,CYLINDER HEAD23020-
56610-11-1620WASHER23020-
66610-21-1210CAP,MAIN METAL, NO.1,3,523020-
6\5\6610-29-1210CAP,MAIN METAL, NO.1,3,523020-
66610-21-1220CAP,MAIN METAL, NO.2,4,623020-
6\5\6610-29-1220CAP,MAIN METAL, NO.2,4,623020-
66610-21-1231CAP,MAIN METAL, REAR26818-
66610-21-1230CAP,MAIN METAL, REAR23020-26817
6\5\6610-29-1231CAP,MAIN METAL, REAR26818-
6\5\6610-29-1230CAP,MAIN METAL, REAR23020-26817
76610-21-1710BOLT,MAIN METAL CAP23020-
86610-21-1720WASHER,LOCK23020-
96610-21-6710COVER,WATER HEADER23020-
9A6693-22-6710COVER,WATER HEADER23020-
106610-21-6720GASKET (K3)23020-
1102010-20419BOLT23020-
1202310-10916WASHER,SPRING23020-
1302400-20416PIN,DOWEL23020-
146610-21-1270PIN,DOWEL, MAIN METAL CAP23020-
146610-29-1270PIN,DOWEL, MAIN METAL CAP (OS)23020-
156610-11-1410PIN,DOWEL, CYLINDER HEAD23020-
166610-21-4570PIN,DOWEL, FLYWHEEL HOUSING23020-
176620-21-3610PIN,DOWEL, GEAR CASE COVER23020-
186620-21-3620PIN,DOWEL, GEAR CASE COVER23020-
2002720-20608PLUG,WATER HEADER31628-
2002720-20608PLUG,WATER HEADER23020-31627
2002720-20608PLUG,(COLD WEATHER SPEC.)23020-
20A6684-91-4230NIPPLE38805-
20A6684-91-4231NIPPLE23020-38804
2102720-20607PLUG,DRAIN, WATER23020-
2202720-20809PLUG23020-
22A02701-11208ELBOW,BYPASS FILTER23020-
236710-21-1260PLUG,WATER HEADER.-
23\0\6600-01-2890PLUG,WATER HEADER23020-.
246610-21-2720PLUG,OIL HEADER23020-
2502720-10607PLUG.-
25\0\6600-01-2860PLUG23020-.
2602720-21214PLUG23020-
2702720-21214PLUG23020-
2802720-20204PLUG23020-
28A6610-21-2770PIN,STOPPER23020-
2902010-20416BOLT,WATER BYPASS23020-.
3002206-10404NUT,WATER BYPASS23020-.
316610-21-2730PLUG,WATER BYPASS23020-.
3202892-03031O-RING (K4)23020-.
336610-81-8820ELBOW,PRESSURE GAUGE23020-
346678-81-1110PLATE, NAME,(LIMITED SUPPLY)23020-
346620-81-1123PLATE, NAME,(EXCEPT JAPAN).-
346620-81-1122PLATE, NAME,(EXCEPT JAPAN)12001-.
346620-81-1121PLATE, NAME,(EXCEPT JAPAN)23020-12000
3504418-02550SCREW23020-
3602720-20809PLUG23020-
376610-21-1730RING,DOWEL23020-
386610-21-2212LINER,CYLINDER23020-
396610-21-2240SEAL,CREVICE, CYLINDER LINER (K4)23020-
39A6610-21-2221O-RING (K4)23020-
39B6610-21-2250O-RING (K4)23020-
416610-21-5670GASKET (K4)23020-
4202030-20625BOLT23020-
4302310-11224WASHER,SPRING23020-
446643-21-6761COVER,HAND HOLE23020-
456623-21-6770GASKET (K4)23020-
4602010-20625BOLT23020-
4702310-11224WASHER,SPRING23020-
496610-21-2790PIN,DOWEL23020-
516610-29-2230SHIM, 0.18MM,CYLINDER LINER23020-
516610-28-2230SHIM, 0.20MM,CYLINDER LINER23020-
516610-27-2230SHIM, 0.23MM,CYLINDER LINER23020-
516610-26-2230SHIM, 0.51MM,CYLINDER LINER23020-
516610-25-2230SHIM, 0.79MM,CYLINDER LINER23020-
516610-24-2230SHIM, 1.57MM,CYLINDER LINER23020-
