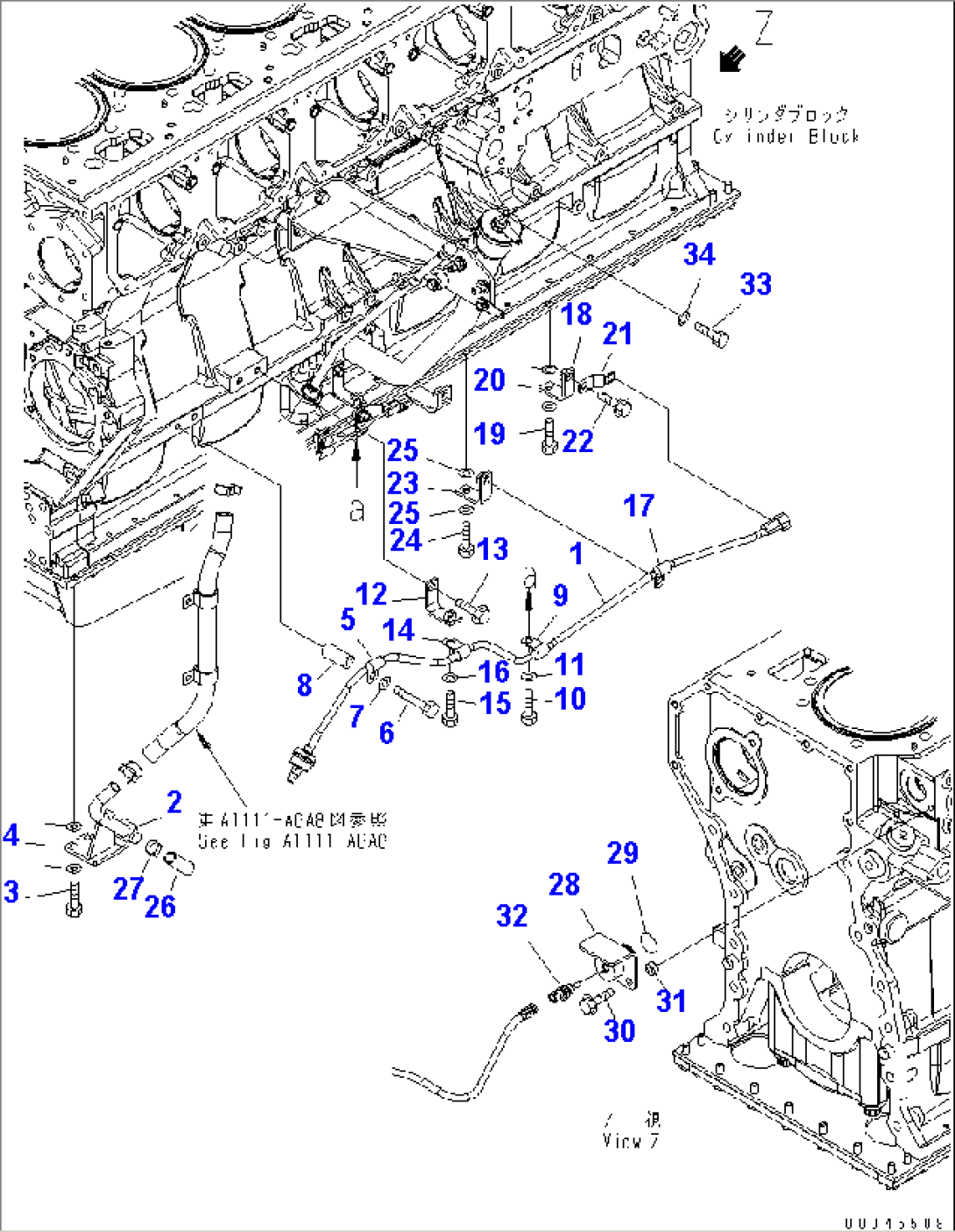

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6218-81-4111 | SENSOR ASS'Y,BLOWBY | 610272-610963 | |
| 2 | 6245-21-6220 | TUBE | 610272-610963 | |
| 3 | 01010-81050 | BOLT | 610272-610963 | |
| 4 | 01643-31032 | WASHER | 610272-610963 | |
| 5 | 600-051-2100 | CLIP | 610829-610963 | |
| 5 | 600-051-2080 | CLIP | 610272-610828 | |
| 6 | 01010-81065 | BOLT | 610272-610963 | |
| 7 | 01643-31032 | WASHER | 610272-610963 | |
| 8 | 6152-21-6590 | SPACER | 610272-610963 | |
| 9 | 600-051-2100 | CLIP | 610829-610963 | |
| 9 | 600-051-2080 | CLIP | 610272-610828 | |
| 10 | 01010-81020 | BOLT | 610272-610963 | |
| 11 | 01643-31032 | WASHER | 610272-610963 | |
| 12 | 6934-71-5860 | BRACKET | 610272-610963 | |
| 13 | 01435-01020 | BOLT | 610272-610963 | |
| 14 | 600-051-2100 | CLIP | 610829-610963 | |
| 14 | 600-051-2080 | CLIP | 610272-610828 | |
| 15 | 01010-81020 | BOLT | 610272-610963 | |
| 16 | 01643-31032 | WASHER | 610272-610963 | |
| 17 | 600-051-2100 | CLIP | 610829-610963 | |
| 17 | 600-051-2080 | CLIP | 610272-610828 | |
| 18 | 6934-71-5860 | BRACKET | 610272-610963 | |
| 19 | 01010-81055 | BOLT | 610272-610963 | |
| 20 | 01643-31032 | WASHER | 610272-610963 | |
| 21 | 08193-20010 | CLIP | 610272-610963 | |
| 22 | 01435-01016 | BOLT | 610272-610963 | |
| 23 | 6934-71-5860 | BRACKET | 610272-610963 | |
| 24 | 01010-81055 | BOLT | 610272-610963 | |
| 25 | 01643-31032 | WASHER | 610272-610963 | |
| 26 | 07286-01935 | HOSE | 610272-610963 | |
| 27 | 07285-00220 | CLIP | 610272-610963 | |
| 28 | 6245-21-6810 | ADAPTER | 610272-610963 | |
| 29 | 6240-61-6370 | O-RING | 610272-610963 | |
| 30 | 01435-01025 | BOLT | 610272-610963 | |
| 31 | 417-823-1460 | SPACER | 610272-610963 | |
| 32 | 6261-81-6900 | SENSOR ASS'Y,WATER TEMPERATURE | 610272-610963 | |
| 32 | 6261-81-6910 | SENSOR | 610272-610963 | |
| 32 | 6261-84-9740 | O-RING | 610272-610963 | |
| 33 | 01050-51012 | BOLT | 610272-610963 | |
| 34 | 07005-01012 | SEAL, WASHER | 610272-610963 |
