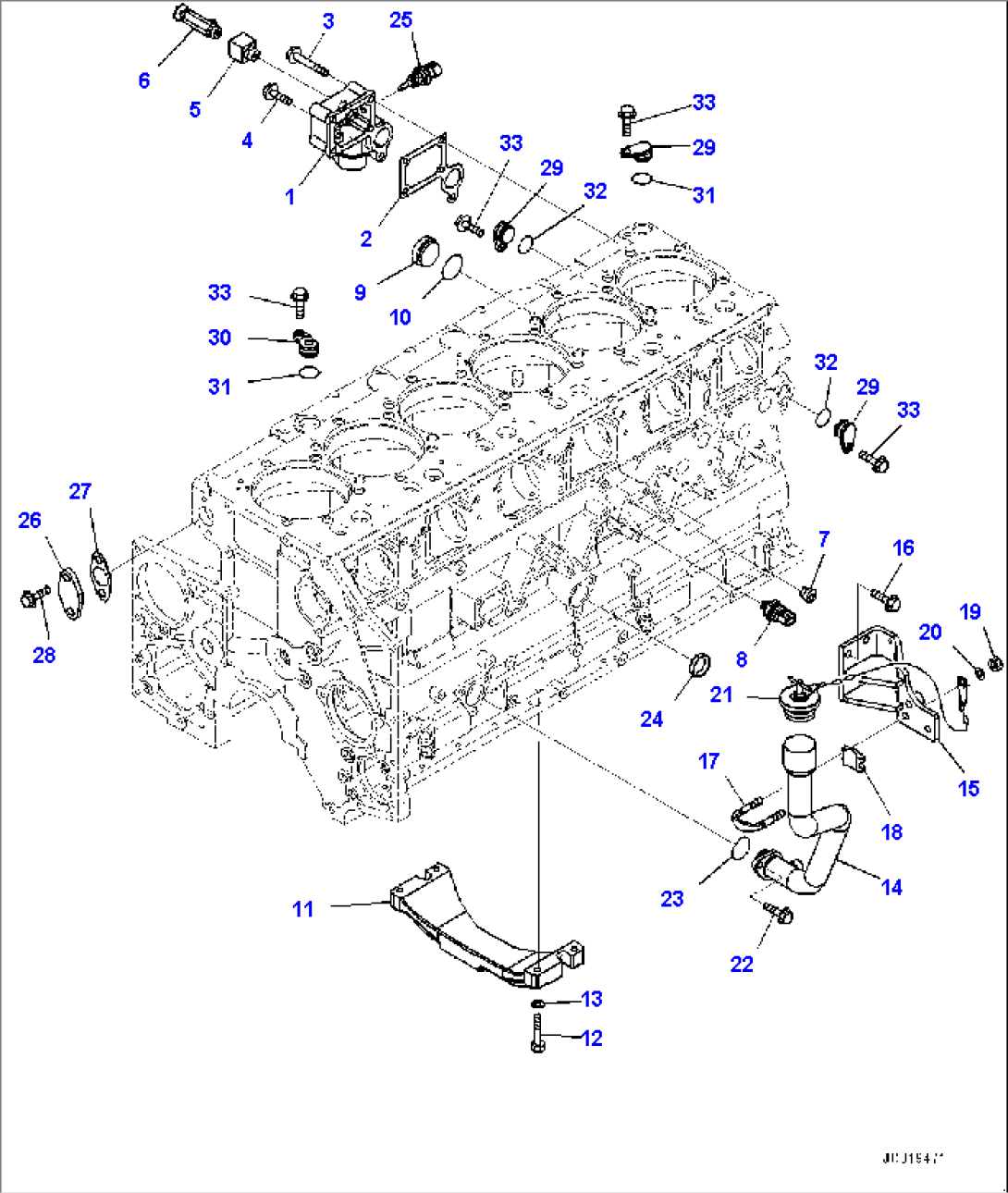

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6261-21-1990 | Cover | 535052- | |
| 2 | 6261-21-1970 | Gasket | 535052- | |
| 3 | 01435-01065 | Bolt | 535052- | |
| 4 | 01435-01035 | Bolt | 535052- | |
| 5 | 569-07-63340 | Joint | 535052- | |
| 6 | 09482-20000 | Valve, Water | 535052- | |
| 7 | 07043-70108 | Plug, Taper | 535052- | |
| 8 | 6219-81-1961 | Sensor, Oil Pressure | 535052- | |
| 8 | 6219-81-1991 | O-ring | 535052- | |
| 9 | 6150-21-1180 | Plug | 535052- | |
| 10 | 6150-21-1190 | O-ring | 535052- | |
| 11 | 6217-21-1220 | Bracket, Under Frame | 535052- | |
| 12 | 01010-81050 | Bolt | 535052- | |
| 13 | 01643-31032 | Washer | 535052- | |
| 14 | 6261-21-7330 | Filler, Oil | 535052- | |
| 15 | 6261-21-7340 | Bracket | 535052- | |
| 16 | 01435-01025 | Bolt | 535052- | |
| 17 | 07283-34354 | Clip, Pipe | 535052- | |
| 18 | 07283-54353 | Seat | 535052- | |
| 19 | 01597-01009 | Nut | 535052- | |
| 20 | 01643-31032 | Washer | 535052- | |
| 21 | 07025-00100 | Cap, Oil Filler | 535052- | |
| 22 | 01435-01020 | Bolt | 535052- | |
| 23 | 07000-73034 | O-ring | 535052- | |
| 24 | 07046-44016 | Plug | 535052- | |
| 25 | 6261-81-6901 | Sensor Assembly, Water Temperature | 535052- | |
| 25 | 6216-84-9740 | Seal | 535052- | |
| 26 | 6210-21-1950 | Flange | 535052- | |
| 27 | 6696-61-9921 | Gasket | 535052- | |
| 28 | 01435-01225 | Bolt | 535052- | |
| 29 | 6217-21-1940 | Cover | 535052- | |
| 30 | 6218-21-1940 | Cover | 535052- | |
| 31 | 6215-61-6630 | O-ring | 535052- | |
| 32 | 07000-73025 | O-ring | 535052- | |
| 33 | 01435-01020 | Bolt | 535052- |
