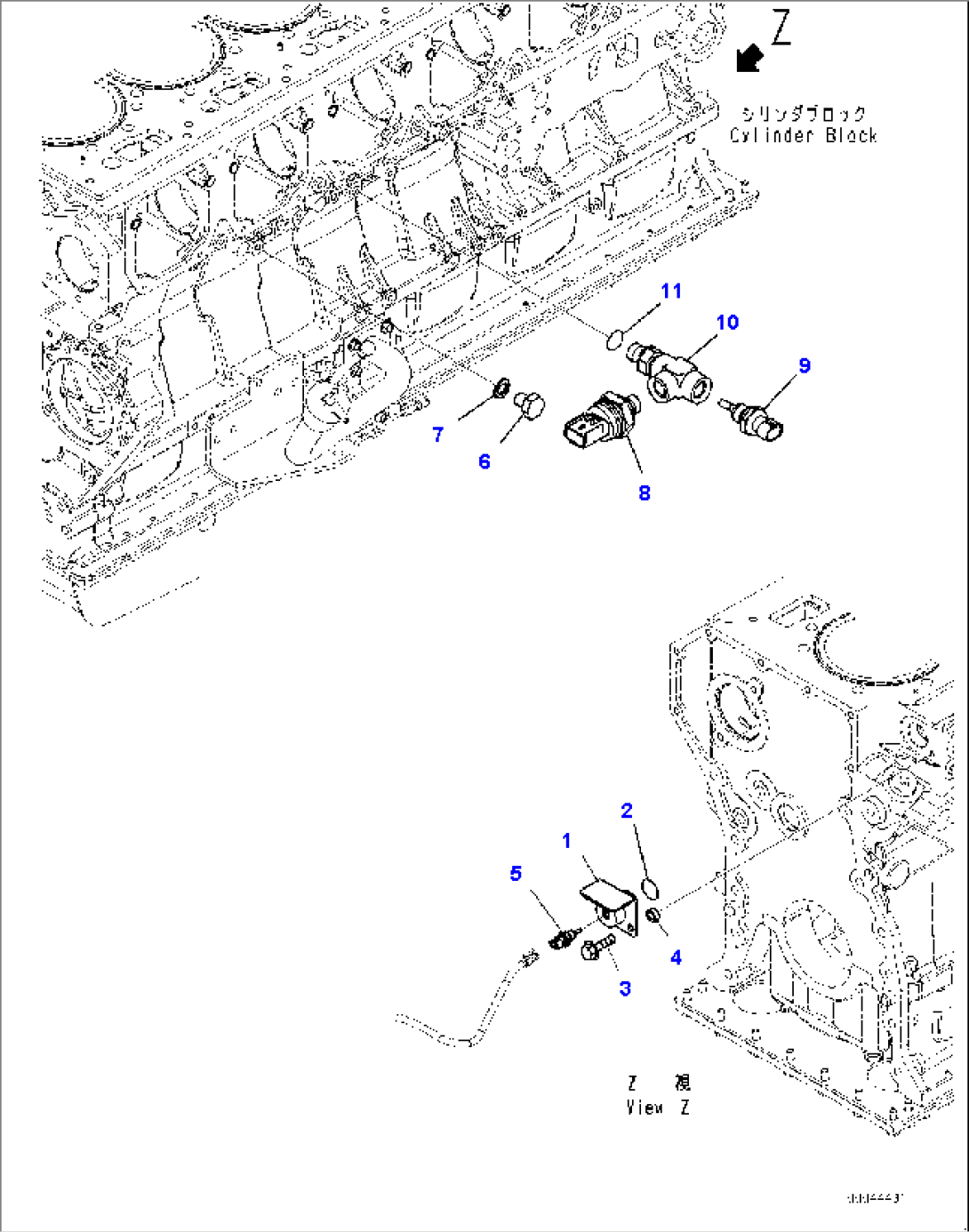

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6245-21-6810 | Adapter | 511668- | |
| 2 | 6240-61-6370 | O-ring | 511668- | |
| 3 | 01435-01025 | Bolt | 511668- | |
| 4 | 417-823-1460 | Spacer | 511668- | |
| 5 | 6261-81-6901 | Sensor Assembly, Water Temperature | 511668- | |
| 5 | 6216-84-9740 | Seal | 511668- | |
| 6 | 01050-51012 | Bolt | 511668- | |
| 7 | 07005-01012 | Seal, Washer | 511668- | |
| 8 | 6219-81-1961 | Sensor, Oil Pressure | 511668- | |
| 8 | 6219-81-1991 | O-ring | 511668- | |
| 9 | 6261-81-6901 | Sensor Assembly, Oil Temperature | 511668- | |
| 9 | 6216-84-9740 | Seal | 511668- | |
| 10 | 6245-71-5930 | Tee | 511668- | |
| 11 | 07002-21423 | O-ring | 511668- |
