| Item | Part No. | Part Name | Qty | Serial No. |

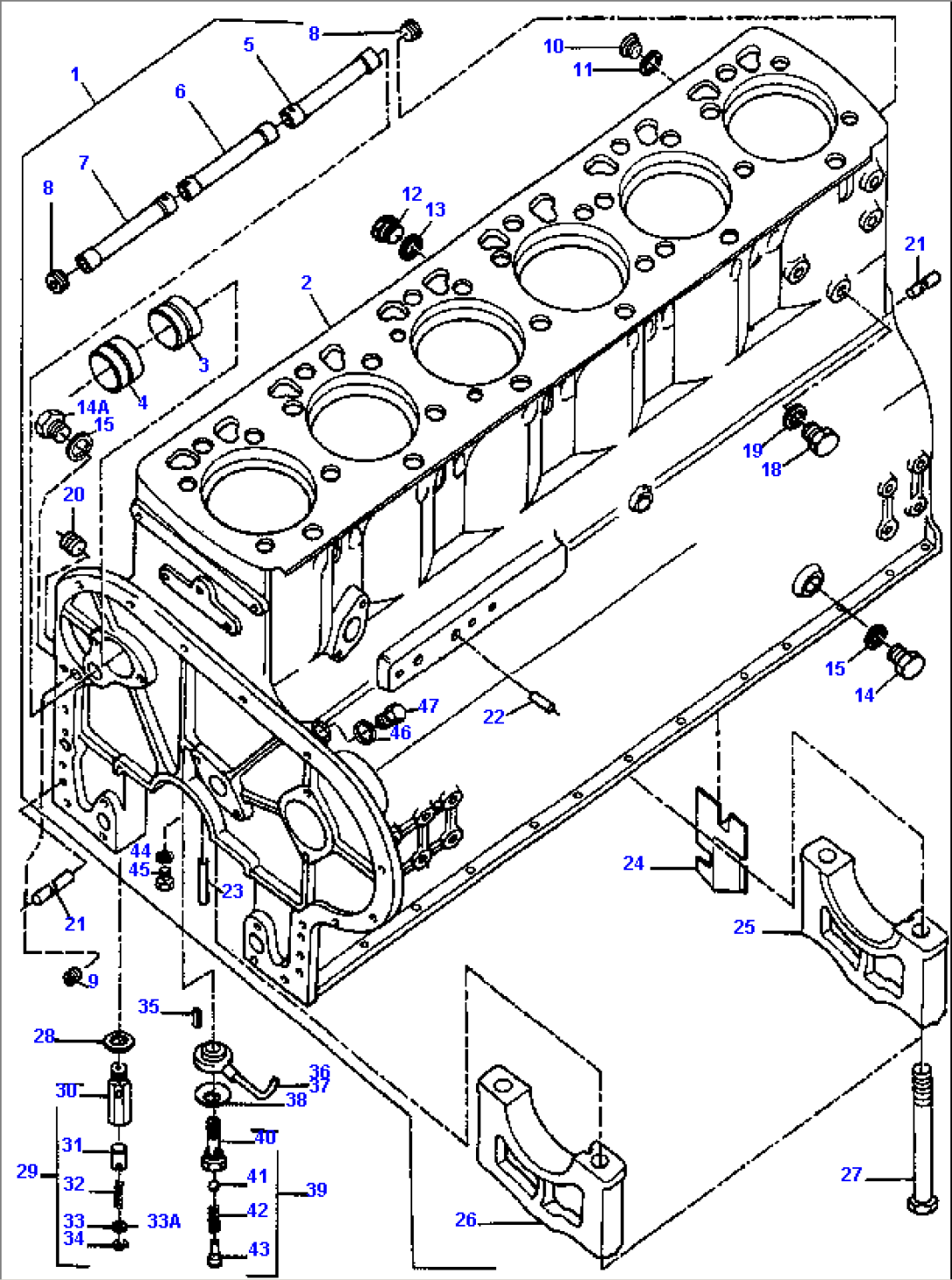

| 1 | 3090273M91 | CYLINDER BLOCK | ||
| SEAL KIT | ||||
| 2 | CYLINDER BLOCK | |||
| 3 | 2870803M1 | BEARING | ||
| 4 | 2870804M1 | BEARING | ||
| 5 | 2872175M1 | TUBE | ||
| 6 | 2872174M1 | TUBE | ||
| 7 | 2872173M1 | TUBE | ||
| 8 | 1443743X1 | PLUG | ||
| 9 | 1444256X1 | PLUG | ||
| 10 | 1444261X1 | PLUG | ||
| 11 | 1440993X1 | SEAL | ||
| 12 | 1444267X1 | SCREW | ||
| 13 | 1440997X1 | SEAL | ||
| 14 | 1443748X1 | PLUG | ||
| 14A | 390588X1 | PLUG | ||
| 15 | 391313X1 | SEAL | ||
| 16 | NOT USED | |||
| 17 | NOT USED | |||
| 18 | 1443750X1 | PLUG | ||
| 19 | 390839X1 | SEAL | ||
| 20 | 3004780X1 | PLUG | ||
| 21 | 1444406X1 | DOWEL | ||
| 22 | 1444402X1 | DOWEL | ||
| 23 | 1443800X1 | DOWEL | ||
| 24 | 2872172M1 | BAFFLE | ||
| 25 | BED BRACKET | |||
| 26 | BED BRACKET | |||
| 27 | 1444035X1 | SCREW | ||
| 28 | 1444747X1 | SEAL | ||
| 29 | 3093426M91 | VALVE | ||
| 30 | VALVE | |||
| 31 | 3093424M1 | POPPET | ||
| 32 | 3093425M1 | COMPRESSION SPRING | ||
| 33 | 2871742M1 | DISC | ||
| 33A | 1444373X1 | SHIM | ||
| 34 | 1444472X1 | CIRCLIP | ||
| 35 | 1440397X1 | SLEEVE | ||
| 36 | 2870849M92 | NOZZLE | ||
| 37 | 2870848M92 | NOZZLE | ||
| 38 | 2867218M1 | SPRING | ||
| 39 | 2870844M91 | VALVE | ||
| 40 | VALVE | |||
| 41 | 1444586X1 | BALL | ||
| 42 | 2870820M1 | SPRING | ||
| 43 | 2870826M1 | PEG | ||
| 44 | NOT USED | |||
| 45 | NOT USED | |||
| 46 | NOT USED | |||
| 47 | NOT USED |
