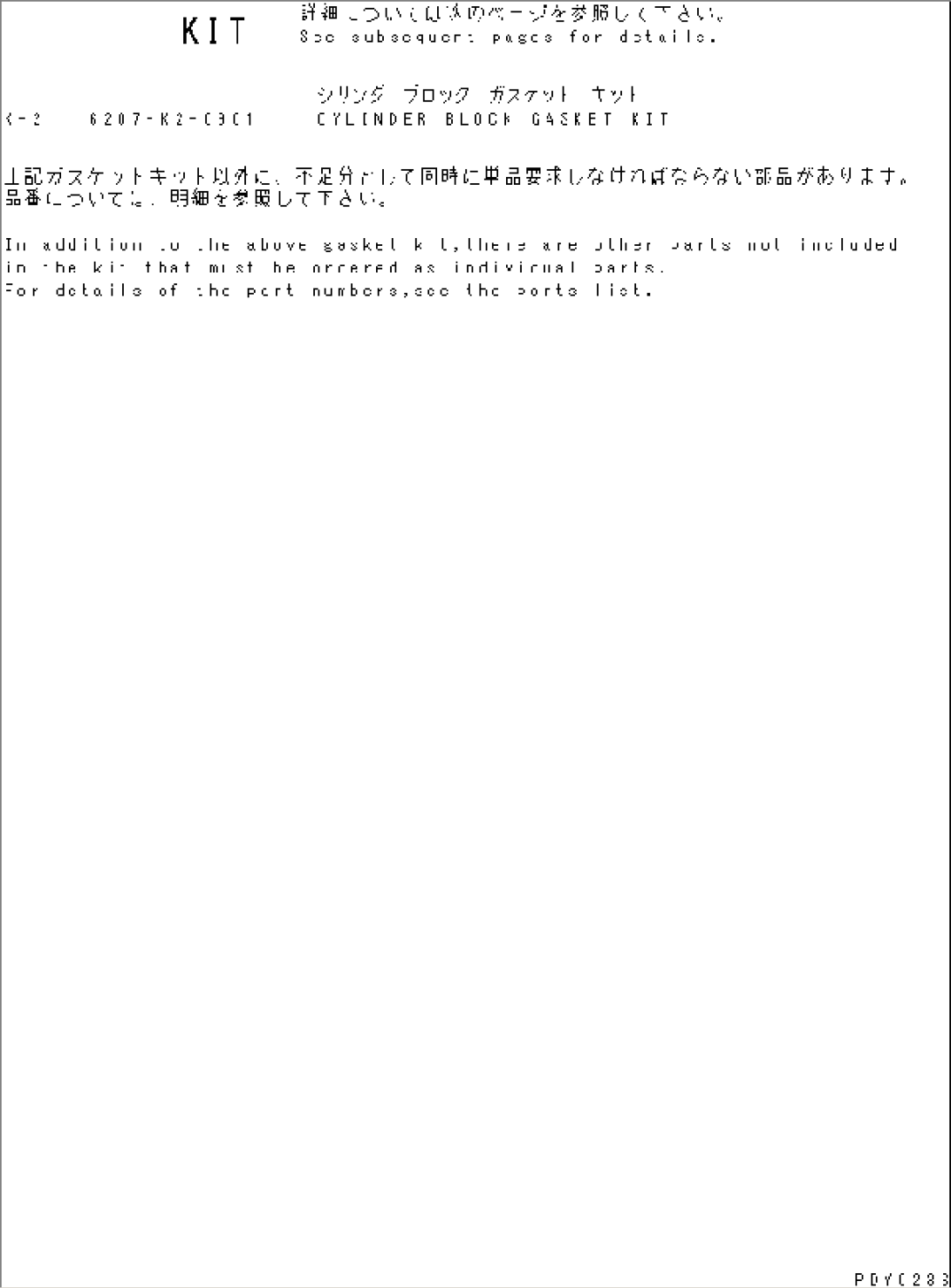

CYLINDER BLOCK GASKET KIT

Item	Part No.	Part Name	Qty	Serial No.
2	6207-K2-0901	GASKET KIT,CYLINDER BLOCK		150915-
2	6206-21-3840	GASKET		150915-
2	6204-21-3510	SEAL, FRONT		150915-
2	6204-21-3410	PACKING		150915-
2	6204-21-3451	GROMMET		150915-
2	6204-21-3460	GROMMET		150915-
2	6206-21-6830	GASKET		150915-
2	07005-02216	SEAL, WASHER		150915-
2	07000-02085	O-RING		150915-
2	07000-63035	O-RING		150915-
2	6204-51-6122	O-RING		150915-
2	6136-21-5870	GASKET		150915-
2	6141-21-1332	SEAL, REAR		150915-
2	07000-62070	O-RING		150915-
2	6204-61-5191	GASKET		150915-
2	6207-61-5312	GASKET		150915-
2	07005-00812	SEAL, WASHER		150915-
2	287-01-12231	O-RING		150915-
2	07005-01012	SEAL, WASHER		150915-
2	07000-02105	O-RING		150915-
2	07005-01412	SEAL, WASHER		150915-
2	6221-61-1520	SEAL, WATER		150915-
2	6209-61-1181	GASKET		150915-
2	07005-01412	SEAL, WASHER		150915-
2	6206-61-1740	GASKET		150915-
2	07005-01612	SEAL, WASHER		150915-
2	07005-01412	SEAL, WASHER		150915-
2	07000-62135	O-RING		150915-
2	07000-03050	O-RING		150915-
		THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL.
2	01653-21412	WASHER		150915-
2	01653-22016	WASHER		150915-
2	07000-02100	O-RING		150915-
2	07000-03040	O-RING		150915-
2	07000-62070	O-RING		150915-
2	07000-63030	O-RING		150915-
2	07000-62135	O-RING		150915-
2	07005-01612	SEAL, WASHER		150915-
2	07005-00812	SEAL, WASHER		150915-
2	07005-02416	SEAL, WASHER		150915-
2	07005-03016	SEAL, WASHER		150915-
2	07005-01012	SEAL, WASHER		150915-
2	08034-00414	BAND		150915-
2	07005-02216	SEAL, WASHER		150915-
2	08034-00519	BAND		150915-
2	424-13-11110	O-RING		150915-
2	6144-21-2500	SHIM ASS'Y		150915-
2	6164-91-6220	GASKET		150915-
2	6204-21-5280	GASKET		150915-
2	6206-61-1131	GASKET		150915-
2	6206-61-1730	GASKET		150915-
2	6206-21-6870	GASKET		150915-
		THE FOLLOWING PARTS ARE THE PARTS NOT INCLUDED IN THE GASKET KIT.
2	6202-21-4150	GASKET		150915-
2	07005-01212	SEAL, WASHER		150915-
2	6204-61-1910	GASKET		150915-
2	07000-02135	O-RING		150915-
