| Item | Part No. | Part Name | Qty | Serial No. |

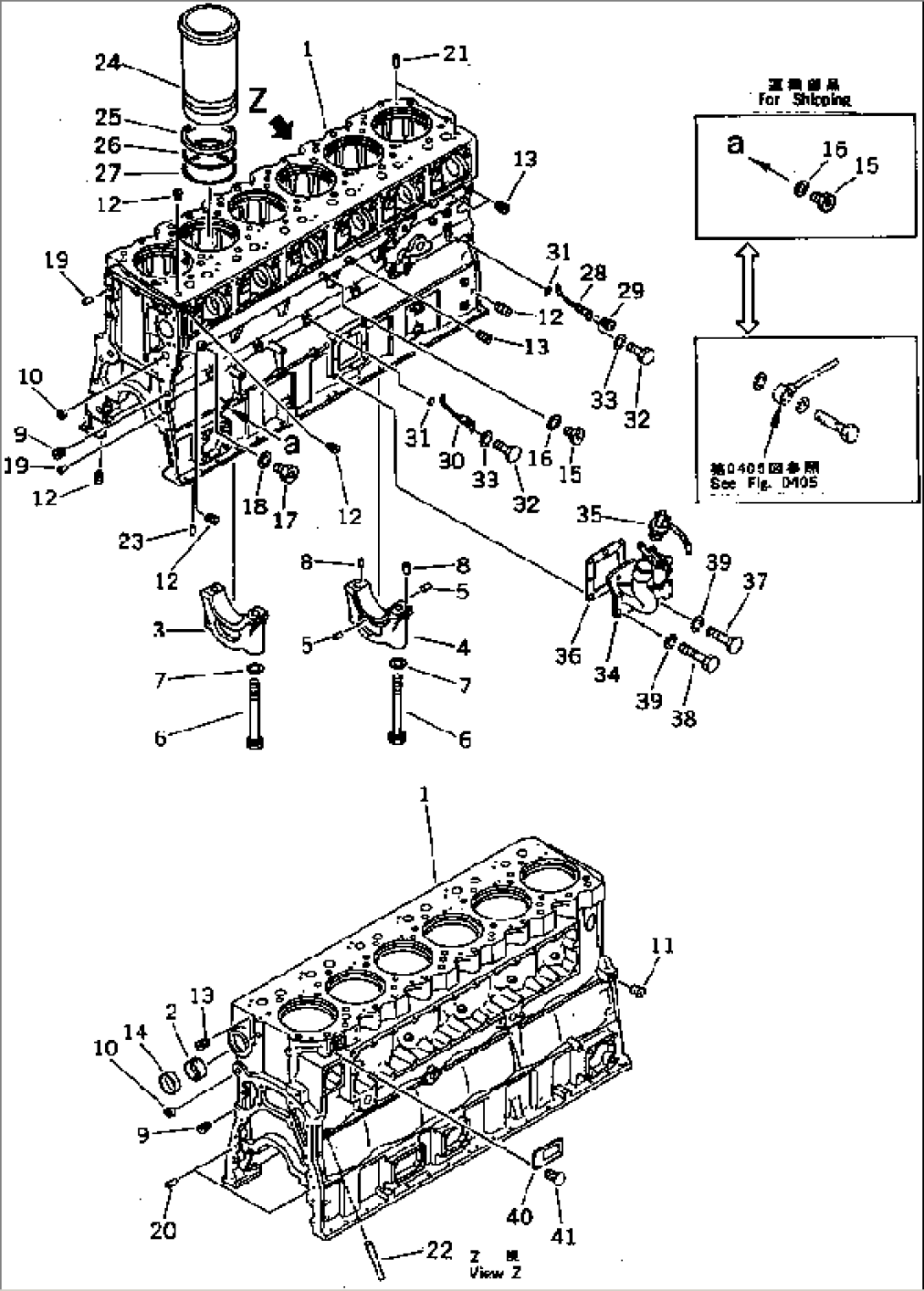

| 6162-23-1101 | CYLINDER BLOCK ASS'Y | 10277-10445 | ||
| 1 | \6\ | BLOCK,CYLINDER | 10277-10445 | |
| 2 | 6162-23-1490 | BUSHING,CAMSHAFT | 10277-@ | |
| 3 | 6162-23-1210 | CAP,MAIN METAL, NO.1,2,3,4,5,7 | 10277-@ | |
| 4 | 6162-23-1250 | CAP,MAIN METAL, NO.6 | 10277-@ | |
| 5 | 6162-23-1260 | PIN,DOWEL | 10446-@ | |
| 5 | \0\6720-21-1260 | PIN,DOWEL | 10277-10445 | |
| 6 | 6162-23-1710 | BOLT,MAIN CAP | 10277-@ | |
| 7 | 6127-21-1741 | WASHER | 10277-@ | |
| 8 | 04020-00514 | PIN,DOWEL | 10277-@ | |
| 9 | 07043-50415 | PLUG | 10277-@ | |
| 10 | 07046-23516 | PLUG | 10277-10445 | |
| 11 | 07043-50211 | PLUG | 10277-@ | |
| 12 | 07043-50108 | PLUG | 10277-10445 | |
| 13 | 07043-00108 | PLUG | 10277-@ | |
| 14 | 07046-28020 | PLUG | 10277-10445 | |
| 15 | 07040-11409 | PLUG | 10277-@ | |
| 16 | 07005-01412 | GASKET (K2) | 10277-@ | |
| 17 | 07040-11007 | PLUG | 10277-@ | |
| 18 | 07005-01012 | GASKET (K2) | 10277-@ | |
| 19 | 04020-01434 | PIN,DOWEL | 10277-@ | |
| 20 | 6127-21-1160 | PIN,DOWEL | 10277-@ | |
| 21 | 6162-13-1410 | PIN | 10446-@ | |
| 21 | \0\6610-11-1410 | PIN | 10277-10445 | |
| 22 | 6162-23-1140 | TUBE,OIL TRANSFER | 10277-@ | |
| 23 | 04020-00820 | PIN,DOWEL | 10277-@ | |
| 24 | 6162-23-2210 | LINER,CYLINDER | 10277-@ | |
| 25 | 6162-23-2250 | SEAL,CREVICE (K2) | 10277-@ | |
| 26 | 6162-23-2220 | O-RING,CENTER (K2) | 10277-@ | |
| 27 | 6162-23-2240 | O-RING,LOWER (K2) | 10277-@ | |
| 28 | 6162-23-1860 | NOZZLE,PISTON COOLING | 10277-@ | |
| 29 | 6100-21-1130 | PLUG | 10277-@ | |
| 30 | 6162-23-1870 | NOZZLE,PISTON COOLING | 10277-@ | |
| 31 | 07000-62016 | O-RING (K2) | 10277-@ | |
| 32 | 01010-30818 | BOLT | 10277-@ | |
| 33 | 01602-00825 | WASHER,SPRING | 10277-@ | |
| 34 | (6162-23-7700) | OIL FILLER ASS'Y | 10277-10793 | |
| 35 | 07025-00100 | CAP | 10277-@ | |
| 36 | 6162-23-6520 | GASKET (K2) | 10277-@ | |
| 37 | 01010-31030 | BOLT | 10277-@ | |
| 38 | 01010-31035 | BOLT | 10277-@ | |
| 39 | 01602-01030 | WASHER,SPRING | 10277-@ | |
| 40 | 09605-01430 | PLATE, NAME,(LIMITED SUPPLY) | 10277-@ | |
| 41 | 04418-02550 | SCREW | 10277-@ |
