| Item | Part No. | Part Name | Qty | Serial No. |
| (381-988437-2) | GRAPPLE ASS'Y | (.)- | ||
| \0\381-988437-1 | GRAPPLE ASS'Y | (001)-(.) | ||

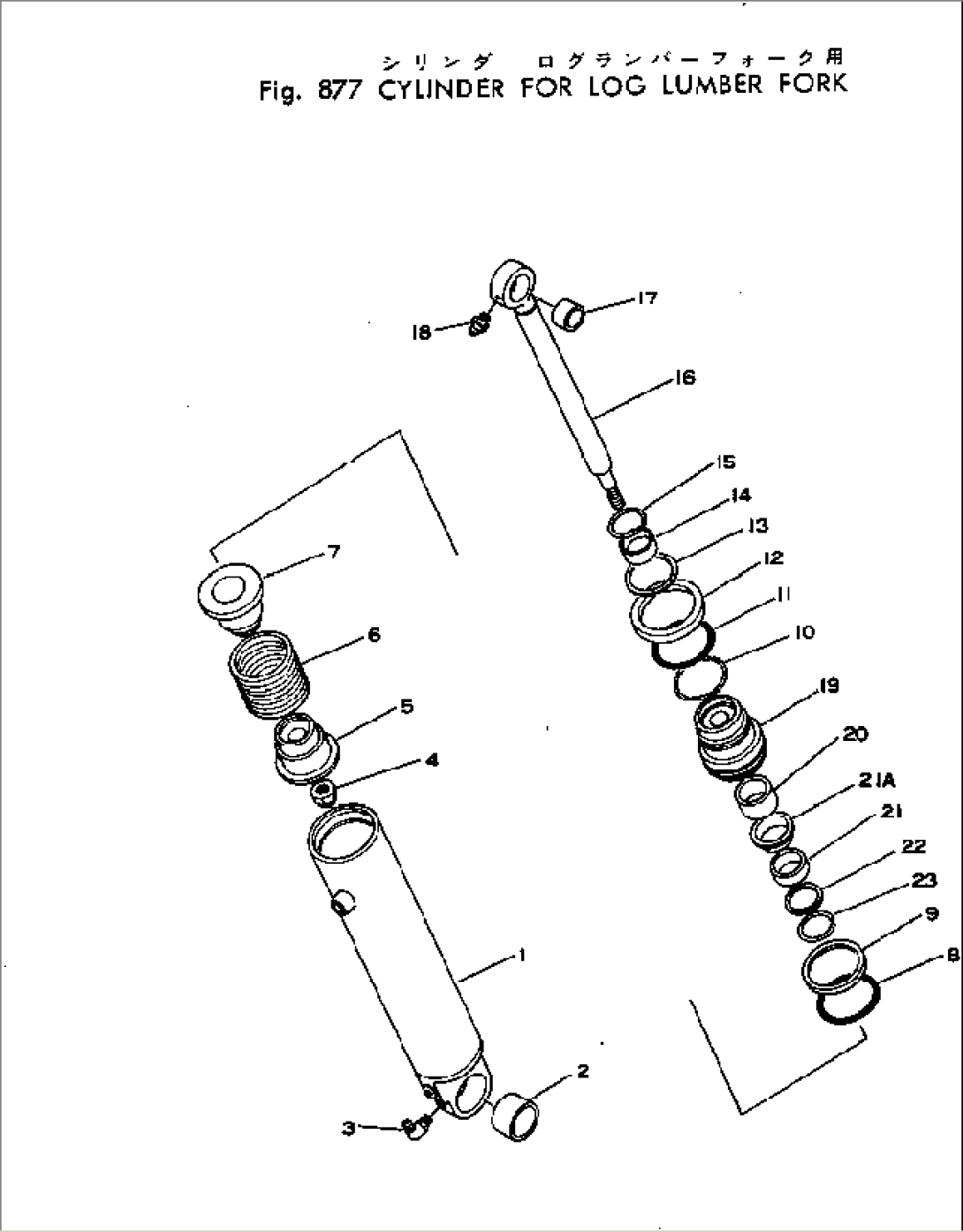

| 381-983359-2 | CYLINDER ASS'Y | (001)- | ||
| 1 | 381-988356-1 | CYLINDER | (001)- | |
| 2 | 381-986539-1 | BUSHING | (001)- | |
| 3 | 380-119692-1 | FITTING | (001)- | |
| 4 | 380-E116-000 | NUT | (001)- | |
| 5 | 380-144261-1 | PISTON | (001)- | |
| 6 | 380-144259-2 | PACKING | (001)- | |
| 7 | 380-144260-1 | PISTON | (001)- | |
| 8 | 380-DR7342-0 | O-RING | (001)- | |
| 9 | 381-982222-1 | RING | (001)- | |
| 10 | 380-125281-1 | RING | (001)- | |
| 11 | 380-890234-1 | RING | (001)- | |
| 12 | 380-125417-1 | CAP | (001)- | |
| 13 | 380-125282-1 | RING | (001)- | |
| 14 | 381-897860-1 | SEAL | (001)- | |
| 15 | 381-976573-1 | RING | (001)- | |
| 16 | 380-889617-2 | ROD | (001)- | |
| 17 | 381-985716-1 | BUSHING | (001)- | |
| 18 | 380-118491-1 | FITTING | (001)- | |
| 19 | 381-977405-1 | HEAD ASS'Y | (001)- | |
| 20 | 381-976568-1 | BUSHING | (001)- | |
| 21 | 381-976571-1 | U-PACKING | (001)- | |
| 21A | 381-976572-1 | HEEL | (001)- | |
| 22 | 381-976570-1 | PACKING | (001)- | |
| 23 | 381-976569-1 | RING | (001)- |
