| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-06-13620 | SENSOR, LEVEL | A11001-- | |
| 2 | 01023-10510 | SCREW | A11001-- | |
| 3 | 56D-04-11552 | COVER | A11001-- | |
| 4 | 01435-01016 | BOLT | A11001-- | |
| 5 | 01435-01016 | BOLT | A11001-- | |
| 6 | 08193-21012 | CLIP | A11001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 2 s/n a11001 up
- Fuel tank and related parts
- D0150 02a0 fuel tank fuel level sensor
Поиск по каталогу

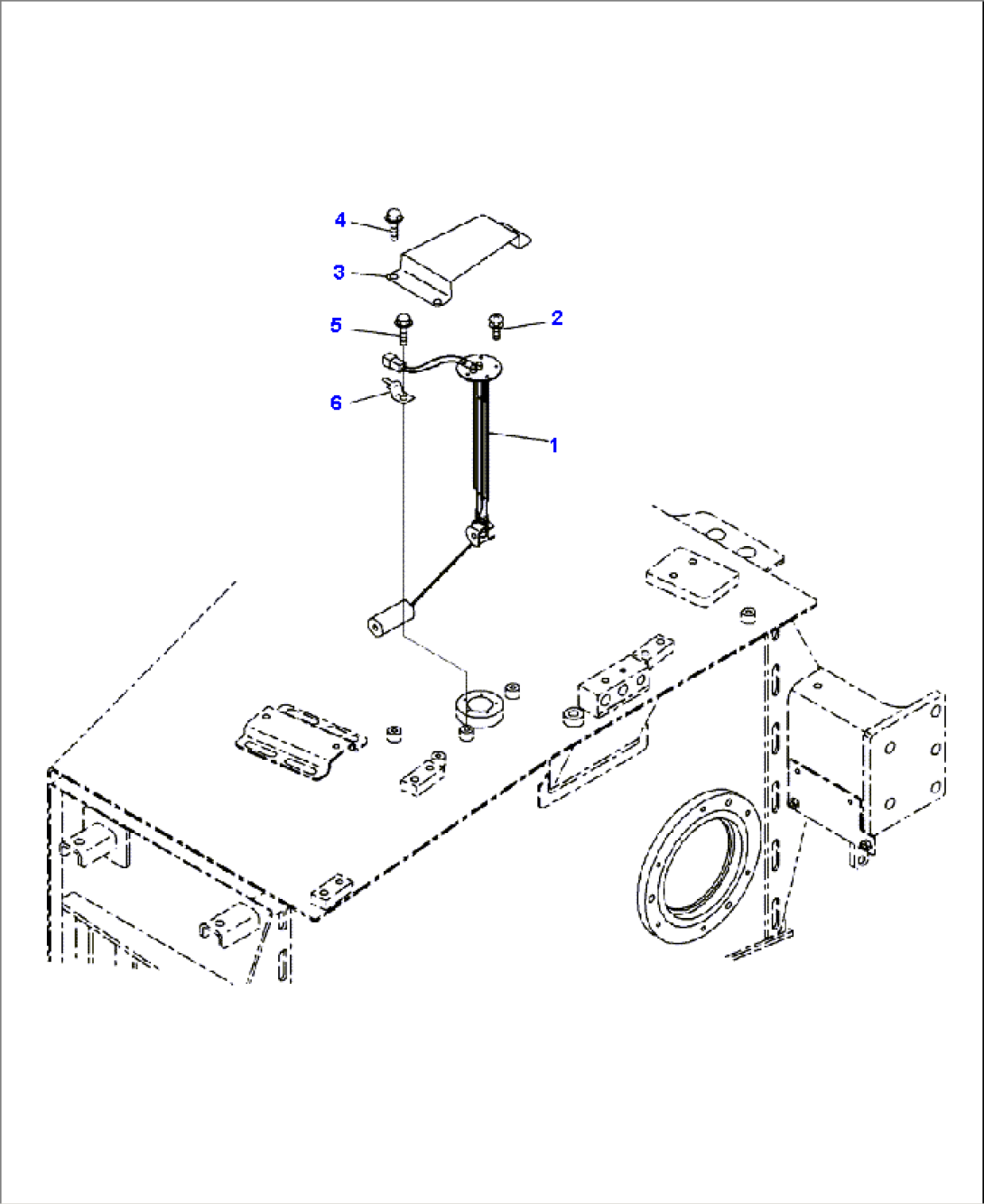

D0150-02A0 FUEL TANK FUEL LEVEL SENSOR
