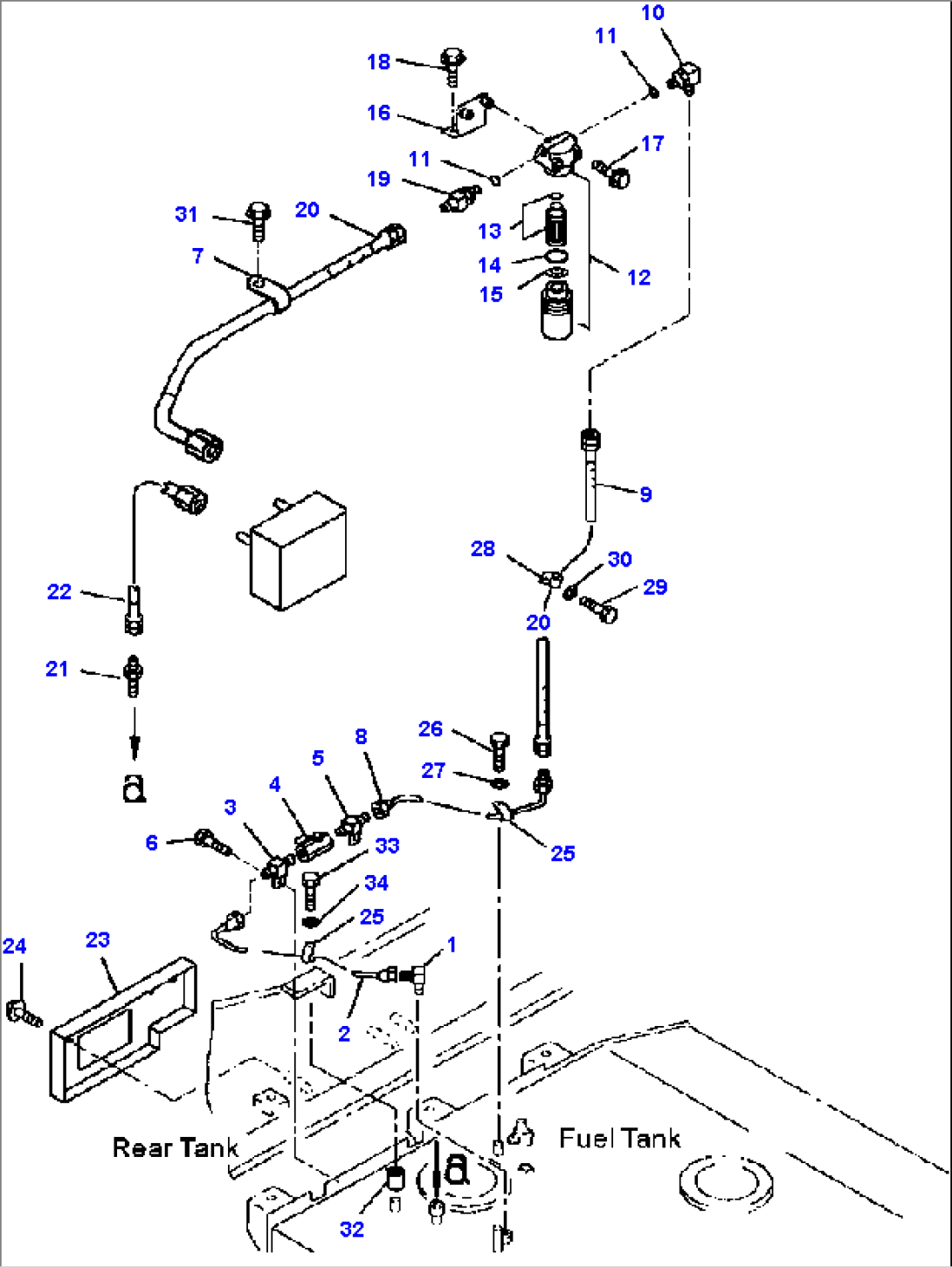

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-09-12530 | ELBOW | A50001-- | |
| 2 | 427-04-A1150 | TUBE | A50001-- | |
| 3 | 427-04-11640 | CONNECTOR | A50001-- | |
| 4 | 427-04-11490 | VALVE | A50001-- | |
| 5 | 427-04-11650 | CONNECTOR | A50001-- | |
| 6 | 01435-01020 | BOLT | A50001-- | |
| 7 | 04434-53211 | CLIP | A50001-- | |
| 8 | 427-04-11621 | TUBE | A50001-- | |
| 9 | 07102-20507 | HOSE | A50001-- | |
| 10 | 427-09-11310 | ELBOW | A50001-- | |
| 11 | 07002-12034 | O-RING | A50001-- | |
| 12 | 425-15-11750 | FILTER ASSEMBLY, FUEL | A50001-- | |
| 13 | 209-38-12470 | ELEMENT | A50001-- | |
| 14 | 209-38-12480 | O-RING | A50001-- | |
| 15 | 209-38-12590 | RING, BACK-UP | A50001-- | |
| 16 | 427-04-11250 | BRACKET | A50001-- | |
| 17 | 01435-00860 | BOLT | A50001-- | |
| 18 | 01435-01230 | BOLT | A50001-- | |
| 19 | 427-04-A1130 | CONNECTOR | A50001-A50016- | |
| OR | ||||
| 19 | 427-04-A1250 | CONNECTOR | A50017-- | |
| 20 | HA 2 305 | HOSE | A50001-- | |
| 21 | TF 6 283 | ADAPTOR | A50001-- | |
| 22 | HA 0 333 | HOSE | A50001-- | |
| 23 | 427-04-11660 | COVER | A50001-- | |
| 24 | 01435-01020 | BOLT | A50001-- | |
| 25 | 04434-51510 | CLIP | A50001-- | |
| 26 | 01010-81020 | BOLT | A50001-- | |
| 27 | 01643-31032 | WASHER | A50001-- | |
| 28 | 08036-02514 | CLIP | A50001-- | |
| 29 | 01010-81020 | BOLT | A50001-- | |
| 30 | 01643-31032 | WASHER | A50001-- | |
| 31 | 01435-01020 | BOLT | A50001-- | |
| 32 | 427-04-A1180 | SPACER, L=6 MM | A50001-- | |
| 33 | 01010-81025 | BOLT | A50001-- | |
| 34 | 01643-31032 | WASHER | A50001-- |
