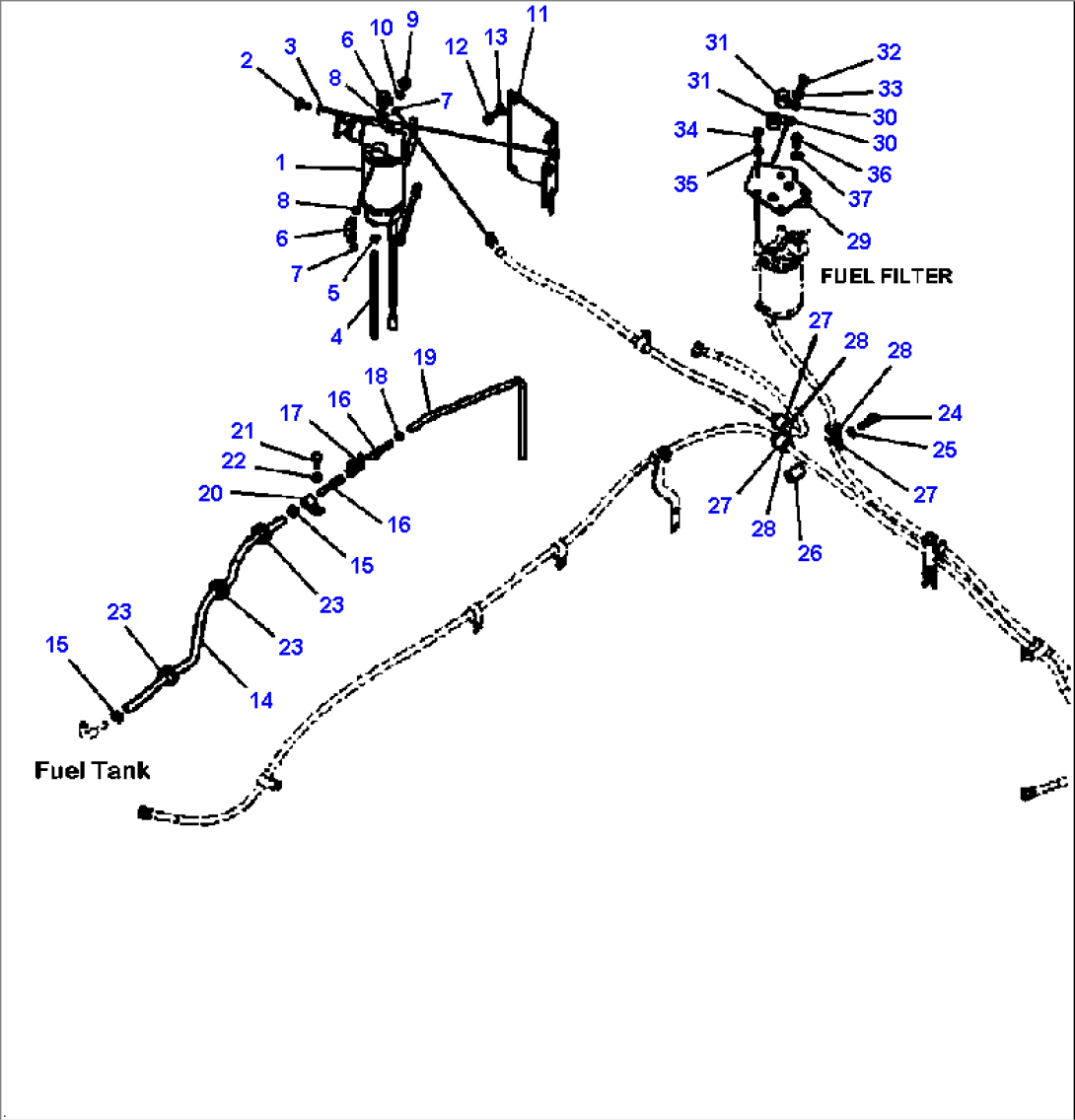

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | FILTER ASSEMBLY (SEE FIG. D0200-02A0A) | A88566-- | ||
| OR | ||||
| 1 | FILTER ASSEMBLY (SEE FIG. D0200-02A0) | A88001-A88565- | ||
| 2 | 07372-21235 | BOLT | A88001-- | |
| 3 | 01643-51232 | WASHER | A88001-- | |
| 4 | 07270-00827 | TUBE | A88001-- | |
| 5 | 07285-00100 | CLIP, HOSE | A88001-- | |
| 6 | 02782-10311 | ELBOW | A88001-- | |
| 7 | 02896-11009 | O-RING | A88001-- | |
| 8 | 07002-11423 | O-RING | A88001-- | |
| 9 | 07040-11409 | PLUG | A88001-- | |
| 10 | 07002-11423 | O-RING | A88001-- | |
| 11 | 20Y-04-41272 | BRACKET | A88001-- | |
| 12 | 01010-81225 | BOLT | A88001-- | |
| 13 | 01643-31232 | WASHER | A88001-- | |
| 14 | 20Y-04-41281 | HOSE | A88001-- | |
| 15 | 11Y-09-11140 | CLIP | A88001-- | |
| 16 | 20Y-04-31170 | NIPPLE | A88001-- | |
| 17 | 07700-50240 | VALVE, FUEL DRAIN | A88001-- | |
| 18 | 07285-00115 | CLIP, HOSE | A88001-- | |
| 19 | 07270-01070 | TUBE | A88001-- | |
| 20 | 04434-51612 | CLIP | A88001-- | |
| 21 | 01010-81225 | BOLT | A88001-- | |
| 22 | 01643-31232 | WASHER | A88001-- | |
| 23 | 205-977-7310 | GROMMET | A88001-- | |
| 24 | 01010-81275 | BOLT | A88001-- | |
| 25 | 01643-31232 | WASHER | A88001-- | |
| 26 | 20Y-03-11220 | COLLAR | A88001-- | |
| 27 | 04434-52512 | CLIP | A88001-- | |
| 28 | 198-06-53560 | CUSHION | A88001-- | |
| 29 | 20Y-54-72441 | BRACKET | A88001-- | |
| 30 | 04434-52112 | CLIP | A88001-- | |
| 31 | 198-06-53550 | CUSHION | A88001-- | |
| 32 | 01010-81225 | BOLT | A88001-- | |
| 33 | 01643-31232 | WASHER | A88001-- | |
| 34 | 01010-80820 | BOLT | A88001-- | |
| 35 | 01643-30823 | WASHER | A88001-- | |
| 36 | 01010-81225 | BOLT | A88001-- | |
| 37 | 01643-31232 | WASHER | A88001-- |
