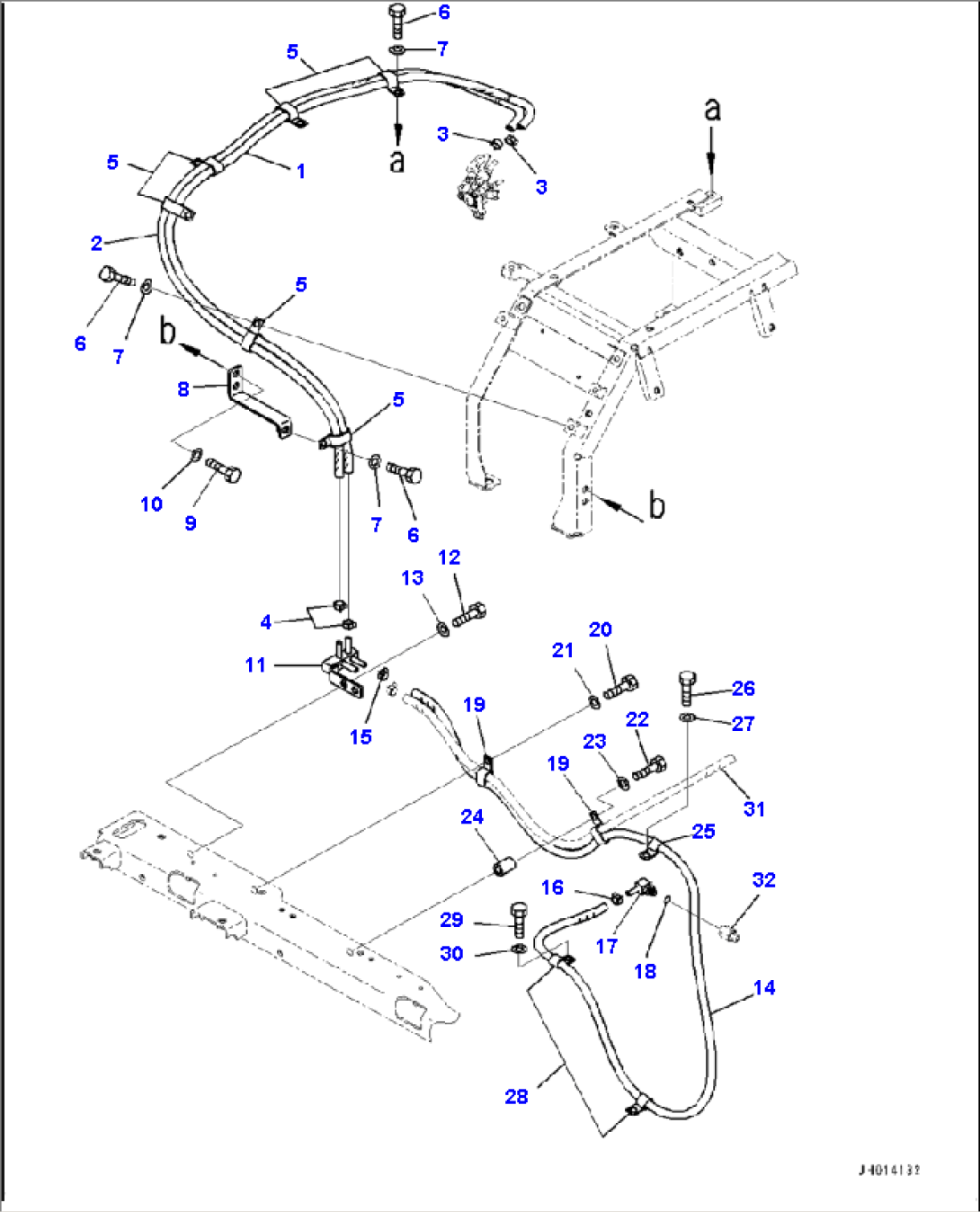

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2A6-01-12711 | HOSE ASSEMBLY | ||
| 2 | 2A6-01-12721 | HOSE ASSEMBLY | ||
| 3 | 11Y-09-11140 | CLIP | ||
| 4 | 11Y-09-11140 | CLIP | ||
| 5 | 04435-51812 | CLIP | ||
| 6 | 01010-81225 | BOLT | ||
| 7 | 01643-31232 | WASHER | ||
| 8 | 2A6-01-12621 | BRACKET | ||
| 9 | 01010-81225 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 2A6-01-12631 | JOINT | ||
| 12 | 01010-81225 | BOLT | ||
| 13 | 01643-31232 | WASHER | ||
| 14 | 2A5-01-25211 | HOSE ASSEMBLY | ||
| 15 | 11Y-09-11140 | CLIP | ||
| 16 | 11Y-09-11140 | CLIP | ||
| 17 | 205-03-31360 | ELBOW | ||
| 18 | 07002-11423 | O-RING | ||
| 19 | 04435-51612 | CLIP | ||
| 20 | 01010-81225 | BOLT | ||
| 21 | 01643-31232 | WASHER | ||
| 22 | 01010-81260 | BOLT | ||
| 23 | 01643-31232 | WASHER | ||
| 24 | 20Y-03-11220 | COLLAR | ||
| 25 | 04434-51612 | CLIP | ||
| 26 | 01010-81225 | BOLT | ||
| 27 | 01643-31232 | WASHER | ||
| 28 | 04434-51612 | CLIP | ||
| 29 | 01010-81225 | BOLT | ||
| 30 | 01643-31232 | WASHER | ||
| 31 | HOSE ASSEMBLY (SEE FIG. C0100-001008 ) | |||
| 32 | ADAPTER (SEE FIG. B0000-001003 ) |
