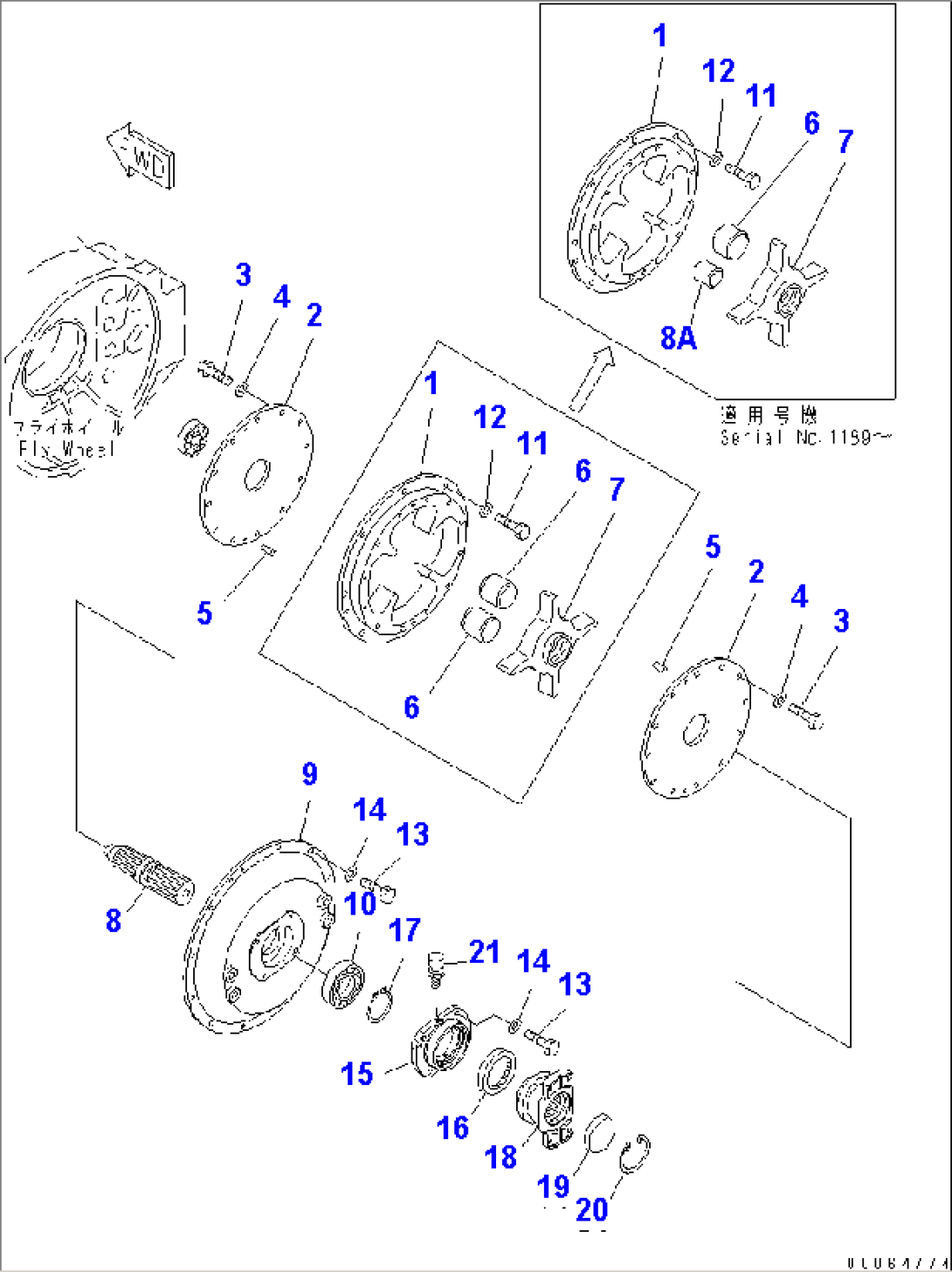

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-01-82140 | BODY | 1189- | |
| 1 | 566-01-72140 | BODY,OUTER | 1001-1188 | |
| 2 | 566-01-22161 | FLANGE | 1001- | |
| 3 | 01010-61030 | BOLT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 04020-00820 | PIN,DOWEL | 1001- | |
| 6 | 566-01-82180 | CUSHION | 1189- | |
| 6 | 287-01-12180 | CUSHION | 1001-1188 | |
| 7 | 566-01-82150 | BODY | 1189- | |
| 7 | 566-01-72150 | BODY,INNER | 1001-1188 | |
| 8 | 566-01-72210 | SHAFT | 1001- | |
| 8A | 566-01-82190 | CUSHION | 1189- | |
| 9 | 56B-01-12111 | COVER | 1001- | |
| 10 | 06040-06213 | BEARING | 1001- | |
| 11 | 01010-61230 | BOLT | 1006- | |
| 11 | 01010-31230 | BOLT | 1001-1005 | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 01010-61235 | BOLT | 1006- | |
| 13 | 01010-31235 | BOLT | 1001-1005 | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 56B-01-12120 | COVER | 1001- | |
| 16 | 566-01-22912 | SEAL | 1001- | |
| 17 | 04064-06525 | RING,SNAP | 1001- | |
| 56B-01-12710 | COUPLING ASS'Y | 1001- | ||
| 18 | 56B-01-12720 | COUPLING | 1001- | |
| 19 | 569-01-62790 | CAP | 1001- | |
| 20 | 04065-09530 | RING,SNAP | 1001- | |
| 21 | 07030-01030 | BREATHER | 1001- |
