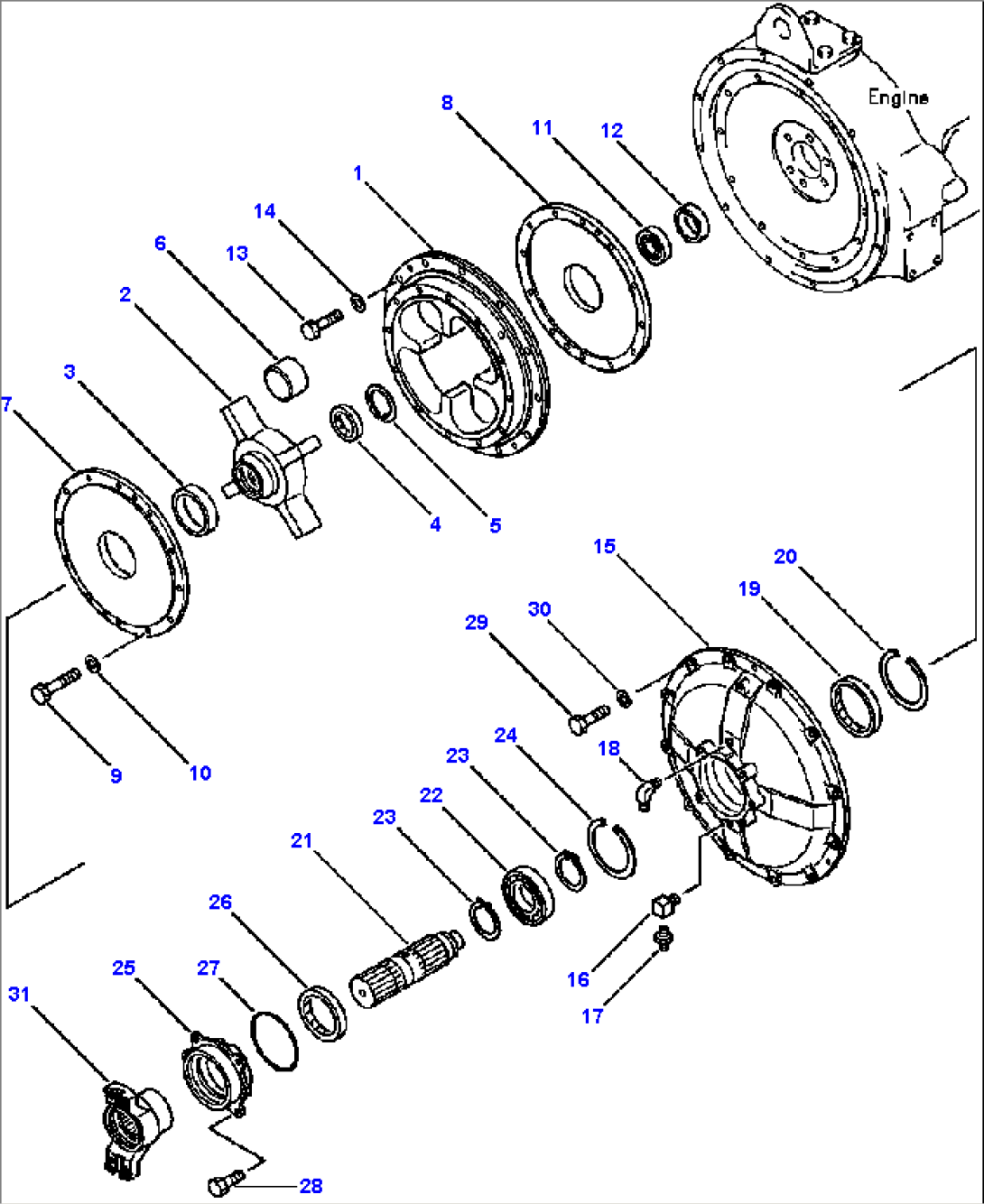

| Item | Part No. | Part Name | Qty | Serial No. |
| 425-12-11004 | DAMPER ASSEMBLY | |||
| 1 | 425-12-11160 | BODY, OUTER | ||
| 425-12-11211 | BODY ASSEMBLY, INNER | |||
| 2 | 425-12-11150 | BODY, INNER | ||
| 3 | 425-12-11191 | SPACER | ||
| 4 | 07011-00058 | SEAL, OIL | ||
| 5 | 04065-08025 | RING, SNAP | ||
| 6 | 425-12-11910 | RUBBER | ||
| 7 | 425-12-11170 | FLANGE | ||
| 8 | 425-12-11180 | FLANGE | ||
| 9 | 01010-31080 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 06034-06208 | BEARING | ||
| 12 | 425-12-11860 | SPACER | ||
| 13 | 01010-31240 | BOLT | ||
| 14 | 01643-31232 | WASHER | ||
| 15 | 425-12-11111 | COVER | ||
| 16 | 425-12-11510 | ELBOW | ||
| 17 | 21T-72-17690 | ADAPTER | ||
| 18 | 07834-00817 | ELBOW | ||
| 19 | 425-12-11220 | SEAL, OIL | ||
| 20 | 04077-00130 | RING, SNAP | ||
| 21 | 425-12-11141 | SHAFT | ||
| 22 | 06000-06215 | BEARING | ||
| 23 | 04064-07525 | RING, SNAP | ||
| 24 | 04077-00130 | RING, SNAP | ||
| 25 | 425-12-11120 | COVER | ||
| 26 | 07012-00095 | SEAL, OIL | ||
| 27 | 07000-02130 | O-RING | ||
| 28 | 01010-51025 | BOLT | ||
| 29 | 01010-51235 | BOLT | ||
| 30 | 01643-31232 | WASHER | ||
| 31 | 425-12-11130 | COUPLING |
