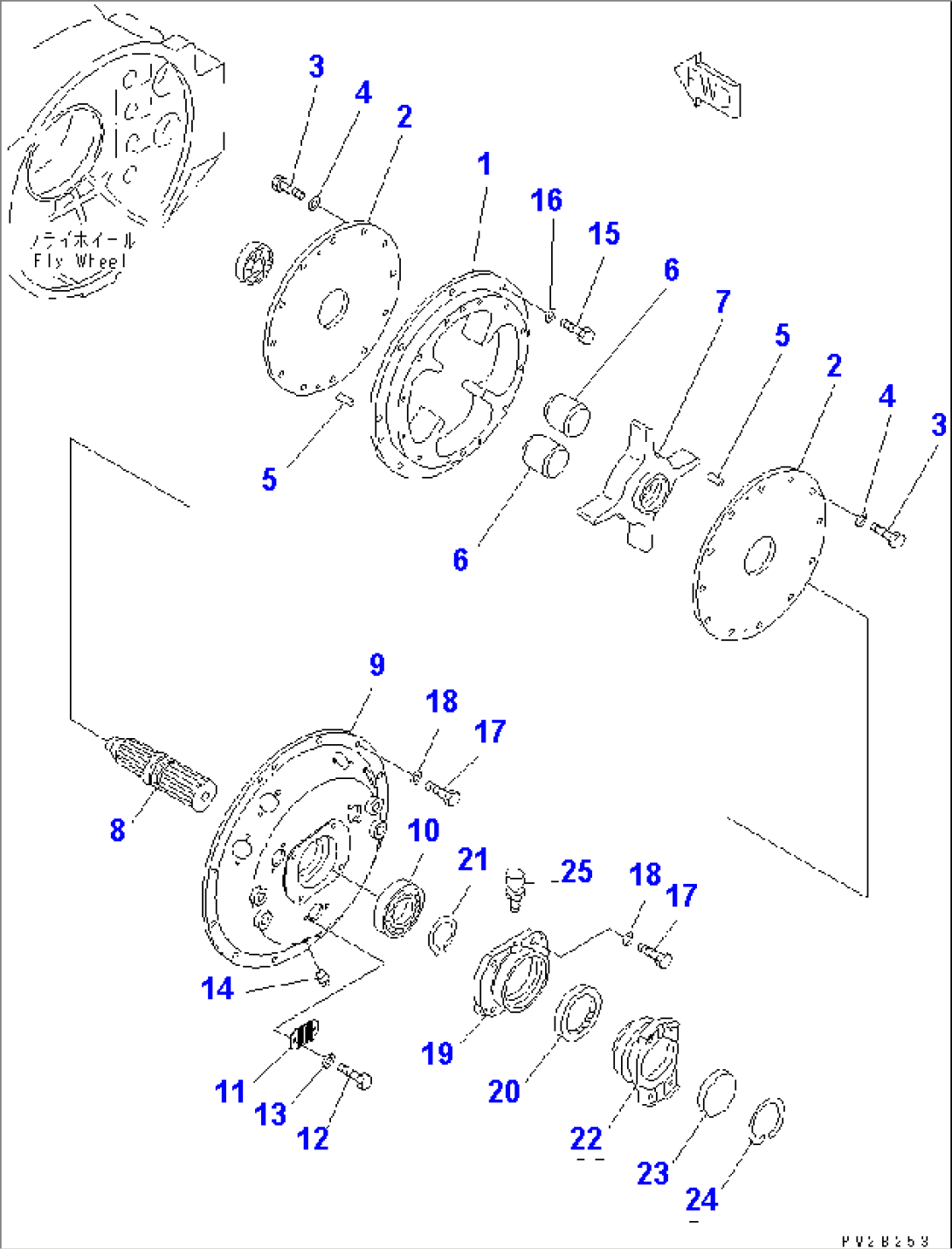

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-01-72140 | BODY,OUTER | 1001-@ | |
| 2 | 566-01-22161 | FLANGE | 1001-@ | |
| 3 | 01010-61030 | BOLT | 1001-@ | |
| 4 | 01643-31032 | WASHER | 1001-@ | |
| 5 | 04020-00820 | PIN,DOWEL | 1001-@ | |
| 6 | 287-01-12180 | CUSHION | 1001-@ | |
| 7 | 566-01-72150 | BODY,INNER | 1001-@ | |
| 8 | 566-01-72210 | SHAFT | 1001-@ | |
| 9 | 56B-01-12912 | COVER | 1014-1078 | |
| 56B-01-12911 | COVER | 1001-1013 | ||
| 10 | 06040-06213 | BEARING | 1001-@ | |
| 11 | 56B-01-12980 | COVER | 1014-1078 | |
| \1\56B-01-12931 | COVER | 1014-1078 | ||
| 56B-01-12930 | COVER | 1001-1013 | ||
| 12 | 01010-80816 | BOLT | 1001-1078 | |
| 13 | 01643-30823 | WASHER | 1001-1078 | |
| 14 | 07042-70108 | PLUG | 1001-@ | |
| 15 | 01010-61230 | BOLT | 1001-@ | |
| 16 | 01643-31232 | WASHER | 1001-@ | |
| 17 | 01010-61235 | BOLT | 1001-@ | |
| 18 | 01643-31232 | WASHER | 1001-@ | |
| 19 | 56B-01-12120 | COVER | 1053-@ | |
| 566-01-72120 | COVER | 1001-1052 | ||
| 20 | 566-01-22912 | SEAL | 1001-@ | |
| 21 | 04064-06525 | RING,SNAP | 1001-@ | |
| 56B-01-12710 | COUPLING ASS'Y | 1053-@ | ||
| 566-01-72710 | COUPLING ASS'Y | 1001-1052 | ||
| 22 | 56B-01-12720 | COUPLING | 1053-@ | |
| 566-01-72720 | COUPLING | 1001-1052 | ||
| 23 | 569-01-62790 | CAP | 1001-@ | |
| 24 | 04065-09530 | RING,SNAP | 1001-@ | |
| 25 | 07030-01030 | BREATHER | 1001-@ |
