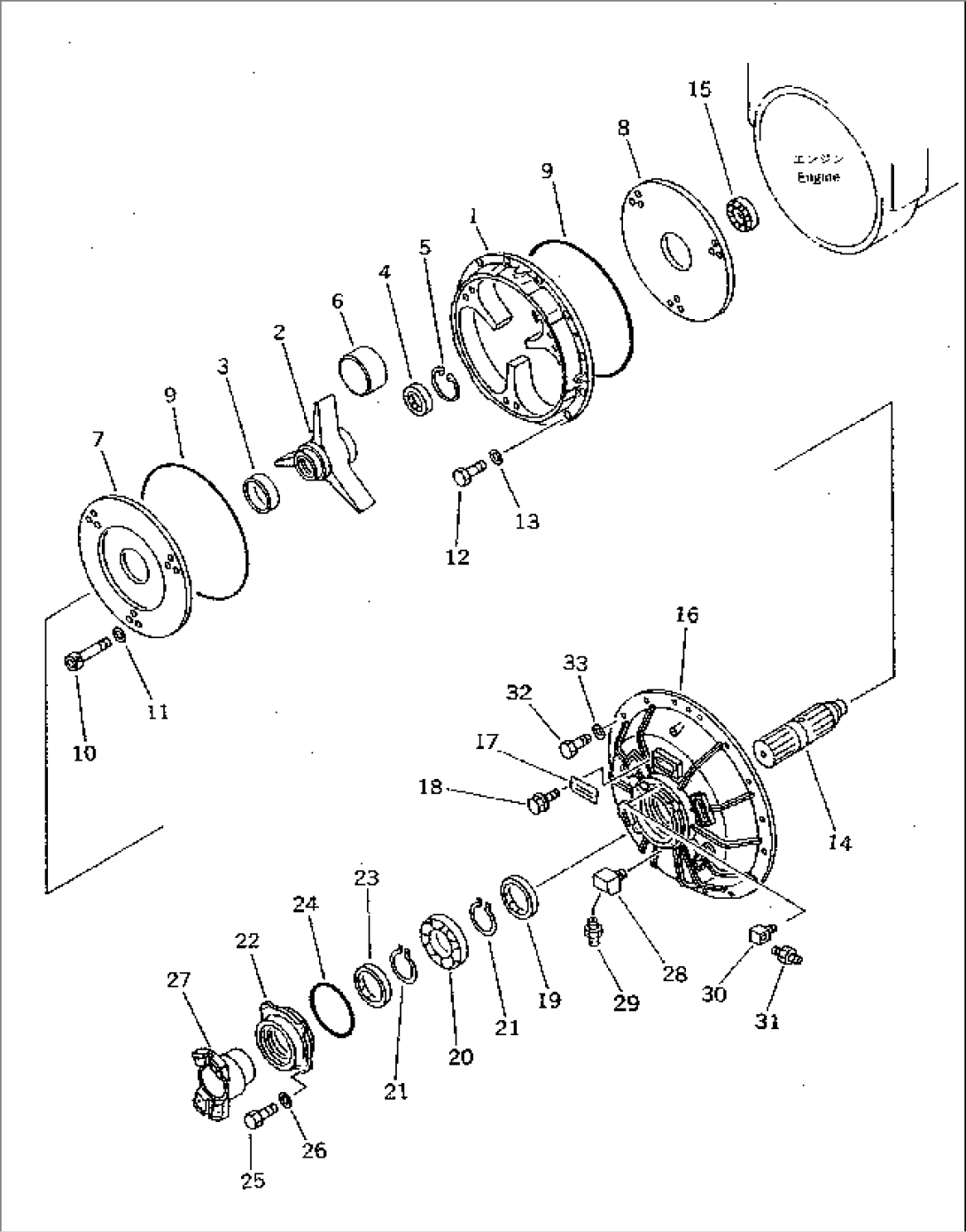

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-12-11006 | DAMPER ASS'Y | 10044-10499 | ||
| (\2\427-12-11004) | DAMPER ASS'Y | (10044-.) | ||
| 1 | 427-12-11161 | BODY,INNER | 10032-10499 | |
| 427-12-11211 | INNER BODY ASS'Y | 10031-10499 | ||
| 2 | 427-12-11150 | BODY,INNER | 10031-10499 | |
| 3 | 427-12-11221 | SPACER | 10031-10499 | |
| 4 | 427-12-11360 | SEAL,OIL | 10001-10499 | |
| (\2\07011-00075) | SEAL,OIL | (10001-.) | ||
| 5 | 04065-01030 | RING,SNAP | 10001-10499 | |
| 6 | 427-12-11980 | RUBBER | 10001-@ | |
| 7 | 427-12-11183 | FLANGE | 10032-10499 | |
| 8 | 427-12-11173 | FLANGE | 10032-10499 | |
| 9 | 427-12-11240 | O-RING | 10032-@ | |
| 10 | 01253-31610 | BOLT | 10001-@ | |
| 11 | 01643-31645 | WASHER | 10001-@ | |
| 12 | 01010-31645 | BOLT | 10001-10499 | |
| 13 | 01643-31645 | WASHER | 10001-@ | |
| 14 | 427-12-11141 | SHAFT | 10031-10499 | |
| 15 | 427-12-11330 | BEARING | 10031-10499 | |
| (\2\06044-06211) | BEARING | (10031-.) | ||
| 16 | 427-12-11111 | COVER | 10044-10499 | |
| 17 | 195-12-11240 | COVER | 10044-@ | |
| 18 | 01435-20812 | BOLT | 10044-10499 | |
| 19 | 427-12-11350 | SEAL | 10001-10499 | |
| (\2\07012-00120) | SEAL | (10001-.) | ||
| 20 | 06030-06219 | BEARING | 10001-10499 | |
| 21 | 04064-09530 | RING,SNAP | 10001-10499 | |
| 22 | 427-12-11120 | COVER | 10001-10499 | |
| 23 | 427-12-11340 | SEAL | 10001-10499 | |
| (\2\07012-00115) | SEAL | (10001-.) | ||
| 24 | 07000-05165 | O-RING | 10001-10499 | |
| 25 | 01010-31230 | BOLT | 10001-10499 | |
| 26 | 01643-31232 | WASHER | 10001-10499 | |
| 27 | 427-12-11130 | COUPLING | 10001-10499 | |
| 28 | 427-12-11231 | ELBOW | 10001-10499 | |
| 29 | 21T-72-17690 | ADAPTER | 10001-@ | |
| 30 | 154-865-1160 | ELBOW | 10044-10499 | |
| 31 | 07836-00817 | CONNECTOR | 10044-10499 | |
| 32 | 01010-31235 | BOLT | 10001-@ | |
| 33 | 01643-31232 | WASHER | 10001-@ |
