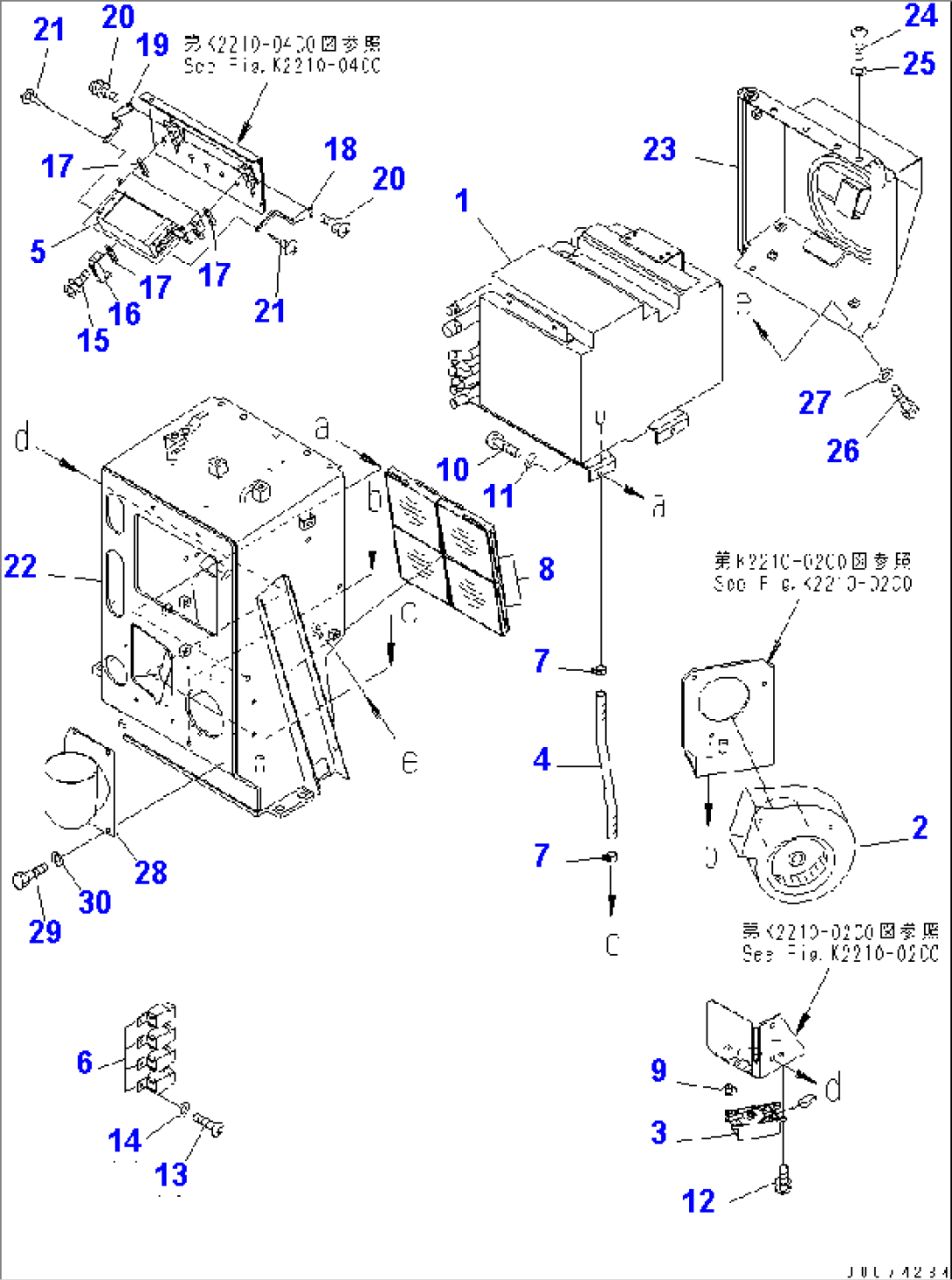

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (17A-Z11-7111) | CONDITIONER ASS'Y | 69001- | |
| 2 | (17A-Z11-7120) | BLOWER ASS'Y | 69001- | |
| 3 | 11Y-979-4850 | MOTOR | 69001- | |
| 4 | 17A-911-1321 | HOSE, 500MM | 69001- | |
| 5 | 421-07-31240 | CONTROLLER | 69001- | |
| 6 | 198-911-9240 | RELAY, 4-TERMINAL | 69001- | |
| 7 | 14X-911-7690 | CLAMP | 69001- | |
| 8 | 20Y-979-6261 | FILTER | 69001- | |
| 9 | 17A-Z11-7450 | BUSHING | 69001- | |
| 10 | 01010-80820 | BOLT | 69001- | |
| 11 | 01643-30823 | WASHER | 69001- | |
| 12 | 01023-10516 | SCREW | 70353- | |
| 13 | 01245-00612 | SCREW | 69001- | |
| 14 | 01643-70623 | WASHER | 69001- | |
| 15 | 01023-10535 | SCREW | 70353- | |
| 16 | 17A-Z11-7861 | BRACKET | 70353- | |
| 17 | 17A-Z11-7871 | RUBBER | 70353- | |
| 18 | 17A-Z11-7891 | PLATE | 70353- | |
| 19 | 17A-Z11-7911 | PLATE | 70353- | |
| 20 | 01023-10516 | SCREW | 70353- | |
| 21 | 01370-00410 | SCREW | 70353- | |
| 22 | 154-Z11-2131 | BRACKET | 71069- | |
| 22 | 154-Z11-2130 | BRACKET | 69001-71068 | |
| 23 | 17A-Z11-7220 | COVER | 69001- | |
| 24 | 01245-00816 | SCREW | 69001- | |
| 25 | 01643-70823 | WASHER | 69001- | |
| 26 | 01010-81025 | BOLT | 69001- | |
| 27 | 01643-31032 | WASHER | 69001- | |
| 28 | 14X-Z11-8180 | BRACKET | 69001- | |
| 29 | 01010-80820 | BOLT | 69001- | |
| 30 | 01643-30823 | WASHER | 69001- |
