| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-85450 | BRACKET | 2001- | |
| 2 | 01010-80616 | BOLT | 2001- | |
| 3 | 01643-30623 | WASHER | 2001- | |
| 4 | 561-54-85460 | BRACKET | 2001- | |
| 5 | 561-54-85470 | BRACKET | 2001- | |
| 6 | 01010-80616 | BOLT | 2001- | |
| 7 | 01643-30623 | WASHER | 2001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2 s/n 2001 2218 (ecot3) (for eu)
- Operator's compartment and control system
- Dashboard (2/2)(#2001 )
Поиск по каталогу

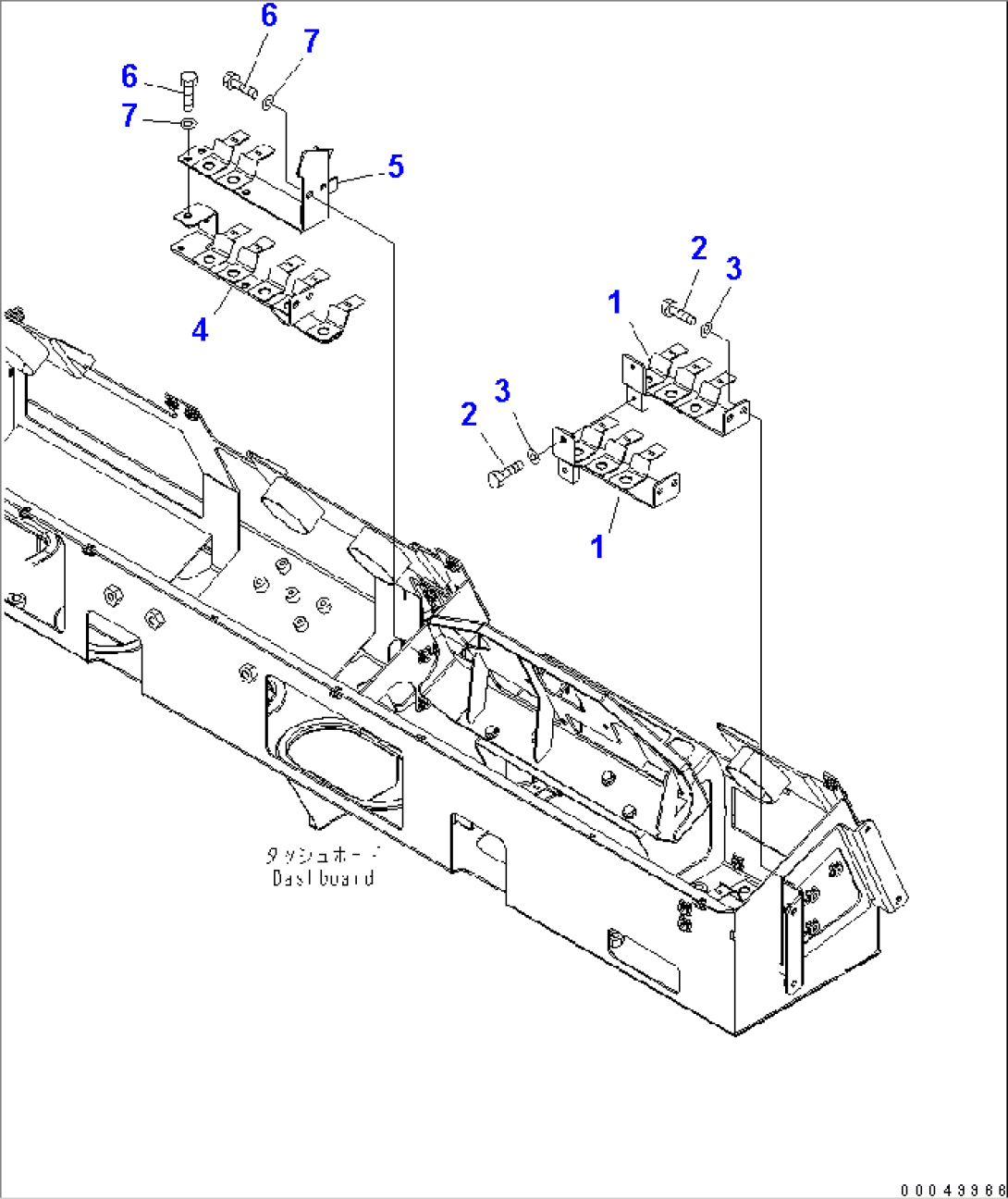

DASHBOARD (2/2)(#2001-)
