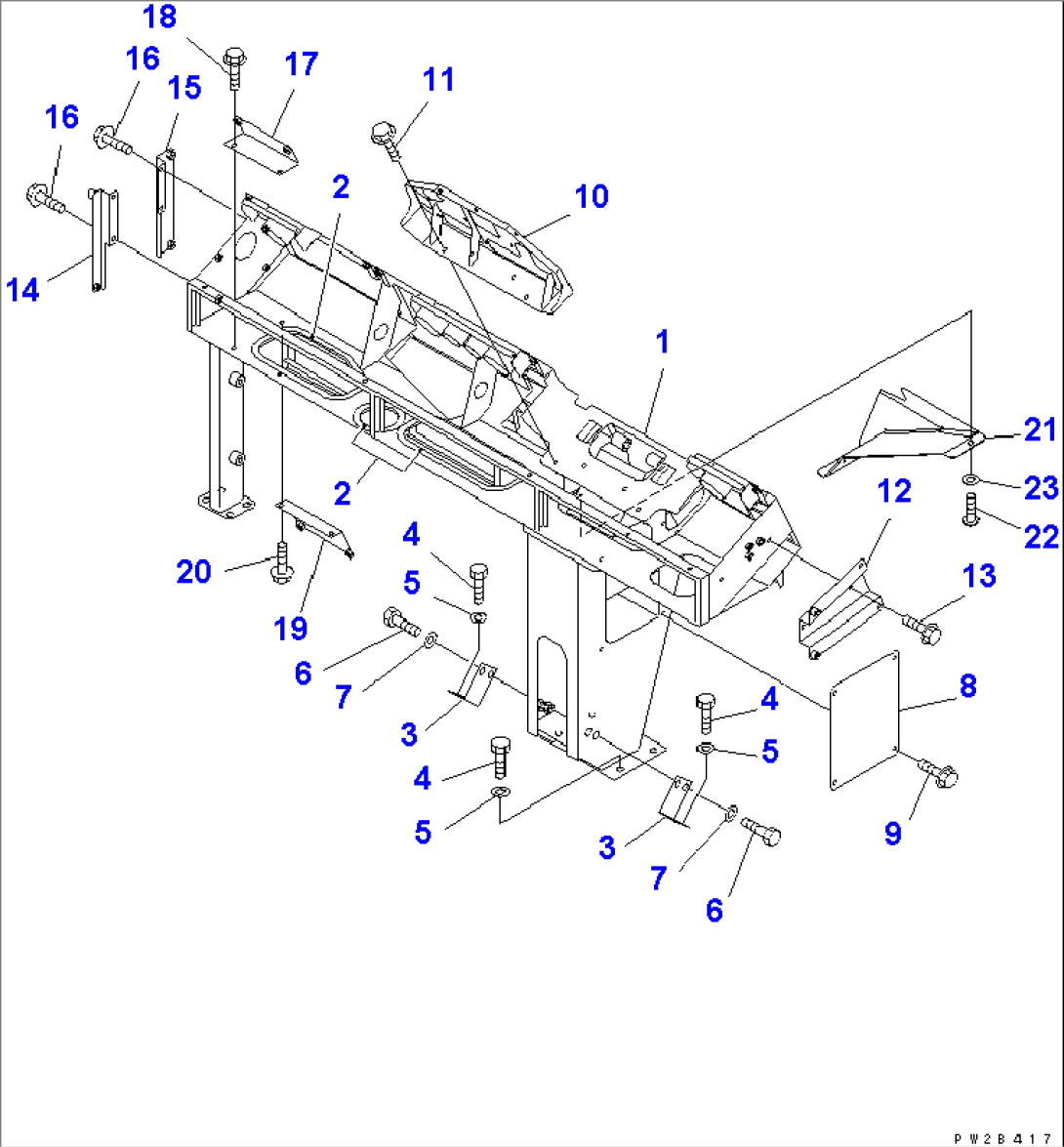

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-15414 | DASHBOARD ASS'Y | 1020- | |
| 56B-54-15413 | DASHBOARD ASS'Y | 1001-1019 | ||
| 56B-54-15180 | SEAL | 1001- | ||
| \6\ | DASHBOARD | 1020- | ||
| \6\ | DASHBOARD | 1001-1019 | ||
| \6\ | SUPPORT | 1001- | ||
| \6\ | SUPPORT | 1001- | ||
| 56B-54-15451 | SEAL | 1001- | ||
| 56B-54-15551 | SEAL | 1001- | ||
| 2 | 22T-55-11970 | FINISHER | 1001- | |
| 3 | 56B-54-15470 | BRACKET | 1001- | |
| 4 | 01010-81020 | BOLT | 1001- | |
| 5 | 01643-31032 | WASHER | 1001- | |
| 6 | 01010-81025 | BOLT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | 56B-54-15460 | COVER | 1001- | |
| 9 | 01435-00612 | BOLT | 1001- | |
| 10 | 56B-54-15560 | BRACKET | 1001- | |
| 11 | 01435-00612 | BOLT | 1001- | |
| 12 | 56B-54-15511 | BRACKET | 1001- | |
| 13 | 01435-00610 | BOLT | 1001- | |
| 14 | 56B-54-15521 | BRACKET | 1001- | |
| 15 | 56B-54-15590 | BRACKET | 1001- | |
| 16 | 01435-00612 | BOLT | 1001- | |
| 17 | 56B-54-15531 | BRACKET | 1001- | |
| 18 | 01435-00612 | BOLT | 1001- | |
| 19 | 56B-54-15541 | BRACKET | 1001- | |
| 20 | 01435-00612 | BOLT | 1001- | |
| 21 | 56B-54-15581 | COVER | 1001- | |
| 22 | 01245-00816 | SCREW | 1001- | |
| 23 | 01642-40810 | WASHER | 1001- |
