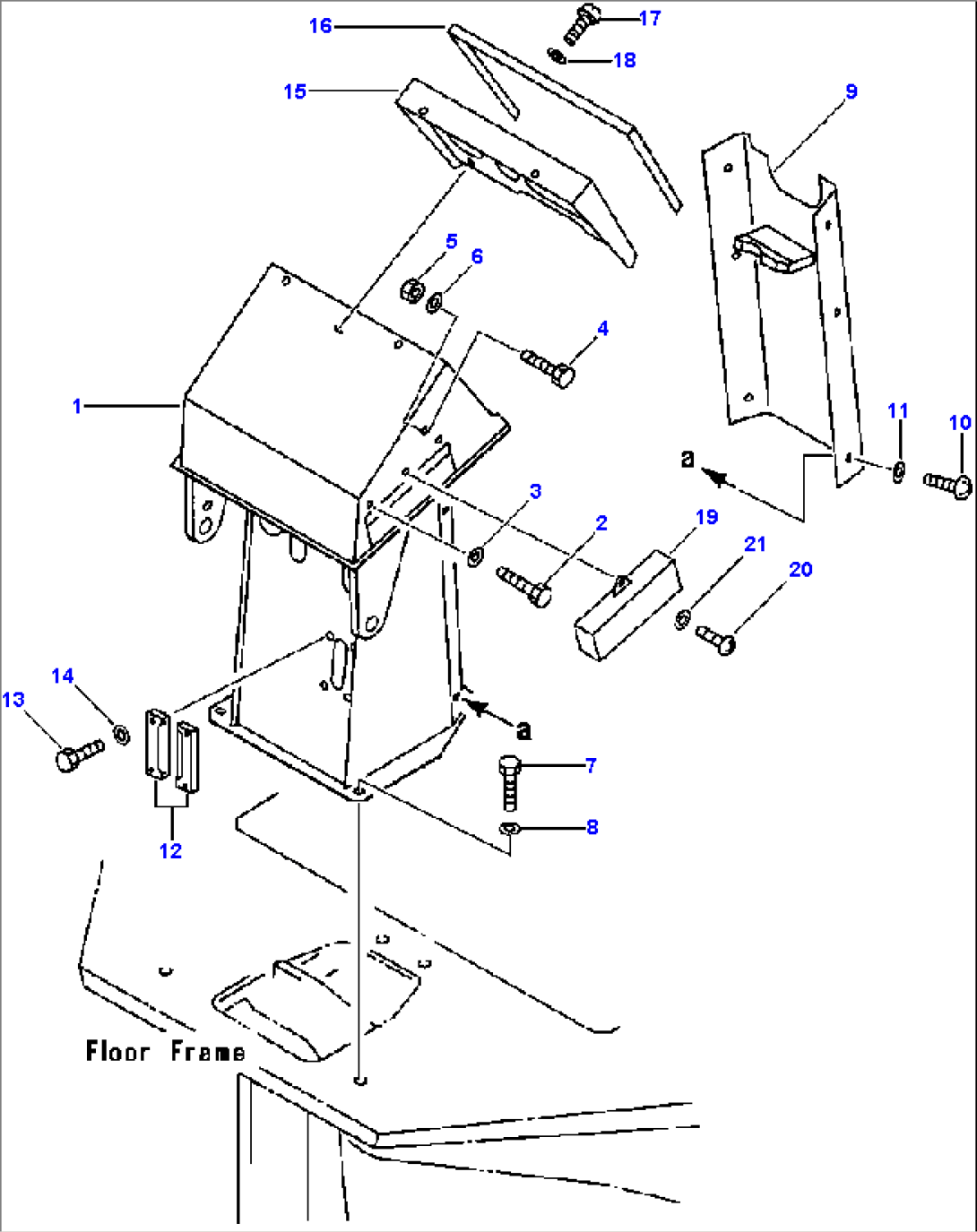

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-54-12610 | BOX, INSTRUMENT PANEL | ||
| 416-54-12430 | SHEET | |||
| 416-54-12440 | SHEET | |||
| 416-54-12460 | SHEET | |||
| 1 | BOX, INSTRUMENT PANEL (SEE PG 05-016) | |||
| 2 | 01010-51020 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 01010-50610 | BOLT | ||
| 5 | 01580-10605 | NUT | ||
| 6 | 01643-30623 | WASHER | ||
| 7 | 01010-51225 | BOLT | ||
| 8 | 01643-31232 | WASHER | ||
| 9 | 416-54-12420 | COVER | ||
| 416-54-12450 | SHEET | |||
| 10 | 416-54-A5160 | SCREW | ||
| 11 | 01643-30823 | WASHER | ||
| 12 | 417-54-12381 | COVER | ||
| 13 | 01010-50816 | BOLT | ||
| 14 | 01643-30823 | WASHER | ||
| 15 | 416-54-12510 | PANEL W/O AIR CONDITIONING - W/SPEEDOMETER | ||
| PANEL W/AIR CONDITIONING (SEE PG 05-106) | ||||
| 16 | 417-54-12322 | PROTECTOR | ||
| 17 | 416-54-A5160 | SCREW | ||
| 18 | 01643-30823 | WASHER | ||
| 19 | 417-54-12681 | COVER, FUSE BOX - W/O AIR CONDITIONING | ||
| 417-963-1960 | COVER, FUSE BOX - W/AIR CONDITIONING | |||
| 20 | 01232-00616 | SCREW | ||
| 21 | 01643-30623 | WASHER | ||
| F1 - FOR MACHINES NOT EQUIPPED WITH AIR CONDITIONING. | ||||
| F2 - FOR MACHINES EQUIPPED WITH AIR CONDITIONING. | ||||
