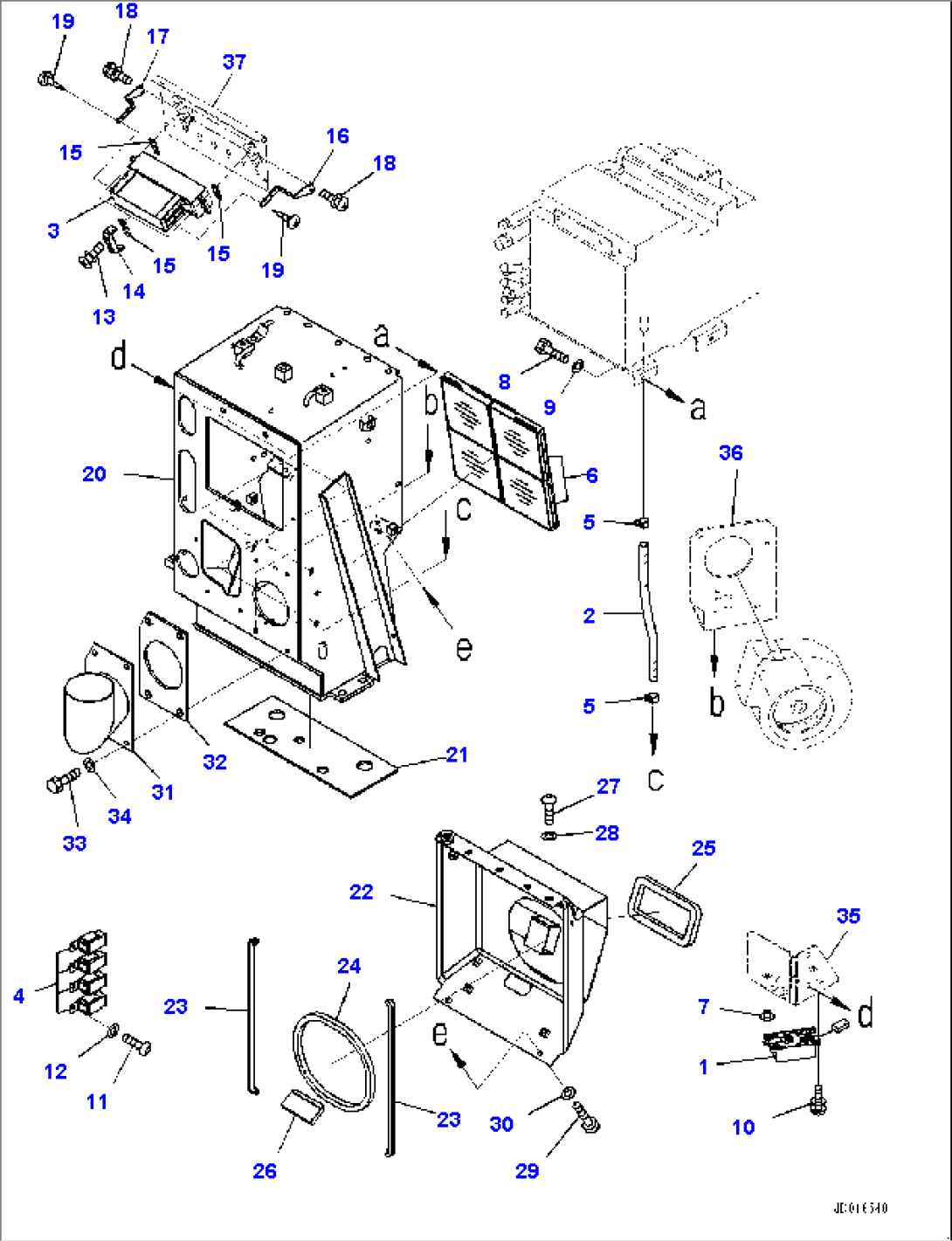

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-979-4850 | Motor | 11609- | |
| 2 | 17A-911-1321 | Hose | 11609- | |
| 3 | 421-07-31240 | Controller | 11609- | |
| 4 | 198-911-9240 | Relay Assembly | 11609- | |
| 5 | 14X-911-7690 | Clamp | 11609- | |
| 6 | 20Y-979-6261 | Filter | 11609- | |
| 7 | 17A-Z11-7450 | Bushing | 11609- | |
| 8 | 01010-80820 | Bolt | 11609- | |
| 9 | 01643-30823 | Washer | 11609- | |
| 10 | 01023-10516 | Screw | 11609- | |
| 11 | 01245-00612 | Screw | 11609- | |
| 12 | 01643-70623 | Washer | 11609- | |
| 13 | 01023-10535 | Screw | 11609- | |
| 14 | 17A-Z11-7861 | Bracket | 11609- | |
| 15 | 17A-Z11-7871 | Rubber | 11609- | |
| 16 | 17A-Z11-7891 | Plate, L.H. | 11609- | |
| 17 | 17A-Z11-7911 | Plate, R.H. | 11609- | |
| 18 | 01023-10516 | Screw | 11609- | |
| 19 | 01370-00410 | Screw | 11609- | |
| 20 | 154-Z11-2131 | Bracket | 11609- | |
| 21 | 17A-Z11-7580 | Sheet | 11609- | |
| 22 | 17A-Z11-7220 | Cover | 11609- | |
| 23 | 17A-Z11-7370 | Sheet | 11609- | |
| 24 | 198-911-9260 | Sheet | 11609- | |
| 25 | 17A-Z11-7630 | Sheet | 11609- | |
| 26 | 17A-Z11-7621 | Sheet | 11609- | |
| 27 | 01245-00816 | Screw | 11609- | |
| 28 | 01643-70823 | Washer | 11609- | |
| 29 | 01010-81025 | Bolt | 11609- | |
| 30 | 01643-31032 | Washer | 11609- | |
| 31 | 17A-Z11-7230 | Duct | 11609- | |
| 32 | 17A-Z11-7430 | Sheet | 11609- | |
| 33 | 01010-80820 | Bolt | 11609- | |
| 34 | 01643-30823 | Washer | 11609- | |
| 35 | (17A-Z11-7290) | Bracket | - | |
| 36 | (154-Z11-2121) | Bracket | - | |
| 37 | (154-Z11-7221) | Cover | - |
